Flo-Wall® - Infiltration and Insulation System

Solutions for Vertical Infiltration

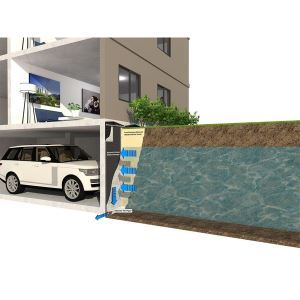

The Atlantis Vertical Drainage system is perfect for controlling water seepage, ideal for underground car parks, basements, retaining walls, seepage cutoff trenches providing hydro-static pressure relief.

Our Flo-Wall product is a durable wall drain which solves many existing problems in modern architecture.

The Flo-wall® range consists of prefabricated products wrapped in a high quality Italian geotextile, with hydrophilic properties that guarantee effective drainage that does not require stress to function. Each Flo-wall® has a small excess of geotextile that allows the overlapping of the panels, in this way the connection between each panel can be perfectly sealed.

Recycled Polypropylene Cells:

Flo-wall® panels are rigid, hollow, three-dimensional recycled polypropylene cells highly resistant to compression, they can be easily connected to each other to achieve the length that is required for the project.

System Qualities

Rapid Drainage

The Atlantis Flo-Wall® range is ideal for the rapid drainage of saturated ground. The Flo-Wall® range is suited for applications including underground car parks, basements, retaining walls and seepage cut-off trenches.

High Strength

The Atlantis Flo-Wall® range features high compressive strength that will not crush over time ensuring long term drainage performance.

Hydrophilic Geotextile

The Flo-Wall® range are prefabricated products wrapped with a high quality Italian made geotextile with hydrophilic properties for effective drainage that does not require a head of pressure to perform.

Unlimited Length

The Atlantis Flo-Wall® range can be easily connected together to form the lengths required for the project. Each Flo-Wall® is provided with an overlap allowance of geotextile to allow each connection to be appropriately sealed with tape.

Mulitple Applications

The Flo-Wall® range is suitable for retaining walls, foundation walls, basements, underground carparks, bridge abutments, civil structures, tunnels and anywhere hydrostatic pressure relief is required.

Perfect Solution For Leak Control

The Atlantis Flo-wall® product range is ideal for rapid drainage of saturated walls.

This vertical drainage system has a high compressive strength that is not diminished over time, ensuring effective long-term drainage performance. It is inexpensive, lightweight, easily transportable, and easy to install.

Flo Wall is perfect for water leak control, ideal for underground parking garages, basements, retaining walls, trenches, stop leaks and for hydrostatic pressure relief. The Flo-Cell® is also designed for Sustainable Urban Water Design (WSUD) applications and provides an ideal solution to increase the permeability of surface areas by reducing flow over the ground, facilitating recharge. of groundwater.

High flowGreat Resistance

The product saves time and labour costs, as it can be installed by one person quickly, intuitively and efficiently.

Main Applications

  • Retaining walls
  • Foundation walls
  • Basements
  • Underground parking
  • Bridge abutments and abutments
  • Civil works
  • Tunnels in areas that require hydrostatic pressure relief

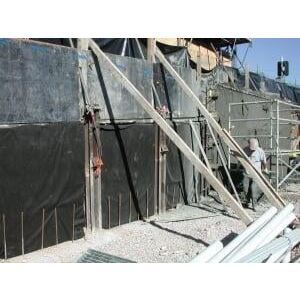

Installing Atlantis Wall Panels

The product is easily installed by one person and rigid enough to easily place and fix on the wall in seconds.

Applying Shotcrete

The product is ideal for shotcreting saving time and labour costs through rapid installation and thereby reducing labour requirements.


See More


Specifications

Atlantis Vertical Drainage Wall Panels Specifications
Part Number1121210519104241041810412
Width1200 mm260 mm400 mm400 mm400 mm
Height1200 mm1920 mm2400 mm1800 mm1200 mm
Thickness30 mm52 mm30 mm30 mm30 mm
Weight4.47 kg2.6 kg2.98 kg2.24 kg1.49kg
Flow Rate533 L/m267 L/m178 L/m178 L/m178 L/m
GeotextileHydrophillic Non Woven Geotextile (As per Atlantis Specifications)
Core Material85% Recycled PP, 15% Propriety Materials
Void Ratio90% void
Biological ResistanceNot affected by biological activity
Chemical ResistanceExcellent resistance to, Acids, Alcohols, Bases and Mineral Oils.
Good resistance to Aliphatic Hydrocarbons, Ketones and Vegetable Oils.
Service Temperature-10ºC to 70ºC, (140 F to 1580 F)
