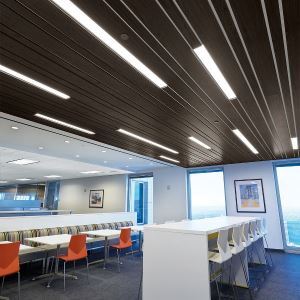

Armstrong World Industries, Inc. -METALWORKS Linear - Classics: 8122

Durable, metal panels in more widths for a variety of flexible and unique acoustical and interior/exterior solutions.

Category: acoustical ceiling suspension assemblies | commercial ceilings | impact resistant ceilings...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Ceiling Suspension Assemblies...

Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

Overview

METALWORKS Linear - Classics: 8122

Durable, metal panels in more widths for a variety of flexible and unique acoustical and interior/exterior solutions.

Performance

New universal suspensions system will enable easy installation and a clean finished visual
Nominal 2", 4", 6", 8", 10", and 12" wide panels, including nominal 1" reveal
Discontinuous ceilings possible with Effects trim or AXIOM trim, using the new adjustable Trim Clip
Mix and match widths for a striated visual
Install in the ceiling, on the wall
Create 90º angled or curved ceiling-to-wall transitions
Available for exterior applications, tested to meet wind uplift Classes 30, 60, and 90
Acoustical options with microperforated panels
Fast and easy installation

Specifications

Edge	Dimensions	Perforation

Square with extended flange 15/16 in	10 in x 96 in x 5/8 in	M1 - Unperforated

Performance

Acoustics
% Open Area	0%
Fire
Fire Performance	Class A
Light Reflectance	77%
Durability	Soil Resistance Impact Resistance Washability Scrubbability
Special Applications	Library Exterior

Physical Data

Material	Metal
Texture	Smooth
Surface Finish	Factory-applied powder coated finish
Shape	Plank
Weight	1.61 PF2
Sq Ft (Sq Ft / Carton)	53.33
Pieces / Carton	8
Installation Method	Suspended (no Grid)
