Armstrong World Industries, Inc. -SILHOUETTE XL 9/16" Bolt Slot - 1/4" Reveal: XL7645

DOWNLOADS

Sophisticated slotted 9/16" suspension system with a narrow 1/4" reveal.


Category: acoustic ceiling baffles | commercial ceilings | impact resistant ceilings...

MasterFormat: Ceilings | Acoustical Panel Ceilings | Acoustical Tile Ceilings...


View Product Details From Manufacturer


Armstrong World Industries, Inc.
P.O. Box 3001
Lancaster, PA 17604
Tel: (717) 397-0611

techline@armstrongceilings.com

https://www.armstrongceilings.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

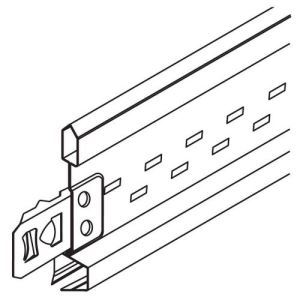

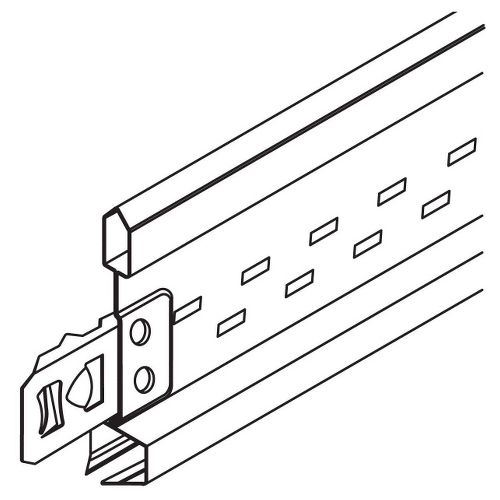

SILHOUETTE XL 9/16" Bolt Slot - 1/4" Reveal: XL7645

Sophisticated slotted 9/16" suspension system with a narrow 1/4" reveal.

  • Face Profile: 9/16"
  • Profile Type: Bolt-Slot
  • Component Type: Cross Tee
  • Description: 4' Cross Tee 1/4" Reveal - Center Notched both Side


See More


Specifications

Blizzard WhiteCharcoal BlackWhite
Hanger Spacing 4' - 12.85plf
Disinfectability
Fog
Spray
Wipe
Material Hot-dipped Galvanized Steel
Rout/Slot Spacing and UOM Center notched
Cross Tee/Main Beam Interface Mitered
End Detail Staked-on clip (XL)
Feet (Ft / Carton) 240
Pieces / Carton 60
Length 48"
Face Profile 9/16"
Height 1-3/4"
Profile Type Bolt-Slot
Component Type Cross Tee
