Advance Lifts, Inc. -Electric Work Station Lifts

DOWNLOADS

ELECTRIC PERSONNEL LIFT SERIES

These electric platform lifts are designed to move personnel up to optimal ergonomic working heights. Electric work station lifts are powered by an IP 65 electric actuator which is suitable for light wash down applications.


Category: electric lifts | industrial lifts | manlifts...

MasterFormat: Lifts | People Lifts | Piece Material Handling Equipment...



Advance Lifts, Inc.
701 S. Kirk Road
St. Charles, IL 60174
Tel: (800) 843-3625
Fax: (630) 584-9405

sales@advancelifts.com

https://www.advancelifts.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Electric Work Station Lifts

ELECTRIC PERSONNEL LIFT SERIES

These electric platform lifts are designed to move personnel up to optimal ergonomic working heights. Electric work station lifts are powered by an IP 65 electric actuator which is suitable for light wash down applications. Other sizes and travels are optional. Inquire about our electric personnel lifts for sale today!

SPECIAL FEATURES

  • No hydraulics
  • Nema 1 controls (Nema 4 is available)
  • IP 65 rated actuator with 10% duty cycle
  • Baked enamel finish with smooth deck
    (safety tread, stainless steel/Steel-It are optional)

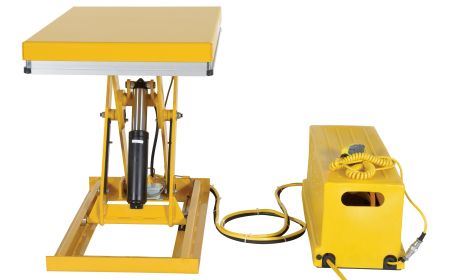

ELECTRIC BOX LIFT SERIES

These lifts are designed to move work objects to convenient working heights. Since there are no hydraulics, installation is simply lagging the lift in place and plugging it into an outlet.

SPECIAL FEATURES

  • No hydraulics
  • Nema 1 footswitch
  • IP 65 rated actuator with 10% duty cycle
  • Baked enamel finish with smooth deck


See More


Specifications

SPECIFICATION TABLE ELECTRIC BOX LIFT SERIES:
PlatformLoweredRaisedSpeedShip
ModelCapacitySizeHeightTravelHeight(Sec)VoltageWeight
AEBL-100-181002′ x 4′24″ 18″42″14115/1300
AEBL-300-183002′ x 4′24″18″42″14115/1300
AEBL-500-185002′ x 4′24″18″42″14115/1300
AEBL-1000-1810002′ x 4′24″18″42″54115/1300
SPECIFICATION TABLE ELECTRIC PERSONNEL LIFT SERIES:
PlatformLoweredRaisedSpeedShip
ModelCapacitySizeHeightTravelHeight(Sec)VoltageWeight
EPL-300-123002′ x 4′4.25″12″16.25″8115/1325
EPL-500-125003′ x 6′4.25″12″16.25″14115/1525
