ASSA ABLOY SW60 Swing Door Operator

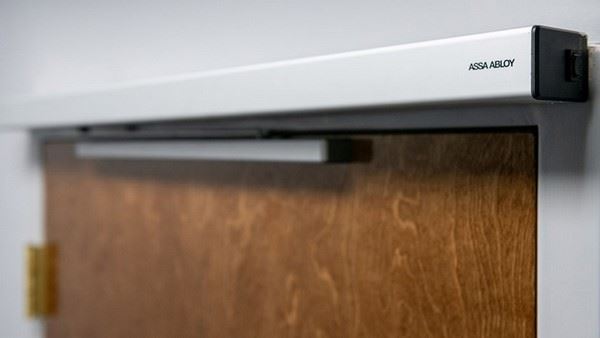

ASSA ABLOY SW60 swing door operator - the new reality in low profile automatic door operators.

The ASSA ABLOY SW60 is the newest innovation in door technology. The SW60 is aesthetically appealing with a sleek design and ability to fit in spaces with limited overhead space. With its slim profile, app compatibility and quick install time, the SW60 offers tremendous functionality and flexibility when it comes to converting existing manual doors to automatic.

The SW60 features a low profile automatic door operator with impressive features such as free swing, push & go and ratchet function. The operator can be integrated with electric strikes, door mounted presence sensors (approach side only) or touchless activation units.

This operator is the perfect choice for indoor applications for single doors such as restrooms, offices, senior care or public buildings.

Safety compliance

The ASSA ABLOY SW100 swing door operator complies with ANSI A156.19

ASSA ABLOY SW60

• Product ID: SW60
• Low profile appearance: 1-7/8” high by 2 3/8” deep
• 39.5” Header
• Max weight: 200lbs
• Max width: 48”
• Non-handed
• Interior doors / single applications
• ANSI compliance: A156.19
• Push or pull application
• Clear or dark bronze anodized finish
• Electric strike integration
• Integration with door mounted presence devices for safety (approach side only)
• Touchless wave plate compatibility
• Time delay cancellation, door parking, ratchet function
• Quick install, no electrician required
• Mobile app compatibility (ASSA ABLOY Swing Door Manager)
