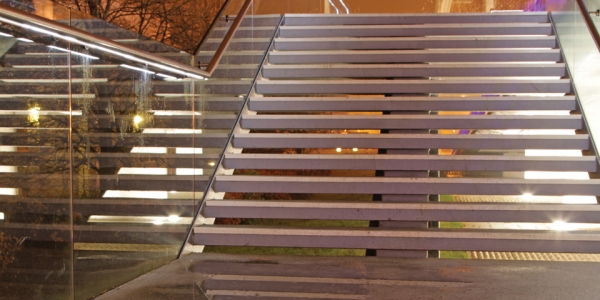

iRAIL™ Railing System

iRAIL™ - LED illuminated rails is a lighted version of our 1.5” dia. Rail, use with any of our systems for handrail, toprail or wall rail applications. iRAIL uses a ADA compliant roll formed (monolithic) slotted rail, that houses a high performance LED assembly.

VIVA iRAIL™ uses a specially designed LED that can be provides full length coverage of illumination for whatever your rail run may be, compared to the traditional LED assemblies that were only available in preset section lengths.

Lighting is available in bright clear or milky diffused.

iRAIL™ LED (light-emitting diode) provides a sustainable and GREEN alternative to conventional lighting methods, due to its high service life, high lighting intensity and low power consumption. iRAIL™ LED uses low voltage DC power supply.

VIVA iRAIL™ Railing System is designed and engineered as per the ASTM E985 and IBC 2006 standards.

iRail uses ingeniously designed water resistant high output cool white LED strips.

Features

• iRail LED: 5000K - 5500K Cool White LED molded in aluminum casing
• LED Output: 95 lumens/ft
• LED Lens: Translucent or Opaque
• LED Life: 50,000 hours
• Rail: 1.5” Diameter Stainless Steel Slotted tube
• Finish: #6 (380 Grit) Brushed Satin

• Wall Mounted Rail
• Posted Mounted Handrail (available with any of the VIVA systems CIRCA, BLADE, CUBE etc.)
• Free Standing Handrail (no in-fill)

• Available in 60w, 100w, 150w, 300w, & 350w capable of driving 50' continuous iRail run
• Input: 100-120 VAC, 0.8A / 200-240 VAC, 0.45A
• Output: 24V / 1.5A
