CASTLETOP
Diamond Shaped Metal Shingle

ATAS International, Inc.

Corporate Headquarters:
Allentown, PA
Western Facility:
Mesa, AZ
Southern Facility:
Maryville, TN

Toll-Free: (800) 468-1441
Tel: (610) 395-8445
Fax: (610) 395-9342
E-mail: info@atas.com
Web site: http://www.atas.com

Product Presentation

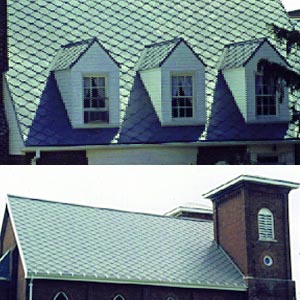

CASTLETOP, a diamond shaped simulated shingle, lends an exceptional appearance to both residential and commercial buildings. Manufactured from copper, zinc or aluminum, this lightweight yet durable metal shingle is ideal for re-roofing applications as well as new construction.

CASTLETOP shingles have a turned down edge on the front and a turned up edge on the back that provides double sealed protection. Additionally, its overlapping design allows for contraction and expansion caused by temperature fluctuations.

Sizes and Profiles:

CASTLETOP diamond shaped shingles measure 15-3/4” by 15-3/4”. Actual exposure is 14” by 14”. There are 78 shingles per 100 square feet.

Composition and Materials:

CASTLETOP shingles are manufactured from .032 Aluminum, 16 oz. Copper or .028 weathered Zinc. An expanded polystyrene backer board gives strength to the shingle to allow for foot traffic during installation.

Color and Finish:

Aluminum shingles are available in a choice of 27 colors with a Kynar 500® or Hylar 5000® based finish. (Request color chart or chips.) Copper and zinc shingles have a natural finish.

Specifications

Note to specifiers: CASTLETOP shingles serve the architectural needs of roofing, fascia and mansard systems. For detailed product specifications in a 3-part standard format visit our web site at www.atas.com

Technical Data

Paint Finish
a Kynar 500® or Hylar 5000® based paint system
Tested by PPG Industries for:

Dry Film Thickness (Nominal): ASTM D-1400-94, D-1005-95, ASTM D 4138 or ASTM D 5796, Eddy current device or micrometer
Consists of 0.2 ± 0.05 mil primer on both sides with 0.8 ± 0.1 mil 70% PVDF topcoat.

Gloss: ASTM D523-89 at 60°
Standard shall have a gloss of 30 ±.

Pencil Hardness: ASTM D-3363-92a Eagle Turquoise Drafting Lead
HB-H

Formability T-Bend: ASTM D- 4145-96
No cracking or tape removal of film at 1-T bend (aluminum); 2-T bend (coated steel).

Formability Mandrel: ASTM D-522-93a 180° Bend around 1/8” mandrel
No cracking

Adhesion: ASTM D-3359-95a Rev. impacted 1/16” crosshatch
No adhesion loss

Reverse Impact: ASTM D-2794-93 Impact in in./lb. = 1,500 x metal thickness in inches (aluminum) or 3000 x metal thickness in inches (coated steel)
No cracking or adhesion loss

Abrasion Resistance, Falling Sand Test: ASTM D-968-93 Liters to expose 5/32” of substrate
50 to 80 liters

Abrasion Resistance, Transit: proprietary procedure, Panels Tested Face-to-Back
No disfigurement

Mortar Resistance: AAMA 2605.92, Test #7.7.2 24 hour Pat Test
No effect

Detergent Resistance: ASTM D-2248-93 3% DET., 100° F, 72 hrs. immersion
No effect

Graffiti Resistance: Cleanability of Defaced Panels, spray paint, various marking pens
No disfigurement after cleaning.

Acid Pollutants Resistance: ASTM D-1308-87 10% muriatic acid, 15 min.
No effect

20% sulfuric acid, 18 hrs.
No effect

AAMA 2605-92, Test #7.7.3.1 70% nitric acid vapors, 30 mins.
<5 units color change.

Acid Rain Resistance Test: Kesternich Sulfur dioxide cyclic test
10 cycles minimum; no objectionable color change

Alkali Resistance: ASTM D-1308-93, 25% sodium hydroxide, 1 hr.
No effect

Salt Fog: ASTM B 117-95 5% Salt Fog at 95° F
Passes 3,000 hours (aluminum) with less than 1/16” maximum average creepage from scribe; passes 1,000 hours (coated steel) with less than 1/8” maximum average creepage from scribe.

Humidity Test: ASTM D-2247-94/D-714-94 100% Relative Humidity at 95° F
Passes 3,000 hours (aluminum) with no blisters; Passes 1,500 hours (coated steel) with no blisters.

Color Retention, Weatherometer Test: ASTM D-822-96, G23-93, G26-90, G53-93
Passes 5,000 hours, no objectionable chalking, color change or adhesion loss.

Color Retention, Florida Exposure: ASTM D-2244-93 Florida exposure: 10 years at 45° S.
Maximum 5 units change.

Chalking Resistance: ASTM D-4214-89, Test Method D 659 Florida exposure: 10 years at 45° S.
Maximum rating of 8.

Panel testing/ratings:
ICBO Approval 5235
PA 100-95
Field Tested and Approved
Uplift: UL 1897
Fire Resistance: UL790/ASTM E 108
Impact Resistance: UL2218
Penetration: ICC ES ACC 166, Par 4.2
Florida Product Approval: FL2905-R1
ASTM B 209
ASTM B 370
EN 988
ASTM A 755

Warranty

CASTLETOP diamond shaped shingles carry a thirty (30) year limited warranty.

Availability and Cost

CASTLETOP tiles are available through ATAS product distributors. A complete line of accessories in matching or coordinating colors is available to complete a project. Valleys, Ridge Caps, Gable and Eave trims are formed to customer specifications. Ridge Caps, Soffit or other Trim Designs can be lanced for ventilation. Coil stock or flat sheet can be provided for field fabrication of custom flashings.

Cost:
Contact ATAS product distributors for cost.

Installation

CASTLETOP shingles are installed similar to traditional shingles. The shingles have a turned down edge on the front and a turned up edge on the back for double sealing protection. A concealed fastening system is used. Different colors may be combined to create interesting patterns. Installation manuals or hands-on training through seminars are available. Contact ATAS technical service advisors for information.

Maintenance

CASTLETOP shingles are virtually maintenance free. The high quality finish will not fade, chalk, crack or peel, and since the substrate is metal, the shingle will not warp, rot or break. Surface residue may be easily removed by conventional cleaning methods. Minor scratches may be touched up with a matching paint, available from the manufacturer.

Technical Services

Complete technical information and literature is available from ATAS International, Inc. ATAS will assist with design ideas and estimates and offers shop-drawing services.

Kynar 500® is a registered trademark of Elf Atochem North America, Inc.
Hylar 5000® is a registered trademark of Ausimont USA, Inc.
