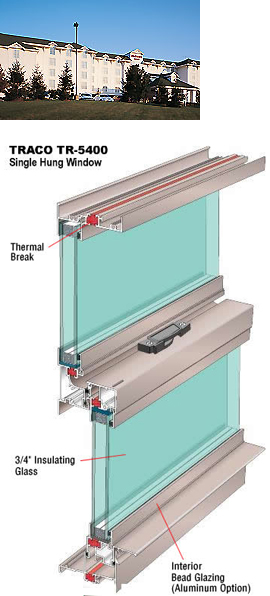

TR-5400 (H-C35)
Single Hung Tilt Commercial Thermal Aluminum Window

TR-7400 Fixed

Standard Features
  • Tilt-in bottom sash
  • Sloped sill
  • Thermal break frame and sash
  • 0.062" typical wall thickness for frame and sash.
  • Standard equal leg frame to accept panning, trim and clip.
  • 2-3/4" frame depth
  • 3/4" insulating glass with 1/8" lites
  • Drop-in glazing
  • Inside glazed
  • Standard PVC glazing bead
  • Sweep lock
  • Internal weep system.
Options
  • 1-1/8" nailing fin frame
  • 1-1/2" flange frame)
  • Strap anchor
  • Integral mullion for unitized frames
  • Aluminum glazing bead
  • Automatic snap lock
  • Colonial internal muntin
    (between glass)
  • Aluminum roll-frame half screen
  • Aluminum extruded screen frame
  • Aluminum mesh option
  • Fiberglass mesh
  • Applied muntins
