Security • Traffic Control • Portable
- Quick and easy installation. Installs between two walls instantly without anchors to walls or floor
- Simplified, patented pressure lock system
- Floor anchors are not required but are available for special installations
- Compact, fold-up size and heavy duty swivel casters make moving and storage easy
- Electrogalvanized finish
- Padlock hasp is standard
- Cylinder locks are available for additional security
- Two or more gates can be joined together for large expanse

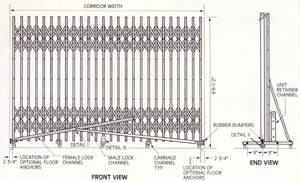

Here's how the exclusive Superior® Pressure Lock System works
- Raise unit retainer channel to vertical position and secure
- Extend gate until rubber bumpers touch both walls
- Lower the male lock channel (with pin) until it rests on carriage channels within guides and locking bracket.
- Lower female lock channel (with adjustment holes) until it rests within the male lock channel with pin. Pin need not engage a hole in female lock channel.
- Raise both channels until pin engages the hole immediately to the right. Applying moderate pressure, push both channels down until they rest within guides and locking bracket. Lock in position.
Five sizes to accommodate 3'6" wide to 18'0" wide conditions. Connect multiple gates together for wider applications.
Model |
For Corridors |
Collapsed Size |
Height |
Weight (lb.) |
P601-6 |
3'-6" to
6'-0" |
19"x30" |
6' to
6-1/2" |
193 |
P601-9 |
6'-0" to
9'-0" |
19"x30" |
6' to
6-1/2" |
197 |
P601-12 |
7'-0" to 12'-0" |
24"x30" |
6'- to
6-1/2" |
254 |
P601-15 |
11'-0" to 15'-0" |
30"x30" |
6'- to
6-1/2" |
311 |
P601-18 |
13'-0" to 18'-0" |
30"x30" |
6'- to
6-1/2" |
374 |
Superior® Portable Gates are perfect for:
- Schools
- Hospitals
- Shopping Malls
- Office Buildings
- Recreation Centers
- Financial Institutions
- Factories
- Theaters
- Libraries
- Museums
|
