CONTROL JOINTS – WEEP HOLES

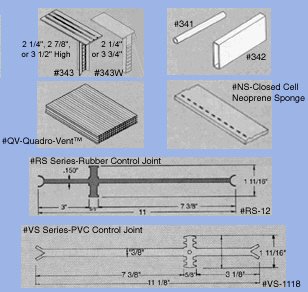

# RS Series – Rubber Control Joint
  • Extruded rubber material designed to provide lateral stability to masonry walls at expansion and control joints.
  • Rubber material conforms to ASTM D-2000 2AA-805 with a durometer hardness of 80 (±5) when tested in conformance with ASTM-2240.
  • Length per piece is 4 ft.

# VS Series – PVC Control Joint

  • The VS Series is a complete line of polyvinyl chloride control joints suitable for various wall conditions. The PVC material conforms to ASTM D-2287 (Type PVC 654-4) with a durometer hardness of 85 (+ or -5) when tested in conformance with ASTM D-2240.
  • Length per piece is 4 ft.

# NS – Closed Cell Neoprene Sponge

  • Available in 1/4 in., 3/8 in. or 1/2 in. thickness (others also available).
  • Standard width is 3 in. Other widths cut on request.
  • Available with adhesive backing.
  • Available with tear-strip upon special request.
  • Conforms to ASTM D-1056 Class RE41.

For placing horizontally beneath relieving angle or in the vertical expansion joint to act as a control joint. Also prevents clogging of expansion joint with mortar.

#341 & 342 Plastic Weep Holes

Round: medium density polyethylene (white).

  • 1/4 in. O.D. x 4 in. long.
  • 3/8 in. O.D. x 4 in. long.

3/8 in. O.D. size available with optional mesh screen (stainless steel or brass) and/or cotton wick.

Rectangular: Clear butyrate.

  • 3/8 in. x 1 1/2 in. x 3 1/2 in.

#343 Louvered Weep Hole
#343W - Wilko™ Weep Hole

  • Injection-molded flexible PVC (#343)/painted aluminum (#343W).
  • Configuration of louvers directs passage of water from cavity to outside of building, while preventing reverse passage of water.
  • Design permits air passage into cavity, thus aiding pressure equalization and reducing suction which can cause water penetration.
  • Rectangular closure strip prevents mortar droppings from clogging openings (#343).
  • Compressible flanges can accommodate joint widths of 1/2 in. – 3/4 in. (#343).
  • #343 available in gray only. #343W: Gray or white.

# QV – Quadro-Vent™

  • Quadro-Vent's honeycomb design allows passage of moisture from cavity to the building exterior while restricting ingress of insects and other debris.
  • Quadro-Vent allows passage of moisture up to its 2 1/2 in. height, important in the event of mortar droppings at bottom of cavity.
  • Polypropylene tested in conformance with ASTM D2240, D790B, D638 and D1238B.
  • Available in gray or white.
