COLUMN AND BEAM ANCHORS

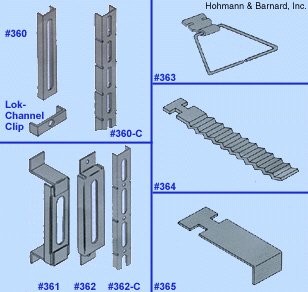

#360 & #360-C – Gripstay Channels

Mill galv./hot galv./stainless steel.
Available 16 ga., 14 ga., 12 ga. or 11 ga. thick.
Length of #360 is 7 1/2 in. (5 1/2 in. vertical adjustability).
#360-C is a continuous Gripstay Channel, standard length is 5 ft. Other lengths available in 7 1/2 in. increments (Example: 15 in., 22 1/2 in., 30 in., etc.).

Lok-Channel Clips allow attachment to masonry (as shown).

#360 & #360-C are welded onto structural steel and accept H & B Gripstay Anchors for masonry or stone. #360-C can also be attached to a masonry backup using H & B's Lok-Channel Clips and H & B's Expansion Bolts.

#361, #362 & #362-C – Gripstay Channels

Mill galv./hot galv./stainless steel.
Available 16 ga., 14 ga., 12 ga. or 11 ga. thick.
#361 furnished with welded straps for embedment into block backup.
#362-C is a continuous channel with 5/16 in. holes between slots for attachment to concrete, masonry or steel stud.

#363 – Flexible Gripstay Anchor

Mill galv./hot galv./stainless steel.
Gripstay end available 16 ga., 14 ga., or 12 ga. thick.
Vee Wall Tie is 3/16 in. dia. x 3 in., 3 1/2 in., 4 in., 4 1/2 in., 5 in., 7 in. or 9 in.
Other sizes upon request.

Permits horizontal and vertical movement of the masonry wall while restraining the wall from moving laterally out of its plane.

#363-BT is fitted with a Byna-Tie^® in lieu of a conventional Vee Wall Tie.

#364 – Corrugated Gripstay Anchor

Mill galv./hot galv./stainless steel.
1 1/4 in. wide x 16 ga., 14 ga. or 12 ga. thick.
Available in any length (length taken from face of channel).

Gripstay Head fits any style H & B Gripstay Channel (tying masonry to steel columns, concrete or existing walls).

#365 – Bent Gripstay Anchor

Same availability and use as #364 Anchor (see above).
#365 has standard 1 in. bend. Longer bend available upon request.
