DW-10® SERIES VENEER ANCHORS FOR DRYWALL CONSTRUCTION WITH METAL STUDS

The DW-10 anchoring system was developed by HOHMANN & BARNARD as the first and foremost positive, mechanical anchoring system for masonry veneer / metal stud construction. Its outstanding performance characteristics make the DW-10 today's most widely specified and utilized anchoring system for masonry veneer / metal stud construction. Due to the DW-10's variety of designs, sizes and finishes, it can be used to meet the most complex building requirements. Architect, owner and contractor can be confident when specifying and using this superior product.

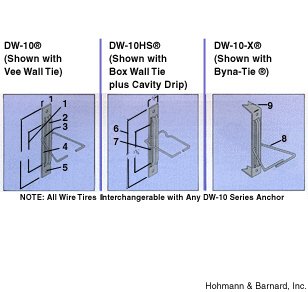

Performance Features
  1. Offers maximum vertical adjustability, reducing layout time to a minimum, while always ensuring full engagement and performance of masonry wire tie. Design eliminates eccentric loading. 100% protection against separation of wire tie from anchor.
  2. "V"-shaped indentation on projecting bar of anchor for added structural strength.
  3. Anchor design allows masonry veneer to move vertically and laterally in its own plane. (A system that does not allow for movement due to temperature variations, shrinkage, deflection or other stresses will be inviting cracks in the masonry veneer.) While this movement is desirable, in and out movement should be negligible. This positive and negative resistance is accomplished by the DW-10's backplate and projecting "V-BAR" and back plate: to accommodate 3/16 in. or 1/4 in. dia. wire tie.
  4. Backplate prevents crushing of insulation or wall board by masonry wire tie. Pressure from positive loads is distributed along backplate of all DW-10 series anchors. No pinpoint loading!
  5. Top and bottom of anchor are screwed to metal stud for added strength, and advantage over single-screw systems.
  6. DW-10HS® and DW-10-X® have new shorter design for higher strength.
  7. DW-10HS® and DW-10-X® have a ribbed design on backplate for added structural strength.
  8. BYNA-TIE® has parallel, overlapping legs, designed for use with the SEISMICLIP® INTERLOCK SYSTEM. It can also be used as a conventional wire tie.

U.S. PAT. NO. 4,021,990
U.S. PAT. NO. 4,598,518
CAN. PAT. NO. 1,099,944
CAN. PAT. NO. 1,247,396
OTHER PATS. PENDING

The DW-10-X® BYNA-TIE® and SEISMICLIP® Interlock System have been tested and evaluated for use in Seismic Zones 3 & 4 in accordance with ICBO guidelines. See ICBO Evaluation Service, Inc. Evaluation Report No. 4882 for allowable values and/or conditions of use concerning material presented in this document.
