Concealed Fastener Wall Panel Systems

CENTRIA IW-Series panels combine concealed fasteners with a wide range of design options for field-assembled wall systems. They provide a weather-resistant wall with an aesthetically pleasing 'monolithic" appearance. IW-Series panels are available for insulated or uninsulated applications. When insulated, the panel includes an exterior facing an interior liner. IW-10A, IW-40A, and IW-60A panels can be installed horizontally with certain restrictions, if desired. Please consult CENTRIA for details.
FEATURES

No exposed panel fasteners
Cost effective, with a clean, unbroken appearance
Strong steel panels in various gages permit designs for different span requirements
Excellent for new construction and retrofit projects
Lengths to 30"-0"
Stucco-embossed or smooth finishes available

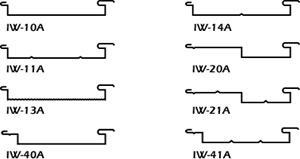

IW-10A
12' o.c., profile is flush. Embossing recommended. Beads standard on IW-11A and IW-14A. Striations standard on IW-13A.

IW-20A
Stepped profile of the 20A creates a deep ribbed shadow pattern (6" high, 6" low).

IW-30A
The 30A profile alternates a 10" wide flush plane with a 2" wide recessed rib to create the appearance of widely spaced vertical flutes. Beads standard on IW-31A.

IW-40A
The 40A profile alternates a 11" wide flush plane with a 1" wide recessed rib to create the appearance of widely spaced vertical flutes. Beads standard on IW-41A.

IW-60A
12" wide, 7/8" deep profile features three 4" ribs, strong box-like pattern.
