Metal Wall Panels

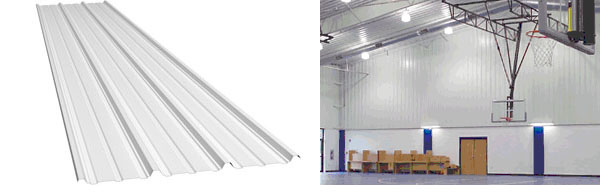

Panel Rib For economy, Panel Rib beats wood, concrete, or masonry alternatives. Self-drilling, color-matched fasteners and a 36" panel width give you rapid, economical installation. Panel Rib comes in lengths up to 41', which can provide a continuous panel from foundation to eave. This eliminates the need for end-laps and assures you of wall integrity and weather-tightness. These panels are available in 13 standard KXL finish colors and a variety of custom colors. 26 gauge is standard, but you also have the option of 22 or 24 gauge.
VP Liner Panel LPR-36 wall panels are 28 gauge and measure 36" wide. Liner Panel is an ASTM A653 Grade 33 steel with a zinc coating. The panel is painted with a white polyester finish on one side and a gray primer coating on the reverse.

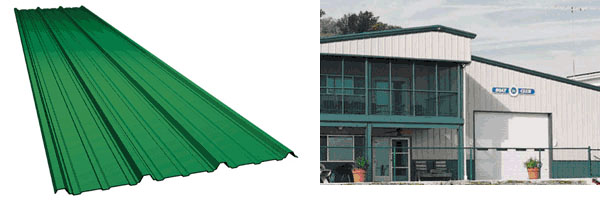

Stran-Lok Stran-Lok is more economical than concrete, masonry, or wood alternatives, yet provides an attractive architectural look. Panels are standard 24 gauge (22 gauge option) and come in lengths up to 30', providing a continuous wall panel from foundation to eave and eliminating the need for end-laps while assuring wall integrity and weather-tightness. Stran-Lok is available in 13 standard KXL finish colors and a variety of custom colors.

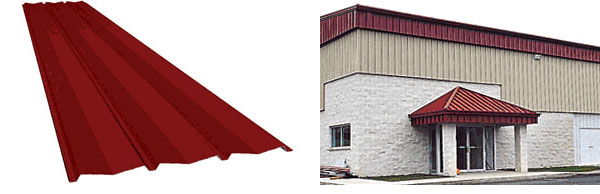

Vee Rib The Vee Rib wall panel features a V-groove pattern, semi-concealed fasteners located in the bottom of the groove, and 1-1/4" reveals. Its surface, embossed for esthetic appeal, reduces glare. Self-drilling fasteners and 36" panel width provide for economical installation. Vee Rib comes in lengths up to 39', which can provide a continuous panel from foundation to eave, eliminating the need for end-laps while assuring wall integrity and weather-tightness. The panel is available in 13 standard KXL finish colors and a variety of custom colors.

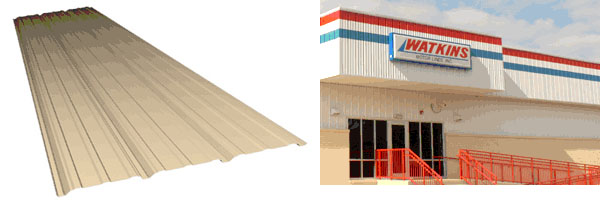

RPR Panel RPR Panel is a reverse-rolled version of our popular Panel Rib profile. This economical wall system features self-drilling, color-matched fasteners and a 36" panel width to provide fast and easy installation. The panel comes in lengths up to 41', which can provide a continuous panel from foundation to eave, eliminating the need for end-laps while assuring wall integrity and weather-tightness. The panel is available in 13 standard KXL finish colors and a variety of custom colors. RPR can effectively use up to 6' of blanket insulation, as well as up to 2-1/2" of rigid board insulation.

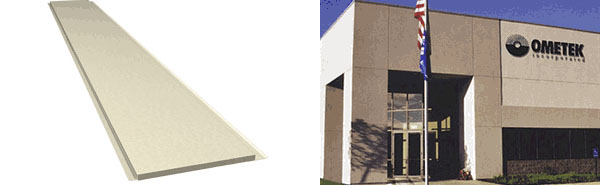

TextureClad TextureClad combines the rich look of textured stucco with the strength and durability of 20 gauge steel to create a lightweight, easy-to-install, exterior wall system. Panels are designed to meet the demands of local building ordinances where traditional metal wall panels are prohibited. Finish is resistant to water, cracking, flaking, chalking, and mildew and backed with a 20-year warranty. TextureClad panels can be attached directly to standard wall girts with up to 6" of batt insulation and also work great as a soffit.

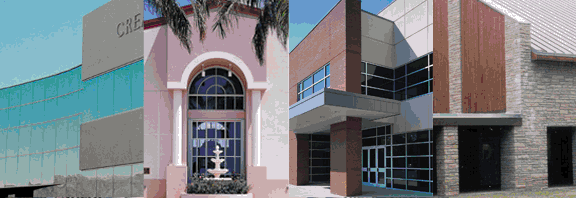

Alternative Exteriors VP has manufactured thousands of projects where the architect or owner preferred an alternative to exterior metal panels. To view examples of facilities with concrete, brick, stucco, glass curtain wall, wood, and stone exteriors, visit our Hall of Fame.
|
