Metal Roof Systems
SSR The SSR System is a low-slope, clip mounted standing seam roof that meets the most demanding performance specifications. These durable, low-maintenance panels are interlocked and mechanically field-seamed in place, yielding a single membrane allowing for quick construction and strength at a lower cost. The slotted clip allows up to 3 1/4" of thermal movement. SSR's patented ridge system seams together and provides a true expansion joint. Panels are available in either 22 or 24 gauge zinc aluminum coated steel with 3"-high ribs. Available in 6 colors plus base Galvalume™.
Minimizing heat escape where insulation is compressed over purlins or joists is one of the best ways to improve the thermal efficiency of a building. Better thermal efficiency means lower energy costs and lower life-cycle costs. VP's Thermal Block provides an economical way to improve thermal performance by reducing heat escape at contact areas over roof secondary. When thermal blocks are used along with 6" rolled fiberglass insulation, there is an improvement of 25% compared to systems where thermal blocks are not used. VP’s patented SuperBlock system for SSR is capable of delivering an ASTM-C236 Hot Box tested, in-place R-value of 22.8 with a non-reflective facing. If using a reflective facing, the R-value can be as high as 23.5. VP offers Tuf-Dome, a curbless domed skylight, or choose a zinc-coated aluminum skylight curb for use with the SSR roof system. VP's SSR Seamed Ridge system allows for a consistent look and efficient closure and protection at the apex of the roof.
SLR This architectural/structural roof system is a low-slope, concealed-fastener roof that meets most architectural performance specifications. Using factory-installed sealant, pre-caulked galvanized clips, and field-seaming, this roof system provides unsurpassed performance and leak resistance. Panels are available in 22 or 24 gauge Galvalume™ steel. The thermally responsive galvanized panel clip combines a 22 gauge hook and a 16 gauge clip.

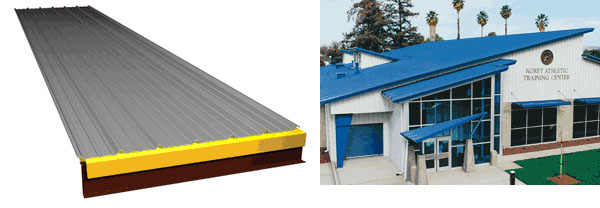

Panel Rib Roof This attractive, high-quality, low-maintenance roof is ideal for tight budgets. The 36"-wide panel is attached with self-drilling, color-matched fasteners. This system offers you enhanced roof integrity and quicker installation. Sealant is applied to every metal-to-metal contact point, resulting in a weather-resistant roof. The panel has 1-1/4" high ribs and comes in lengths up to 41'. Panels are available in either 24 or 26 gauge zinc aluminum coated steel.

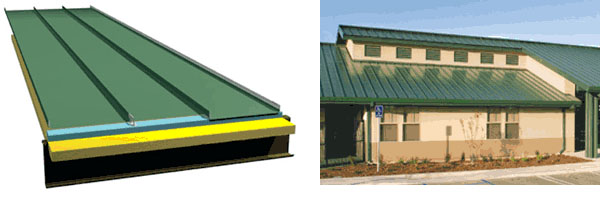

Snap Seal The Snap Seal Architectural Roof System is a high-performance, concealed-fastener, standing seam roof system that is both good-looking and durable. It offers a unique snap and seal joinery system for weather–resistance and is available in either 22 or 24 gauge Galvalume™ steel with 1-3/4"-high ribs and thermally responsive, galvanized 18 gauge panel clips.
|
