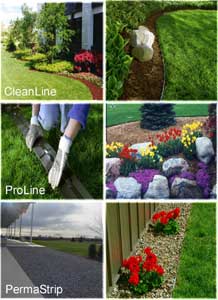

CLEANLINE™
CleanLine is a complete series of commercial grade aluminum landscape edging designed to function in professional landscapes. CleanLine is engineered to maximize design sustainability and provide long-term durability by withstanding the demands of professional lawn maintenance and volume pedestrian traffic. Our unique patented, stakeless connection system snaps down to permanently interlock adjacent edging sections – eliminating horizontal separation or possible weak points. Product includes heavy 12-inch, interlocking aluminum stakes that securely anchor it into the ground, providing long-term retention and ensuring that your designs will stand the test of time. CleanLine is available in 3, 4, and 5 ½ inch heights by 1/8 or 3/16 inch thickness. Finishes available are Mill (Natural), Black, Green, and Bronze.

PROLINE™
ProLine is a professional quality aluminum landscape edging designed for use in residential and light commercial landscapes. It incorporates many of the design features of our premium commercial products and is known for its quality, ease of installation, and long-term durability. ProLine is a superior alternative to plastic, steel and wood. ProLine is engineered to maximize design sustainability and provide long-term durability by withstanding the demands of residential and light commercial landscapes. Our unique patented, stakeless connection system snaps down to permanently interlock adjacent edging sections – eliminating horizontal separation or possible weak points. Product includes heavy 12-inch, interlocking aluminum stakes that securely anchor it into the ground, providing long-term retention and ensuring that your designs will stand the test of time. Proline is available in a 4 inch height by 1/8 inch thickness. Finishes available are Mill (Natural), Black, Green, and Bronze.

PERMASTRIP™
PermaStrip is a semi-rigid, L-shaped aluminum maintenance strip specifically designed to make straight runs and gentle curves bordering buildings, fences and other problem maintenance areas. Perfect for decomposed granite paths and driveways, retaining decorative stone, and for edging areas that require straight lines and soft curves. PermaStrip is easy to install in perfectly straight applications or gentle curves, and is designed to maintain its integrity over the lifetime of the project. PermaStrip is engineered to allow the aggregate material to be installed over the top of the horizontal base resulting in an integrated installation. Available in a 3 ½ inch height by 1/8 or 3/16 inch thickness. 16 foot sections are ridged for straight lines and 8 foot lengths are notched for gentle curvilinear applications. Finishes available are Mill (Natural) and Black.

CleanLine: SHORT SPECIFICATION

Place the following in specification section that will be used for the main landscaping work (for example, Section 02900 Landscaping, or Section 02930 Exterior Plants, or etc.). The architect to edit size, thickness, length, and finish required for the project. Comments shown in “italics.”

PART 1 GENERAL

1.01 WARRANTY
Actual article number will be determined by location within the Part 1 portion of specification.

A. 15-year limited material warranty for landscape edging from manufacturing defects in workmanship or material.

PART 2 PRODUCTS

2.01 PLANTING ACCESSORIES
Actual article number will be determined by location within the Part 2 portion of specification.

A. Heavy Duty Straight Profile Edging: PermaLoc CleanLine, 1/8 inch (3.2 mm) x 3" (76 mm) [4" (102 mm)] [5-1/2" (140 mm)] high, 3/16 inch (4.8 mm) x 4" (102 mm) [5-1/2" (140 mm)] high, extruded aluminum, 6063 alloy, T-6 hardness, landscape edging for straight-line and curvilinear applications in corrugated straight profile, as manufactured by PermaLoc Corporation, Holland MI 49424, telephone (800) 356-9660. Section shall have loops on side of section to receive stakes spaced approximately 2 to 3 feet (610 mm to 915 mm) apart along its length.
B. Thickness: 1/8 inch (3.2 mm) gage section at 0.072 inch (1.83 mm) minimum thick with 0.135 inch (3.4 mm) exposed top lip and 3/16 inch (4.8 mm) gage section at 0.116 inch (2.95 mm) minimum thick with 0.187 inch (4.75 mm) exposed top lip.
C. Length: 16 feet (4.88 meters), selected products in 8 feet (2.44 meters) sections.
D. Connection Method: Section ends shall splice together with an interlocking stakeless snap-down design.
E. Stake: 12 inch (305 mm) PermaLoc Standard Stake, 0.10 inch (2.5 mm) thick, with optional extruded aluminum, heavy duty 0.125 inch (3.2 mm) thick x 16 inches (406 mm), 18 inches (457 mm), or 24 inches (610 mm) long stakes. Stakes to interlock into section loops.
F. Finish: Natural Mill Aluminum, Black DuraFlex Painted, Green DuraFlex Painted, Bronze DuraFlex Painted, and Black Anodized (Class II). Paint finish shall comply with AAMA 2603 for electrostatically baked on paint.

PART 3 EXECUTION

3.01 LANDSCAPE EDGING INSTALLATION
Actual article number will be determined by location within the Part 3 portion of specification.

A. Preparation: Ensure that all underground utility lines are located and will not interfere with the proposed edging installation before beginning work. Locate border line of edging with string or other means to assure border straightness and curves as designed. Dig trench 1 inch (25 mm) deeper than set of edging bottom.
B. Set edging into trench with top at ½ inch (12.7 mm) above compacted finish grade on turf side with side having loops for stakes placed on opposite side of turf. Drive stakes through edging loops until locked in place. Requires 5 stakes evenly spaced for each 16 feet (4.88 meters) section, or 3 stakes evenly spaced for each 8 feet (2.44 meters) section with a total of 8 stake loops available in each 16 feet (4.88 meters) section if necessary. Provide additional stakes at approximately 24 inches apart, longer stakes, heavier gage stakes, or any combination of previously mentioned as necessary to firmly secure edging for permanent intended use.
C. Where edging sections turn at corners and at angled runs, cut edging partially up through its height from bottom and turn back to desired angle to form rounded exposed radius.
D. Backfilling and Cleanup: Backfill both sides of edging, confirm and adjust if necessary that sections are securely held together, and compact backfill material along edging to provide top of edging at 1/2 inch (12.7 mm) above turf finish grade. Cleanup and remove excess material from site.

May 1, 2003

ProLine: SHORT SPECIFICATION

Place the following in specification section that will be used for the main landscaping work (for example, Section 02900 Landscaping, or Section 02930 Exterior Plants, or etc.). The architect to edit length and finish required for the project. Comments shown in "italics."

PART 1 GENERAL

1.01 WARRANTY
Actual article number will be determined by location within the Part 1 portion of specification.

A. 15-year limited material warranty for landscape edging from manufacturing defects in workmanship or material.

PART 2 PRODUCTS

2.01 PLANTING ACCESSORIES
Actual article number will be determined by location within the Part 2 portion of specification.

A. Medium Duty Straight Profile Edging: PermaLoc ProLine, 1/8 inch (3.2 mm) x 4 inches (102 mm) high, extruded aluminum, 6063 alloy, T-6 hardness, landscape edging for straight-line and curvilinear applications in corrugated straight profile, as manufactured by PermaLoc Corporation, Holland MI 49424, telephone (800) 356-9660. Section shall have loops on side of section to receive stakes spaced approximately 2 to 3 feet (610 mm to 915 mm) apart along its length.
B. Thickness: 1/8 inch (3.2 mm) gage section at 0.050 inch (1.27 mm) minimum thick with 0.125 inch (3.18 mm) exposed top lip.
C. Length: 8 and 16 feet (2.44 and 4.88 meters).
D. Connection Method: Section ends shall splice together with an interlocking stakeless snap-down design.
E. Stake: 12 (305 mm) inch PermaLoc Standard Stake, 0.10 inch (2.5 mm) thick, with optional heavy duty extruded aluminum 0.125 inch (3.2 mm) thick x 16 inches (406 mm), 18 inches (457 mm), or 24 inches (610 mm) long stakes. Stakes to interlock into section loops.
F. Finish: Natural Mill Aluminum, Black DuraFlex Painted, Green DuraFlex Painted, and Bronze DuraFlex Painted. Paint finish shall comply with AAMA 2603 for electrostatically baked on paint.

PART 3 EXECUTION

3.01 LANDSCAPE EDGING INSTALLATION
Actual article number will be determined by location within the Part 3 portion of specification.

A. Preparation: Ensure that all underground utility lines are located and will not interfere with the proposed edging installation before beginning work. Locate border line of edging with string or other means to assure border straightness and curves as designed. Dig trench 1 inch (25 mm) deeper than set of edging bottom.
B. Set edging into trench with top at 1/2 inch (12.7 mm) above compacted finish grade on turf side with side having loops for stakes placed on opposite side of turf. Drive stakes through edging loops until locked in place. Requires 5 stakes evenly spaced for each 16 feet (4.88 meters) section, or 3 stakes evenly spaced for each 8 feet (2.44 meters) section with a total of 8 stake loops available in each 16 feet (4.88 meters) section if necessary. Provide additional stakes at approximately 24 inches (610 mm) apart, longer stakes, heavier gage stakes, or any combination of previously mentioned as necessary to firmly secure edging for permanent intended use.
C. Where edging sections turn at corners and at angled runs, cut edging partially up through its height from bottom and turn back to desired angle to form rounded exposed radius.
D. Backfilling and Cleanup: Backfill both sides of edging, confirm and adjust if necessary that sections are securely held together, and compact backfill material along edging to provide top of edging at 1/2 inch (12.7 mm) above yard finish grade. Cleanup and remove excess material from site.

May 1, 2003

PermaStrip: SHORT SPECIFICATION

Place the following in specification section that will be used for the main landscaping work (for example, Section 02900 Landscaping, or Section 02930 Exterior Plants, or etc.). The architect to edit size, thickness, length, and finish required for the project. Comments shown in “italics.”

PART 1 GENERAL

1.01 WARRANTY
Actual article number will be determined by location within the Part 1 portion of specification.

A. 15-year limited material warranty for landscape edging from manufacturing defects in workmanship or material.

PART 2 PRODUCTS

2.01 PLANTING ACCESSORIES
Actual article number will be determined by location within the Part 2 portion of specification.

A. Heavy Duty L-Shaped Profile Maintenance Strip Edging: PermaLoc PermaStrip, 1/8 inch (3.2 mm) x 3-1/2 inches (89 mm) high, 3/16 inch (4.8 mm) x 3-1/2 inches (89 mm) high, extruded aluminum, 6063 alloy, T-6 hardness, maintenance strip edging for straight-line and gentle curve applications in corrugated L-shaped profile having 1.2 inch (30.5 mm) horizontal base, as manufactured by PermaLoc Corporation, Holland MI 49424, telephone (800) 356-9660 or (616) 399-9600. Section shall have loops on side of section to receive stakes spaced approximately 2 feet (610 mm) apart along its length.
B. Thickness: 1/8 inch (3.2 mm) gage section at 0.060 inch (1.52 mm) minimum thick with 0.200 inch (5.1 mm) exposed top lip and 3/16 inch (4.8 mm) gage section at 0.076 inch 1.93 mm) minimum thick with 0.190 inch (4.8 mm) exposed top lip.
C. Length: 8 and 16 feet (2.44 and 4.88 meters).
D. Connection Method: Section ends shall splice together with a horizontal 0.060 inch (1.52 mm) thick x 1 inch (25 mm) wide x 4 inches (102 mm) long aluminum sliding connector.
E. Stake: 12 inch (305 mm) PermaLoc Standard Stake, 0.10 inch (2.5 mm) thick, with optional extruded aluminum, heavy duty 0.125 inch (3.2 mm) thick x 16 inches (406 mm), 18 inches (457 mm), or 24 inches (610 mm) long stakes. Stakes to interlock into section loops.
F. Finish: Natural Mill Aluminum and Black DuraFlex Painted. Paint finish shall comply with AAMA 2603 for electrostatically baked on paint.

PART 3 EXECUTION

3.01 LANDSCAPE EDGING INSTALLATION
Actual article number will be determined by location within the Part 3 portion of specification.

A. Preparation: Ensure that all underground utility lines are located and will not interfere with the proposed edging installation before beginning work. Locate border line of edging with string or other means to assure border straightness and curves as designed.
B. Set edging into trench with the horizontal base resting on compacted subbase and top at ½ inch (12.7 mm) above compacted finish grade on turf side. Loops for stakes are to be placed on the turf side. Drive stakes through edging loops until locked in place. Requires 8 stakes evenly spaced for each 16 feet (4.88 meters) section, or 3 stakes evenly spaced for each 8 feet (2.44 meters) section. Provide longer stakes, heavier gage stakes, or any combination of previously mentioned as necessary to firmly secure edging for permanent intended use.
C. Where edging sections turn at corners and at angled runs, cut edging partially up through its height from bottom and turn back to desired angle to form rounded exposed radius.
D. Backfilling and Cleanup: Backfill both sides of edging, confirm and adjust if necessary that sections are securely held together, and compact backfill material along edging to provide top of edging at 1/2 inch (12.7 mm) above turf finish grade. Cleanup and remove excess material from site.

May 1, 2003
