Corbin Russwin
Architectural Hardware
225 Episcopal Road
Berlin, CT 06037
Phone: 800-543-3658
Fax: 800-447-6714
Website: http://www.corbinrusswin.com

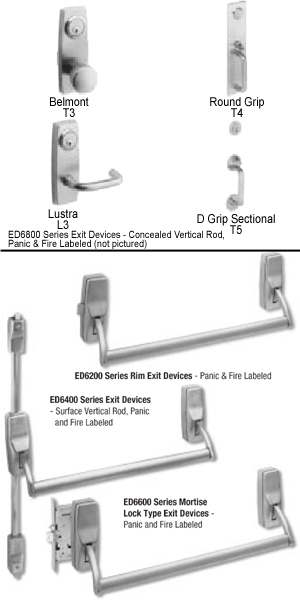

Ideal for high-use situations. - Meets ANSI Grade 1 requirements.
- Heavy-duty construction.
- Base metals (brass, bronze and stainless
steel) for durability.
- Easy-to-use crossbar operation for quick
egress and ADA compliance.
- Dogging standard on all panic-listed
devices.
- Throughbolted trims for strength and
security.
- Wide range of finishes, trims and styles
to match other Corbin Russwin
products.
- Devices available to satisfy panic and fire
opening requirements.
Lever, knob, thumbpiece, pull and
operator escutcheonal trims available.
Consult ED6000 catalog for complete
listing of designs and functions.
Easily field cut to size. Standard 36"
(914mm) bar fits doors up to 36"
(914mm). Optional 48" bar fits 36-1/2"
(927mm) - 48" (1219mm) door.
Standard: 1-3/4" (44mm).
Minimum width with 1/2" (13mm) stop
and standard strike: 4" (102mm). With
5/8" (16mm) stop and standard strike:
4-1/8" (105mm).
5-3/4" (146mm); 4-1/2" (114mm)
depressed.
Heavy wrought, 7-1/4" (184mm) x 2-9/16"
(65mm).
Standard: 13/16" (21mm) x 1-3/8"
(35mm) oval seamless tubing.
One-year limited.
Available with ED6600 and ED6600A
devices.
Meets A156.3, Grade 1.
Meets A117.1 Accessibility Code.
All exit devices listed for safety as panic
hardware. 3-hour fire-rated devices listed
as fire exit hardware for A label and lesser
class hardware.
This product has been approved by the
California State Fire Marshal pursuant to
section 13144.1 of the California Health &
Safety Code.
All exit devices comply with NFPA 101 Life
Safety Code.
Exit devices, lever trims and pulls comply
with Americans with Disabilities Act.
BHMA 605, 606, 611, 612, 613, 622, 625,
626, 629, 630.
Ideal for high-use situations on narrow and regular stile doors in new construction
and renovations. - Meets or exceeds ANSI Grade 1
requirements.
- Heavy-duty construction.
- Base metals (brass, bronze and stainless
steel) for durability.
- Easy-to-use crossbar operation for quick
egress and ADA compliance.
- Dogging standard on all panic listed
devices.
- Throughbolted trims for strength and
security.
- Wide range of finishes, trims and styles
to match other Corbin Russwin
products.
- Devices available to satisfy panic and fire
opening requirements.
Lever, knob, thumbpiece, pull and
operator escutcheonal trims available. Consult ED7000 catalog for complete listing
of designs and functions.
Easily field cut to size. Standard 36" bar
fits doors up to 36" (914mm). Optional
48" (1219mm) bar fits 36-1/2" (927mm) -
48" (1219mm) door.
Standard: 1-3/4" (44mm).
Minimum width 2-1/2" (64mm) with
standard 1/2" (13mm) stop.
4-7/8" (124mm); 3-1/8" (80mm)
depressed.
Heavy cast, 7-1/4" (184mm) x 1-1/4"
(32mm).
Standard: 13/16" (21mm) x 1-3/8"
(35mm) oval seamless tubing.
One-year limited.
Meets A156.3, Grade 1.
Meets A117.1 Accessibility Code.
All exit devices listed for safety as panic
hardware.
3-hour fire-rated devices listed as fire exite
hardware for A label and lesser classe
hardware.
This product has been approved by the
California State Fire Marshal pursuant to
section 13144.1 of the California Health &
Safety Code.
All exit devices comply with NFPA 101 Life
Safety Code.
Exit devices, lever trims and pulls comply
with Americans with Disabilities Act.
BHMA 605, 606, 611, 612, 613, 622, 625,
626, 629, 630.

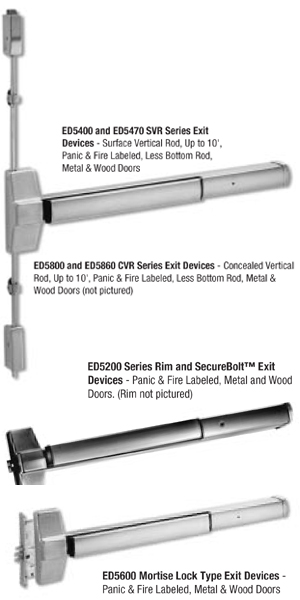

Designed for applications in high-use
situations, ideal for new construction and
renovations. - Meets ANSI Grade 1 requirements
- Easy-to-use pushbar for quick egress and
ADA compliance
- Heavy-duty construction
- Quiet operation
- Low projection for barrier-free code
compliance
- Wide range of finishes, trims, and styles
to match other Corbin Russwin
products.
- Throughbolted trims for strength,
security, durability, smooth operation
and easy installation
- One-point dogging on panic devices
- Devices available to satisfy UL safety and
fire label requirements
Easily field cut to size. Standard 36"
(914mm) bar fits 30" (762mm) - 36"
(914mm) door. Optional 48" (1219mm)
and 24" (610mm) bar.
1-3/4" (44mm) standard.
Minimum width 4-1/2" (114mm).
3-1/4" (83mm) active,
2-3/4" (70mm) dogged.
M55 less bottom rod option available on
ED5470(B) and ED5860(B) exit devices
for panic and fire-rated doors up to 4' x
10' (8' x 10' pairs).
Five-year limited on devices and 900 series
trim.
One-year limited on 700 series trim and
electronic components.
Meets ANSI 156.3, Grade 1. Meets A117.1
Accessibility Code.
All exit devices listed for safety as panic
hardware. 3-hour fire-rated devices listed
as fire exit hardware for A label and lesser
class. 1-1/2 hour fire-rated devices listed as
fire exit hardware for B label and lesser
class.
This product has been approved by the
California State Fire Marshal pursuant to
section 13144.1 of the California Health &
Safety Code.
All exit devices comply with NFPA 101 Life
Safety Code.
Exit devices, lever trims and pulls comply
with Americans with Disabilities Act.
BHMA 605, 606, 611, 612, 613, 625, 626,
629, 630.
- Freewheeling vandal resistant
design
- Beveled edges
- Throughbolted to exit device
- Flush cylinder with 6-pin cylinder
applications
- Available with Vineyard Collection
levers
- Freewheeling lever
- Throughbolts to exit device
- Welded posts
- Available with lever, knob, pull or
thumbpiece designs
| Type | ANSI | Function | | Passage | - | 10 | | Dummy | F02 | 50 | | Classroom | F08 | 55 | | Nightlatch | F03 | 57 | | Storeroom | F09 | 59 |

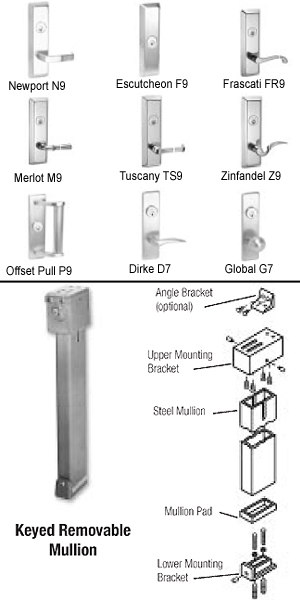

Used to install two rim exit devices in a
double door opening. May be quickly and
easily removed when a full double door
opening is temporarily required. Key
removable option (KM) and retrofit kits
(KRM700A) are available. Prime coat grey
painted BHMA 600. Available with
mullion stabilizer kit.
Tubular steel mullion, 1-1/2" (32mm) x 3"
(76mm), with malleable iron top and
bottom mounting plates; furnished with
zinc plated fasteners for metal frames and
concrete floors. May be cut, drilled and
tapped in field for Rim Exit Devices.
Prime coat gray painted BHMA 600.
Maximum UL Listing | Mullion Opening Height | Part No. | 3-Hour | 7’0” | 707A | 3-Hour | 8’0” | 708A | Panic Only | 10’0” | 710 |
Controls the movement of the mullion.
Recommended for openings over 7' high,
or whenever door movement must be
minimized.

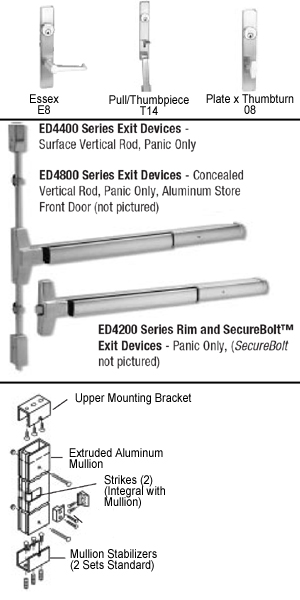

Designed for narrow stile applications on
full glass doors in high-use and high-abuse
situations. - Meets ANSI Grade 1 requirements
- Easy-to-use pushbar for quick egress and
ADA compliance
- Heavy-duty construction
- Quiet operation
- Low projection for barrier-free code
compliance.
- Wide range of trim designs and finishes
to match other Corbin Russwin
products
- Throughbolted trims for strength,
security, durability, smooth operation
and easy installation.
- One-point dogging.
Lever, knob, thumbpiece and operator
trims available. Consult ED4000 catalog
for a complete listing of designs and
functions.
Easily field cut to size. Standard 36"
(914mm) bar fits 30" (762mm)-36"
(914mm) door. Optional 48" (1219mm)
and 24" bar.
1-3/4" (44mm) standard.
Minimum width 2" (51mm)
3-1/4" (83mm) active,
2-3/4" (70mm) dogged.
Five-year limited on devices. One-year
limited on trim.
Meets ANSI 156.3, Grade 1. Meets A117.1
Accessibility Code.
All exit devices listed for safety as panic
hardware.
This product has been approved by the
California State Fire Marshal pursuant to
section 13144.1 of the California Health &
Safety Code.
All exit devices comply with NFPA 101 Life
Safety Code.
Exit devices, lever trims and pulls comply
with Americans with Disabilities Act.
BHMA 605, 606, 611, 612, 613, 625, 626,
629, 630.

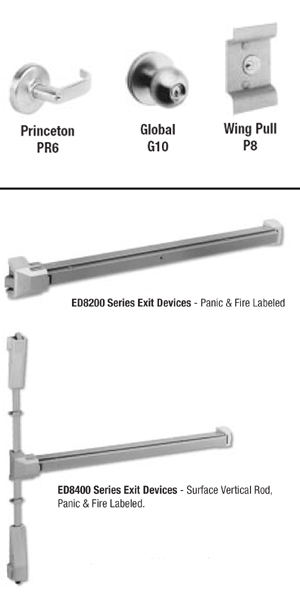

Ideal for high-use situations in new
construction and renovations.
- Meets ANSI Grade 1 requirements.
- Heavy-duty steel construction.
- Easy-to-use pushbar operation for quick
egress and ADA compliance.
- Low profile and projection for barrierfree
code compliance.
- No projecting parts to inhibit egress.
- Throughbolted trims for strength and
security.
- Variety of finishes, trims and styles to
match other Corbin Russwin products.
Key-in-lever, key-in-knob and pull trims
available in five functions. Consult
ED8000 catalog for complete listing of
designs and functions.
Easily field cut to size. Standard 36" bar fits
doors 31" (787mm) - 36" (914mm).
Standard: 1-3/4" (44mm).
2-3/4" (70mm) for 5/8" (16mm) stop.
Device and trim cover standard ANSI
A115.2 (Type 161) cylindrical lock
preparation.
Minimum width 5" (127mm).
2-1/2" (64mm).
3/4" (19mm) stainless steel pullman type
with stainless steel deadlocking latch.
Optional on ED8200(B) devices; emits
audible alarm, signaling emergency or
unauthorized use of door. Available in kit
form or factory installed.
Standard on ED8200 and ED8400 devices.
Standard: machine screws.
Optional, when specified.
One-year limited.
Meets A156.3, Grade 1.
Meets A117.1 Accessibility Code.
All exit devices listed for safety as panic
hardware.
3 hour fire-rated devices listed as fire exit
hardware for A label and lesser class. 1-1/2
hour fire-rated devices listed as fire exit
hardware for B label and lesser class.
1-1/2 hour fire-rated devices listed for B
label and lesser class 4' x 8' single or 8' x 8'
double doors. Rear cover label indicates
listing.
This product has been approved by the
California State Fire Marshal pursuant to
section 13144.1 of the California Health &
Safety Code.
All exit devices comply with NFPA 101 Life
Safety Code.
Exit devices, lever trims and pulls comply
with Americans with Disabilities Act.
BHMA 689, 690, 691, 605, 606, 611, 612,
613, 622, 625, 626. Painted finishes on
devices. Painted or plated finishes
available on trims.
|
