Overhead concealed closers are an aesthetically appealing way to close medium-traffic doors. Center-hung Rixson^® overhead concealed closers use the spindle as the pivot point, giving the most efficient way to control doors. Offset models allow the use of continuous, standard butts or intermediate and bottom pivots to hang doors.

Heavy and high-traffic doors should always use floor closers, but when doors are of average size and usage, the following closers are viable options to surface closers.

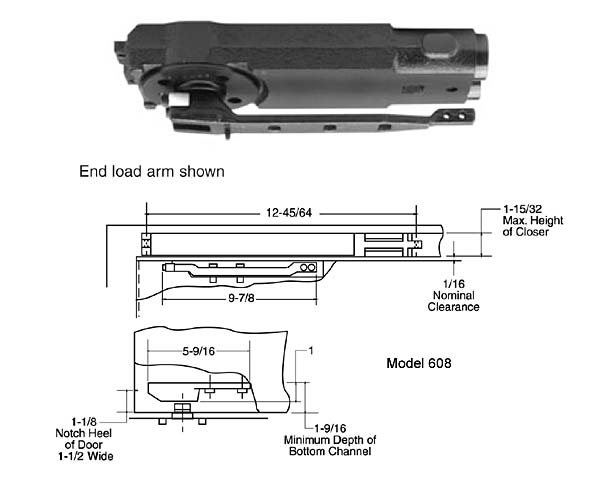

Model 608 Center Hung

Application
Single or Double Acting, Non-handed
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.
Exterior Door Size 3'6" x 8'0"(1067 x 2438mm)
Interior Door Size 3'8" x 8'0"(1118 x 2438mm)

Product Description & Features

• 608EL - Aluminum door/frame, end load arm (Standard)
  608SL - Aluminum door/frame, side load arm (Option)
  (Mounting screw should be on inside of door)
  M608 - Metal door/frame
  W608 - Wood door/frame
  MW608 - Wood door/metal frame
• Available non hold-open (N) or hold open (A). Specify degree (90° or 105°, A or N)
• Closer package includes bottom pivot. 608011 for aluminum doors. 217 for wood or metal doors
• 1-3/4" doors
• Always use auxiliary stop
• 1/2" extended spindle available – specify when ordering

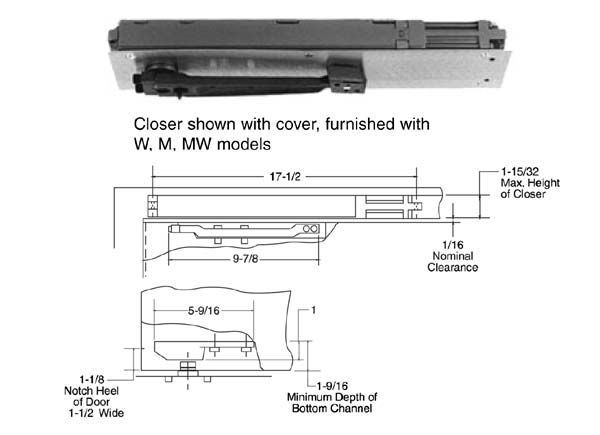

• Cover plate standard with metal or wood jambs. Available in plated finishes
• Adjustable closing speed and mechanical backcheck
• Cast iron body and steel spindle/pistons ensure life cycle economy and trouble-free operation
• Concealed mounting helps reduce vandalism and maintains architectural aesthetics
• Aluminum frame – compact design fits 1-3/4" x 4" head
• Not available PH, CWF or DA
• Applied stop required (see part number 60131 page 34)
• Wood and metal frames require mounting box 608049PKG (order separately)

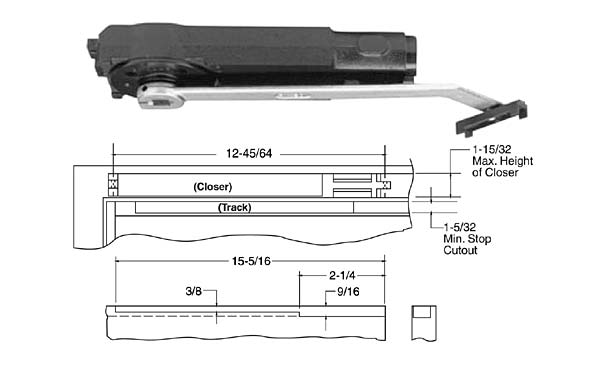

Model 0608 Offset Hung

Application
Single Acting, Non-handed
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.
Door Size 3'8" x 8'0"(1118 x 2438mm)

Product Description & Features

• 0608 - Aluminum door/frame
  M0608 - Metal door/frame
  W0608 - Wood door/frame
  MW0608 - Wood door/metal frame
• Available non hold-open (N) or hold open (A). Specify degree (90° or 105°, A or N)
• Means of hanging: offset pivots, butts, etc., by others
• 1-3/4" doors
• Auxiliary stop required
• 1/2" extended spindle available – specify when ordering
• Cover plate standard with metal or wood jambs. Available in plated finishes
• Adjustable closing speed and mechanical backcheck
• Cast iron body and steel spindle/pistons ensure life cycle economy and trouble-free operation
• Not available PH, CWF or DA
• Wood and metal frames require mounting box 608049PKG (order separately)

Model 700 Center Hung

Application
Single Acting, Handed
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.

ANSI C05052

Product Description & Features

• 700 - Aluminum door/frame
  M700 - Metal door/frame
  W700 - Wood door/frame
  MW700 - Wood door/metal frame
• Available non hold-open (N) or hold open (A). Specify degree (90° or 105°, A or N)
• Closer package includes bottom pivot
• 1-3/4" doors
• Always use auxiliary stop
• 1/2" extended spindle available –- specify when ordering
• Adjustable closing speed
• Adjustable hydraulic backcheck
• Not available CWF or DA
• For ADA compliance use Model 706 for interior 36" doors
• Applied stop required (see part number 60131 page 34)
• Wood and metal frames require 198 and 192 mounting kits (order separately)

Model 800 Center Hung

Application
Double Acting, Non-handed
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.

ANSI C05052, C05062

Product Description & Features

• 800 - Aluminum door/frame
  M800 - Metal door/frame
  W800 - Wood door/frame
  MW800 - Wood door/metal frame
• Available non hold-open (N) or hold open (A). Specify degree (90° or 105°, A or N)
• Closer package includes bottom pivot
• 1-3/4" doors
• Always use auxiliary stop
• 1/2" extended spindle available –- specify when ordering
• Not available CWF or DA
• For ADA compliance use Model 806 for interior 36" doors
• Wood and metal frames require 198 and 192 mounting kits (order separately)

Model 0700 Offset Hung

Application
Single Acting, Handed
Exterior or Interior Doors
Low to Medium Usage
Weight to 200 lbs.

ANSI C05032, C05042

Product Description & Features

• 0700 - Aluminum door/frame
  M0700 - Metal door/frame
  W0700 - Wood door/frame
  MW0700 - Wood door/metal frame
• Available non hold-open (N) or hold open (A). Specify degree (90° or 105°, A or N)
• Means of hanging: offset pivots, butts, etc., by others
• Auxiliary stop required
• Adjustable closing speed and backcheck
• UL listed for fire-rated openings
• Not available CWF and DA
• For ADA compliance use Model 0706 for interior 36" doors
• Wood and metal frames require 0198 and 0192 mounting kits (order separately)
