Terra Universal, Inc.
800 S. Raymond Ave.
Fullerton, CA 92381-5234
Tel: 714-578-6000
Fax: 714-578-6020
E-mail: info@TerraUniversal.com
Web site: www.TerraUniversal.com

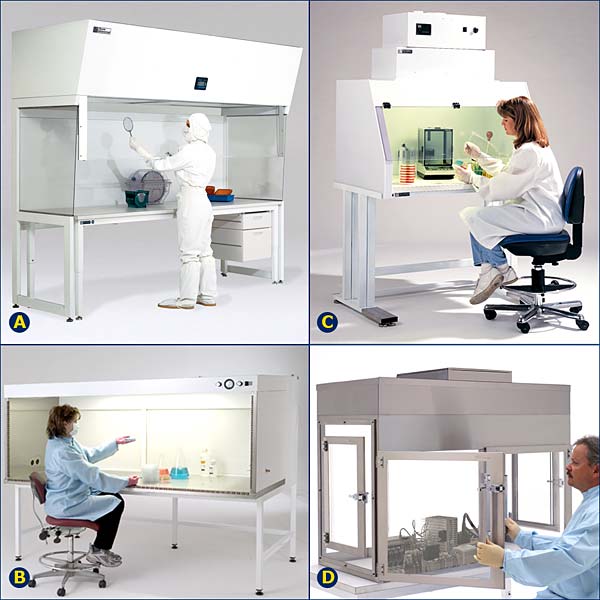

- Vertical Laminar Flow Work Station
- Horizontal Laminar Flow Work Station
- Universal Hood
- Mini-environment Equipment Enclosure
Terra Universal manufactures comprehensive lines of laminar flow and exhaust fume hoods. Benchtop and free-standing models accommodate various space requirements, and options include HEPA/ULPA filtration modules, chemical vapor filters, ionizers, air flow meters and cleanroom work benches.
This system provides a laminar flow of HEPA-filtered air to meet critical contamination requirements. It incorporates industry-leading 48 dBA blowers for quiet, low-vibration operation. The all-stainless steel or powder-coated steel is cleanroom compatible and easy to clean and sterilize. A motorized front shield extends 3" – 25" above the work area for more effective particle control. Fluorescent lighting is included. Available in four standard widths (48", 60", 72, and 96"), in powder-coated or 304 stainless steel.
This turnkey station provides the ideal processing environment for contamination-sensitive pharmaceuticals, biological samples, semiconductors, and other materials. Its quiet multi-speed filter/blower module directs a wash of HEPA-filtered air across the stainless steel work area. Take-up air returns along the front and side edges minimize turbulence and backflow in the work area. A built-in recessed fluorescent illuminator provides diffused lighting. Available in three standard widths (52", 76", and 88"), in powder-coated or 304 stainless steel.
Completely modular design lets you configure an economical clean bench or ductless exhaust fume station, in acrylic, polypropylene, dissipative PVC or 304 stainless steel. The two-piece stand isolates blower vibration. Available in four standard sizes.
These enclosures provide a controlled environment for delicate process equipment. Each includes dual front doors – add microscope bellows, glove ports or self-opening iris ports versatile access. HEPA and ULPA filter modules provide a wash of particle-free air to protect sensitive parts. The bottomless design allows convenient placement over equipment; an optional spill tray is available.
- Exhaust Fume Work Station
- Environmental Control Module (ductless fume hood)
- Pass-Through Biological Safety Cabinet
- Wet Processing Cabinet with Ductless Exhaust
This work station provides ample working space and can be ducted to an in-house ventilation system or configured with charcoal filter modules as a ductless exhaust fume hood. The all-steel support frame isolates the work station from the hood blowers. An easy-glide sliding shield, made of dissipative PVC, shields the operator against noxious fumes. Available in four standard widths (52", 64", 76" and 100"), in powder-coated or 304 stainless steel.
(Laminar Flow or Ductless Exhaust Fume Hoods)
These versatile benchtop hoods are available for laminar flow or ductless exhaust operation, in vertical or horizontal flow configurations. Their modular design lets you create a work station in 14"W increments. Select the material for your application: 304 stainless steel, acrylic, polypropylene, or dissipative PVC.
Terra's Pass-Through Biological Safety Cabinet provides a Class 100 (ISO 5) environment to shield biological specimens against contaminants, while protecting the operator and external environment. Designed and tested to Class II, Type A2 Biological Safety requirements, this station features dual-side glass sashes, with an electronic interlock to prevent contamination, and fluorescent and UV sterilization lights. It's ideal for training and pass-through operations.
Available in polypropylene or stainless steel, this work station is ideal for wet processing applications. It provides a vertical laminar flow of HEPA-filtered air to the work surface. Fumes are vented through slots along the front and back edges and exhaust to a rear duct.
|
