Resilient Partition Isolation Pad

Model KSM

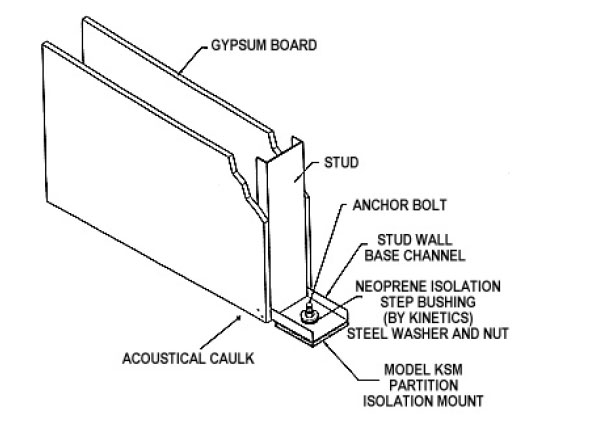

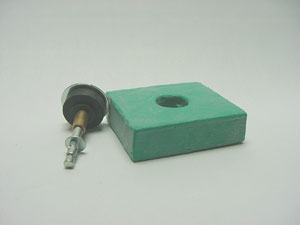

Kinetics Noise Control's Model KSM resilient partition isolation pad offers designers a quick and easy solution for resiliently decoupling a sound-rated partition from non-isolated structure. Flanking of sound through a floor/ceiling assembly can reduce STC (airborne noise) or IIC (impact noise) ratings 10 points or more versus non-flanked sound control construction. Frequently used in conjunction with other Kinetics sound isolation products, Model KSM creates a resilient break to stop sound or vibration from flanking around a sound rated assembly. Included neoprene bushing assemblies isolates each anchor point of the stud wall to ensure effective isolation. Apply Model KSM along the bottom and/or top plates of a stud wall wherever acoustical isolation is required to maintain a fully effective sound rated assembly. For isolating masonry walls, see our higher load capacity Model NAFP-10.
