Craftsman Series Shelters
Craftsman Style architecture came out of the 19th century English arts and crafts movement, which emphasized the importance of craftsmanship and high standards of design. ICON responded to a request, by an architectural firm in southern California, to design a series of shelters that matched the Craftsman style architecture. This new series of shelters is the response to that request. Hexagons, octagons, squares and gable-end rectangles are available in a variety of sizes, with numerous options for column design, ornamental rails, and architectural detailing.

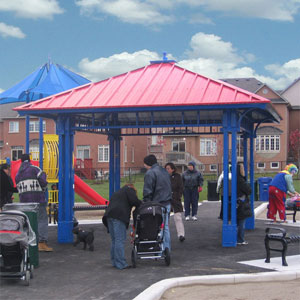

Craftsman Series Squares

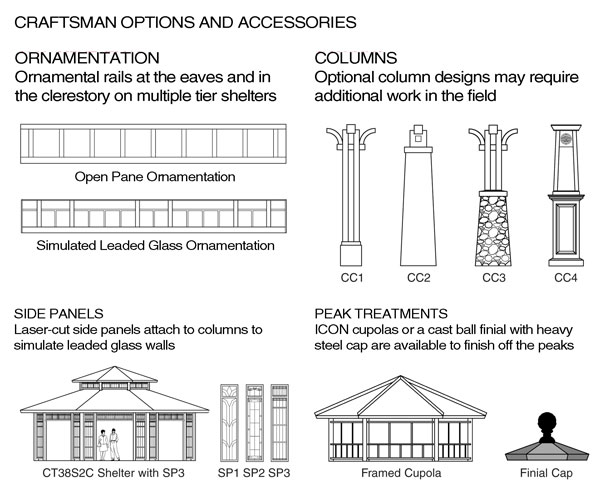

The Craftsman Squares are standard with Craftsman CC1 columns, Simulated Leaded Glass Overhead Ornamentation and a Finial Peak Cap. They can be accessorized with any of the column options shown below. Single tiers are shown. Double and triple tiers are also available. Sizes available: One foot increments from 12' to 60' Standard roof pitch: 6:12 to 29' Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

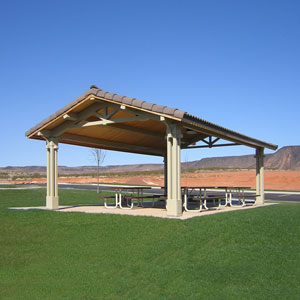

Craftsman Series Gable End Rectangles
The Craftsman Gable End Rectangle shelters are standard with Craftsman CC1 columns and gable end cross-beam ornamentation. Sizes available: Spans in one foot increments from 16' to 52' Standard bay size: 20'-0" Standard roof Pitch: 4:12; optional pitch from 5:12 to 12:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

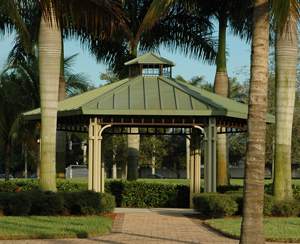

Craftsman Series Hexagons
Craftsman Hexagons are standard with Craftsman CC1 columns, Open Pane Overhead Ornamentation and an open cupola. Sizes available: One foot increments from 16' to 72' Standard roof pitch: 5:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles

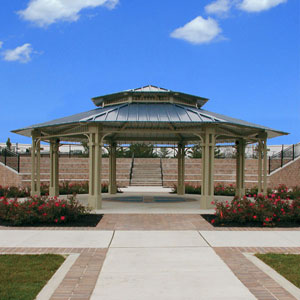

Craftsman Series Octagons
Craftsman Octagons are standard with Craftsman CC1 columns, Open Pane Overhead Ornamentation and a two-tiered roof design. Sizes available: One foot increments from 16' to 72' Standard roof pitch: 4:12 Primary Roof decks: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) 2x6 Western Lodgepole Pine tongue & groove; 4) Pre-cut structural insulated panel w/ T-111 ceiling Optional secondary roofing materials: 1) 24 ga. pre-cut painted metal roof panels; 2) 24 ga. painted metal standing seam roof panels; 3) fiberglass shingles; 4) cedar shingles
