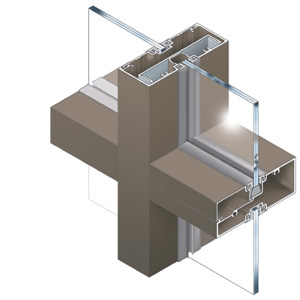

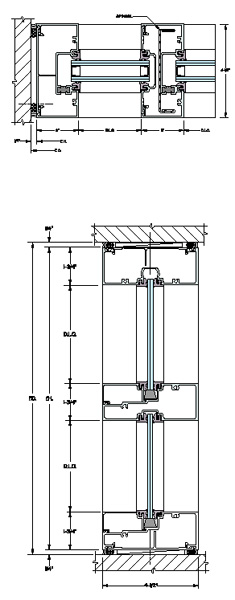

TMS 114T Pittco’s TMS 114T is a 2" x 4 1/2" thermally broken, flush glaze system for 1" glazing, and is available for center set or front set applications. The thermally broken polyurethane debridging system allows for higher obtainable spans when used with standard steel stiffeners. The standard screw spline design allows modular assembly and easy installation, and the unisex top-loaded, non-stretch, corded gasket adds to this ease. The system is also available in a non-thermal design known as TMS 114.
EMS114 EMS 114, a 1 3/4" x 4 1/2" center set, single-span system for 1/4" glazing, features screw spline construction for fast, labor saving assembly and installation throughout the major members. The system is also offered with shear blocks for door-frame construction and special requirements. As an option, steel can be added to the vertical member for higher obtainable spans.
|
