Changing the way you think about roofs.

MonierLifetile offers building professionals and homeowners the finest assortment of premium concrete roof tile available, in the widest array of colors and styles so you can fully realize the creative vision of your next roofing project. Through Aesthetic Innovation, we’ve created a complete line of concrete roofing tiles that faithfully emulate virtually every kind of natural roofing material, from rustic wood shake and handmade Spanish clay to English slate. And we’re constantly expanding our color selection as well, drawing inspiration from the natural environment around us. With so many colors and profiles to choose from, it’s easy to find a MonierLifetile roof to fit the architectural style of your home.

For the ultimate in value, durability and lasting beauty, choose MonierLifetile—the nation’s leading manufacturer of concrete roof tile.

A product for every need.

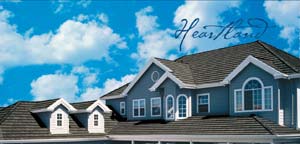

Our diverse selection of products is designed to work in harmony with virtually any architectural style. Whether you choose Saxony, Plaza or Tejas España, you can rest assured you’ll get the finest in style, quality and color selection. The Heartland Collection offers products from our Classics color family.

Classics:
These tiles are available in color-thru finishes, and include streaked, marbled and blended looks.

Product Specifications

MonierLifetile Madera

MonierLifetile Madera is the most affordable, authentic replication of a hand-split cedar shake roof available. With its realistic wood shake surface with colors that emulate the natural colors and texture of cedar shake, MonierLifetile Madera is flexible enough to complement any architectural style.

MonierLifetile Madera

Size and Coverage Weight in Place

Individual tile nominally 13-1/4” x 13”.
At 3” minimum headlap, approx. 120 tiles will cover 100 square feet of roof area.
Installed weight per square approx. 935 lbs.

Saxony

These beautiful designs are representative of the roof styles found in England and northern Europe and are available in a variety of surface treatments. All are designed to emulate natural materials and to complement virtually any architectural style.

Slate
Slate is designed to complement the inherent beauty in French and Tudor architectural styles. Available in a broad range of colors, it faithfully captures the appearance of natural slate.

Slate Vermont
Slate Vermont enhances the standard Slate look with a rough and rustic surface treatment reminiscent of the slate roofs found in Vermont.

Split Williamsburg
Split Williamsburg offers the smooth surface of natural slate with the appearance of a split tile – a distinct shadow line creates the illusion of two smaller tiles while maintaining the superior strength of one.

Split Old English Thatch
Split Old English Thatch combines the look of a natural slate with the varied appearance of a hand-hewn split tile capturing the charming architecture of an old English countryside.

Slate, Slate Vermont, Split Williamsburg, Split Old English Thatch

Size and Coverage Weight in Place

Individual tile nominally 16-1/2” x 13”.
At 3” minimum headlap, approximately 92 field tiles will cover 100 square feet of roof area. Installed weight per square approx. 1,100 lbs.

Plaza

Plaza features the most popular tile profile in the world, faithfully re-creating the beautiful Mediterranean style found in Italy and Southern France.

Plaza

Size and Coverage Weight in Place

Individual tile nominally 16-1/2” x 13”.
At 3” minimum headlap, approximately 92 field tiles will cover 100 square feet of roof area. Installed weight per square approx. 1,100 lbs.

Tejas España

Tejas España is designed to reflect the classic style and distinctiveness of Spanish architecture popular in the early Southern California missions that stretched from Santa Barbara to San Juan Capistrano.

Tejas España

Size and Coverage Weight in Place

Individual tile nominally 16-1/2” x 13-1/8”.
At 3” minimum headlap, approximately 87 field tiles will cover 100 square feet of roof area. Installed weight per square approx. 900 lbs.

Roof System Components

MonierLifetile’s Roof System Components utilize the finest materials and proven installation methods to ensure your projects meet the highest standards for quality and durability. These unique products combine aesthetics and function, not to mention overall performance in ventilation and drainage.

Elevated Batten System

Quick installation
Superior water evacuation
Fewer penetrations
Longer life

Ribbed Valley Metal

Works with all tile profiles
Universal for all slopes and applications
Raised ribs elevated tiles and battens above water flow area

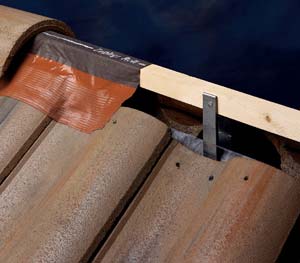

Universal Ridge Vent and Weather Block

Cost effective all in one ridge vent and weather block
8 square inch per linear foot ventilation area provides venting at optimal location
Reduced field vent requirements and fewer penetrations
Easy installation reduces labor costs
Code-compliant ventilation

Vented Eave Risers

Enhanced beauty
Superior fit
Tile space ventilation
Reduced energy consumption

Sales Offices Nationwide

PHOENIX – ARIZONA
GILROY – CALIFORNIA
LATHROP – CALIFORNIA
STOCKTON – CALIFORNIA
RIALTO – CALIFORNIA
DENVER – COLORADO
BOCA RATON – FLORIDA
POMPANY BEACH – FLORIDA
LAKE WALES – FLORIDA
ATLANTA – GEORGIA
KAPOLEI – HAWAII
KANSAS CITY – MISSOURI
HENDERSON – NEVADA
KATY – TEXAS
TACOMA – WASHINGTON

Tile is an internationally recognized premium roofing product providing the qualities of timeless beauty, fire safety and durability, setting the standard for roofing excellence. Automated precision production techniques enable MonierLifetile to be the affordable alternative with an extremely low life-cycle cost.

Code Approvals: Complies with all building codes, including but not limited to ICBO, SBCCI and SFBC.
Fire Test: Easily passes Class A Tests to ASTM E108 and UBC Standard 15-2
Hail Test: Passes hail impact resistance per FM 4473.
Freeze/Thaw Areas: Passes Freezing and Thawing Test of ASTM C67.

Disclaimer: The colors shown may vary from actual current tile colors. Before making a final selection, be sure to review actual tile samples and roof installations. Please contact your local sales office for further assistance.

Installation: Please consult current printed MonierLifetile Installation Guide for application recommendations.

The above technical specifications do not constitute a warranty by MonierLifetile. The only applicable warranty with respect to this product is the Limited Lifetime Product Warranty (fully transferable, non-prorated) contained in the MonierLifetile’s product literature dated most recently prior to the installation of this product on the owner’s roof.
