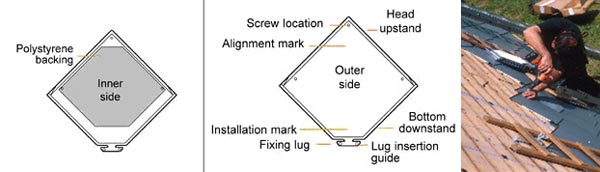

A VM ZINC® roof is an absolute contemporary roof system. VM ZINC® roofs have been installed successfully for centuries. A VM ZINC® roof lasts for 50 – 100 years and during this time needs no maintenance because it has no color or coating that wears off or fades. VM ZINC® roofs can assume almost any shape you can imagine, the most traditional and popular system is a Double Lock Standing Seam but smaller panels like shingles are catching up. ADEKA Roof ADEKA is a pre-formed VM ZINC® shingle product that allows rapid installation. The tiles are installed with a 2” overlap. Polystyrene is bonded to the underside of the shingles, providing an increased sound insulation from rain and hail and making it possible to walk on the roof. It can also be used as a wall element. ADEKA elements are installed quickly and easily, starting from the bottom and working up, using three screws in pre-drilled rimmed holes. The bottom row is held in place with a locking key fitted adjacent ADEKA elements.
With ADEKA designers can create a striking tile effect utilizing the natural grey color of zinc without having to resort to artificially colored metals. It is available in both surface aspects, QUARTZ ZINC® and ANTHRA ZINC®. ADEKA has UL-1897 rating. A full copy of the UL report in PDF format is available at: www.vmzinc-us.com/docs/PDF_Files/UL%20Testing.pdf Our most popular CAD Details may be viewed and downloaded by clicking the
CAD Library button.Additional details are
available at www.vmzinc-us.com

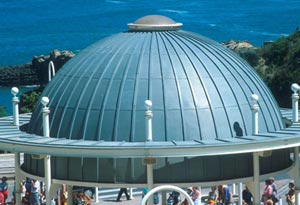

Batten Seam This is a very traditional longitudinal assembly system for a zinc roof. In fact it is probably the oldest technique. The batten seam creates an expression of strong, conspicuous contours, often sought after by architects for its shadow effects and urban character. A timber batten, 1½” (38mm) or 2” (51mm) in height and trapezoidal or rectangular in shape, is fixed with nails or screws onto the timber decking. The zinc sheets and long strips are held in place by a zinc batten clip supporting the peripheral upstands. The capping strips, in lengths of 39 1/2” (1000mm) are placed into position by overlapping. They are fixed at the top by a nailing clip which secures the upper end of the panel while at the same time allowing it to expand freely. Our most popular CAD Details may be viewed and downloaded by clicking the
CAD Library button. Additional details are available
atwww.vmzinc-us.com

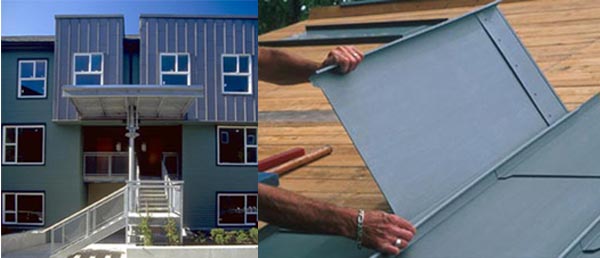

VM DEXTER ZINC VM DEXTER ZINC is a standing seam shingle made by Umicore. It's the product to specify when budget is tight but still want the look for a short DLSS panel with low installation costs. They are packed 6 in a box and 20 boxes to a skid. Each box contains the clips and fasteners to install the panels. One VM DEXTER ZINC panel covers about 6 square feet and comes in either QUARTZ ZINC® PLUS (preweathered grey) or ANTHRA ZINC® PLUS (preweathered black). VM DEXTER ZINC is a patented, pre-formed VM ZINC® PLUS roofing system for use on roofs with slopes of 2 1/2:12 (21%) or more (2:12 (17%) in areas exposed to heavy snow falls). VM DEXTER ZINC is a complete system and includes an extensive range of accessories such as: clips and flashings for ridge, eaves, verge, edge, and valley. VM DEXTER ZINC provides all the aesthetics of zinc roofing with parallel strips similar to traditional techniques, just with much lower installation costs. VM DEXTER ZINC Fast Facts
Our most popular CAD Details may be viewed and downloaded by clicking the
CAD Library button. Additional details are available at
www.vmzinc-us.com

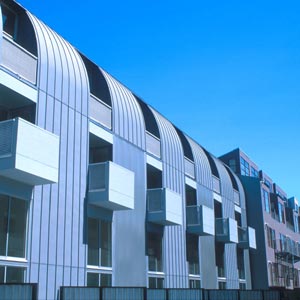

Standing Seam Double Lock Standing Seam (DLSS) is one of the most traditional ways of laying a metal roof and has not lost any of its popularity today. A double lock seam roof might be more sophisticated though that what you are used from typical snap lock and nail strip kind roofs you see with other metals. It certainly requires more hand skills than simple snap and nail systems. However we believe the end results very much justifies this. A well installed DLSS roof in VM ZINC® might easily last for decades and decades, which is one reason why we do not encourage caulking and riveting. That would reduce the life span of the roof to the lifespan of a rivet or caulk. Most penetrations can be folded in and so can all the flashings. Soldering has its place in some areas of our roofs. Our most popular CAD Details may be viewed and downloaded by clicking the
CAD Library button. Additional details are available at
www.vmzinc-us.com

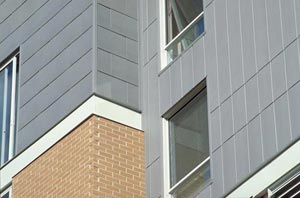

Flatlock Tiles, Scales, Shingles for Roofs Technically these little elements are no different than Flat Lock panels. At least not as far as the connection of the pieces is concerned. They are treated differently because with roofs, typically they are smaller elements. Sometimes such small elements are referred to as "rauten", which is the German word for a diamond shape. In general small elements are rectangular in shape and are used in almost any
size. Our most popular CAD Details may be viewed and downloaded by clicking the
CAD Library button. Additional details are available at
www.vmzinc-us.com
|
