KERAION QUADRO SYSTEM

The technically sophisticated system Quadro is a perfect solution for new buildings and renovation projects requesting a demanding facade design. With the system Quadro, facade panels can be fixed on the substructure very precisely and invisibly.

The System Advantages:

• Excellent look of the facade thanks to a particularly uniform joint structure.
• No visible fastening means.
• Great design scope with the choice of a wide variety of sizes and colors.
• All glazed surfaces of the KerAion facade panels can be furnished with the Hydrotect coating.
• Minimally reflective to radar, KerAion-Quadro is classified as a radar-transparent material of medium reflectivity that will not interfere with air-traffic control systems.
• Light-weight facade panels.
• Strength and performance – no other exterior facade material can match ceramic tile.

With KerAion facade panels we offer 48 impressive standard colors. We also offer custom sizes and colors tailor-made to your special design concepts. For the currently available color palette, please see below or ask for our detailed facade catalog.

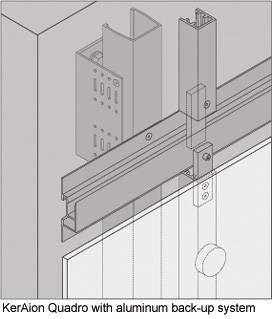

System Description:
The system Quadro is characterized by special Quadro fastening points, which are kiln-fire, bonded to the KerAion panel. They serve for the invisible connection of the panel to the aluminum back-up system. The Quadro fastening is a ceramic composite element with an integral stainless steel screw, sinter-fused on the back of the panel. The stainless steel screw with a self-locking stainless steel nut permits the precise connection of the facade panel to the substructure, and its exact subsequent adjustment, which results into a particularly uniform joint structure.

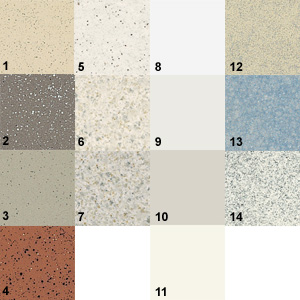

Deco unglazed decorated with glaze particles

1. 4000 Acapulco
2. 4004 Antibes
3. 4005 Attica
4. 4006 Amsterdam

Flecked glaze with subtle glaze interplay

1. 2101 white, flecked H
2. 2103 beige, flecked H
3. 2104 grey, flecked H

Mono-glazed from matt to glossy

1. 4230 glacier-white, glossy H
2. 4231 white-grey, silky-matt H
3. 4232 flint-grey, matt H
4. 4234 chalk-white, matt H

Design glazed with multi-coloured glaze applications

1. 4256 Madrid H
2. 4257 Manáos H
3. 4258 Moskau H

Terra glazed

Matt monochrome natural colors

1. 4350 blue 3 H
2. 4351 blue 2 H
3. 4352 blue 1 H
4. 4353 grey 3 H
5. 4354 grey 2 H
6. 4355 grey 1 H
7. 4356 Sand 3 H
8. 4359 beige 3 H
9. 4363 ochre 3 H
10. 4362 ochre 4 H
11. 4357 sand 2 H
12. 4360 beige 2 H
13. 4364 ochre 2 H
14. 4358 sand 1 H
15. 4361 beige 1 H
16. 4365 ochre 1 H

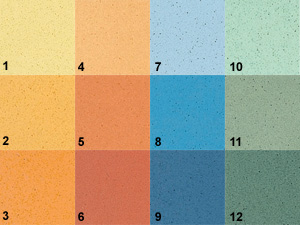

Color glazed

Series in matt colours

1. 4366 soft yellow H
2. 4367 sun-yellow-H
3. 4368 orange-yellow-H
4. 4369 soft apricot H
5. 4370 apricot H
6. 4371 salmon-red H
7. 4372 soft blue H
8. 4373 azure-blue H
9. 4374 cobalt-blue H
10. 4375 soft mint H
11. 4376 olive-green H
12. 4377 jade-green H

1. 4380 chocolate-brown H
2. 4379 cream-brown H
3. 4378 soft cream H
4. 4381 soft-grey H
5. 4382 grey H
6. 4383 black-grey H
