Homeowners who want more energy-efficient windows can discover the advantages of Sungate 500 low-emissivity (low-E) glass with a new brochure from PPG Industries' residential glass.

Introduced in 1984, Sungate 500 glass by PPG was one of the industry's first commercial low-E glasses, so-named for its ability to transmit high levels of natural light while blocking the sun's heat energy in the summer and trapping interior heat in the winter. Today, Sungate 500 glass remains one of the industry's most effective and energy-efficient window glasses, transmitting 76 percent of the sun's natural light while blocking 30 percent of its solar heat energy.

Windows made with Sungate 500 glass are well-suited to cold climates as well as warm because they trap interior heat 28 percent more effectively than windows made with ordinary clear glass. Sungate 500 glass helps to lower cooling bills in the summer and lower heating bills in the winter, while enabling homeowners to enjoy the comfort and health benefits of abundant natural light.

PPG Sungate®
Low-E Glasses

PPG Sungate® Low-E glasses enhance energy efficiency and maintain the original clear or tinted glass substrate color.

All Sungate® Low-E insulating glass units improve thermal performance and reduce solar heat gain. Because the coatings appear neutral, Sungate® glasses are the ideal solution for energy-efficient commercial structures where the original appearance of the exterior glass is desired.

PPG manufactures two Sungate® coated Low-E glasses for commercial construction.

Sungate®500 Low-E Glass

Sungate® 500 glass provides the clarity and color neutrality of clear uncoated glass with some of the best performance characteristics available.

Using Sungate® 500 glass in an insulating unit improves U-Value 27% over a standard clear glass unit. Additionally, the Sungate® 500 glass unit transmits almost 94% as much visible light as a standard clear unit.

All Sungate® glasses can be combined in insulating units with an outboard lite of a PPG tinted or reflective tinted glass to increase performance options (see performance tables in this presentation).

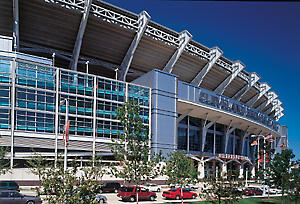

Cleveland Browns Stadium
Location: Cleveland Ohio
Product: 1" Azuria™/Sungate® 500 (3) I.G. Units
Architect: Hellmuth, Obata, & Kassabaum
Glazing Contractor: R.E. Krug Corp.
Glass Fabricator: Perilstein Distributing Corp.
Owner/Developer: City of Cleveland

For samples or to speak with an architectural representative, call PPG IdeaScapes: 888-PPG-IDEA.
Visit www.ppgideascapes.com for product information, technical data, and a complete project portfolio.

Type: Pyrolytic Low-E Clear Insulating Glass

"Sungate®" 500 (2) "Clear" by PPG Industries, Inc.

Indoor Lite: Clear

Outdoor Lite: Clear, Pyrolytic Coated on second surface (2)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Second Surface (2)

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
74%	0.35	0.35	0.62	0.71	17%

Outdoor Appearance: Clear color, low-reflective glass product

"Sungate®" 500 (3) "Caribia^®" by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Caribia^®" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
56%	0.35	0.35	0.34	0.40	12%

Approved Manufacturers: PPG Certified Fabricator

Outdoor Appearance: Gray with warm bronze undertone color, low-reflective glass product

"Sungate®" 500 (3) "Solexia™" by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Solexia™" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
64%	0.35	0.35	0.45	0.51	14%

Outdoor Appearance: Light green color, low-reflective glass product

"Sungate®" 500 (3) "Atlantica™" by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Atlantica™" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
56%	0.35	0.35	0.35	0.41	12%

Outdoor Appearance: Dark green color, low-reflective glass product

"Sungate®" 500 (3) "Azuria™" by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Azuria™" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
57%	0.35	0.35	0.34	0.40	12%

Approved Manufacturers: PPG Certified Fabricator

Outdoor Appearance: Aquamarine color, low-reflective glass product

"Sungate®" 500 (3) "Bronze®" by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Bronze" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
44%	0.35	0.35	0.46	0.53	8%

Approved Manufacturers: PPG Certified Fabricator

Outdoor Appearance: Warm bronze color, low-reflective glass product

"Sungate®" 500 (3) "Gray®" by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Gray" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
37%	0.35	0.35	0.40	0.47	8%

Approved Manufacturers: PPG Certified Fabricator

Outdoor Appearance: Cool gray color, low-reflective glass product

"Sungate®" 500 (3) "Optigray®"23 by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Optigray 23" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
19%	0.35	0.35	0.24	0.28	6%

Approved Manufacturers: PPG Certified Fabricator

Outdoor Appearance: Gray with warm bronze undertone color, low-reflective glass product

"Sungate®" 500 (3) "Graylite®" by PPG Industries, Inc.

Indoor Lite: Clear, Pyrolytic Coated on third surface (3)
Coating: "Sungate" 500 Low-E (Pyrolytic) by PPG Industries, Inc.
Location: Third Surface (3)

Outdoor Lite: "Graylite" by PPG Industries, Inc.

Performance Values

Visible Light Transmission	U-Value Winter	U-Value Summer	SHGC	Shading Coefficient	Outdoor Visible Light Reflectance
11%	0.35	0.35	0.28	0.33	5%

Approved Manufacturers: PPG Certified Fabricator

Outdoor Appearance: Dark gray color, low-reflective glass product
