WORLD DRYER
5700 McDermott Drive
Berkeley, IL 60163
Tel: (708) 449-6950
Toll-Free: (800) 323-0701
Fax: (708) 449-6958
Web site: http://www.worlddryer.com

Hand Dryers

In 1948, World Dryer Corporation introduced the concept of warm-air hand drying. Today, World Dryer continues to design and manufacture products with outstanding attention to quality and performance:

• 90% cost savings over paper towels;
• Environmentally-friendly – paper towels cannot be recycled and consume precious resources in their manufacturing process;
• Warm-air hand dryers have been clinically proven to be more sanitary than paper towels;
• Durable and reliable – the average life of a World dryer is 15 years.

HAND DRYER PLANNING GUIDE

Quantity Estimate
Average traffic washroom – 1 dryer per 2 washbasins
Heavy traffic washroom – 1 dryer per washbasin
54" Bradley sink – 4 dryers per sink

Dryer Placement
Hand dryers should be placed at least 2 feet apart, near but not over the washbasin. In congested areas, dryer should be placed to create a traffic flow from washbasin to dryer to exit.

Dryer Installation
Hand dryers require a dedicated circuit and must be properly grounded. GFI Circuit protection is recommended. One side of dryer should be mounted to stud.

MODEL A/RA & XA/XRA SERIES

Features and Benefits

• Superior engineering ensures high performance
• Quality materials provide maximum durability and vandal resistance
• All Model A and XA dryers deliver high air velocity (7300 linear feet per minute!) to ensure quick drying
• Available in a wide variety of colors, both surface and recessed mount
• When hands are present, the Model XA dryer automatically activates with high air velocity to ensure quick drying
• With no buttons to push, the XA series offers improved sanitation
• XA dryers automatically shut off when hands are removed, conserving electrical costs

Materials

• Cover construction of 1/4" cast iron with exposed areas of porcelain enamel
• Two tamper-resistant screws lock cover securely to base
• Internal parts are plated with corrosion-resistant materials
• Stainless steel tamper-resistant air intake grills

Mechanisms

• Motors are universal type, 1/10 HP, 7500 RPM at rated load with resilient mountings and sealed, permanently lubricated ball bearings for durability and rapid drying
• Dynamically balanced blower wheels for vibration-free running
• Model A push button models employ a durable cam-operated timer to operate dryer for 30 or 40 seconds after activation
• Model XA automatic dryers use reflective infrared sensors to detect hands, initiate and terminate drying
• Model XA automatic dryers should not be placed less than 18" above projections which may interfere with the application of the automatic sensor.

Warranty

• 10 year limited parts warranty

MODEL A SERIES – SURFACE MOUNT & MODEL RA SERIES – RECESSED MOUNT

MODEL XA5 SERIES – SURFACE MOUNT & MODEL XRA5 SERIES – RECESSED MOUNT

Specification Guide – Model A, XA, RA, XRA
Models A, XA, RA & XRA hand dryers shall be manufactured by World Dryer to include a 1/4" thick cast iron cover. Cover to be finished with porcelain enamel. Motor shall be of the universal type, 1/10 HP at 7500 RPM. Dryer shall deliver 7300 linear feet of air per minute (LFM). Hand Dryers shall be activated by means of a push button control device. Automatic Dryers shall be activated by means of an infrared emitting/receiving electronic control device. Timer shall be mechanical, cam-operated type. Recessed units will include a 16-gauge steel wall-mounting box. Hand dryer shall be listed under re-examination service of Underwriters' Laboratories, Inc., and certified by the Canadian Standards Association.

MODEL DA/DA5/DXA SERIES

Features

• The new lightweight steel cover with the classic look of World
• Models DA and DXA5 provide the economy of steel for lighter traffic areas
• Available in push button and automatic
• Warranty backed by convenient nationwide parts and service network
• The unit weighs only 14 lbs. and provides dependable performance and reliable operation

Materials

• Cover construction of .08" (2mm) thick cold rolled drawn steel
• Exposed areas are appliance grade baked epoxy enamel for durability
• Two tamper-resistant screws lock cover securely to base
• Internal parts are plated with corrosion-resistant material
• Tamper resistant air intake grill of 304 stainless steel

Mechanism

• Motor is a universal type open frame 1/10 HP 6900 RPM at rated load with resilient mountings, ball bearing construction with modular brush design and dynamic balanced rotor
• Heating element mounted at air exit for maximum heating efficiency
• Mechanical timer (Model DA-push button) operates dryer for 30 or 40 seconds with push button activation. Switch 22 Amp rating
• Reflective infrared sensor (Model DXA5-automatic) detects hands, initiates and terminates drying automatically. 100 seconds vandal defeat circuit

Warranty

• 10 year limited parts warranty

MODEL DA SERIES – SURFACE MOUNT & MODEL DA5 SERIES – SURFACE MOUNT

MODEL DXA SERIES – SURFACE MOUNT

Specification Guide – Model DA, DA5, DXA
Hand dryers shall be manufactured by World Dryer to include a 2mm thick drawn steel cover with a baked epoxy enamel finish. Motor shall be of the universal type, open frame, 1/10 HP at 6900 RPM. Dryer shall deliver 6900 linear feet per minute (LFM). Model DA shall be activated by means of a push button control device. Timer shall be mechanical with 22 Amp switch. Model DXA5 shall be operated by means of a reflective infrared sensor. Hand dryers shall be listed under the re-examination service of Underwriters Laboratories, Inc., and approved by the Canadian Standards Association.

AIRSPEED AND NO TOUCH SERIES

Recognizing the wide range of applications for hand dryers, and the variety of styles and designs of public washrooms, World Dryer developed the first series of Zinc Die-Cast models in 1984. The Airspeed and No Touch lines offer more than 64 different combinations of designs and colors for lighter traffic areas while delivering the world standard in quality and performance.

AIRSPEED SERIES – SURFACE AND RECESSED MOUNT

Features and Benefits

• Provides superior value
• Delivers air velocity of 5300 linear feet per minute to ensure quick drying
• Available in a wide variety of colored panel fronts, both surface and recessed mount

Materials

• Cover construction of .08" thick diecast zinc for durability and vandal resistance
• Exposed areas are chrome plated or covered with a white chip-proof epoxy finish for durability
• Tamper resistant screws lock cover securely to base
• All internal parts are plated with corrosion-resistant material

Mechanisms

• Units feature push button activation and a durable cam-operated timer to control drying duration
• Shaded pole (brushless) motor with factory lubricated, self-aligning bearings operating at 1/10 HP and 3200 RPM, delivering 5300 LFM average air velocity

Warranty

• 5 year limited parts warranty

AIRSPEED SERIES – SURFACE MOUNT

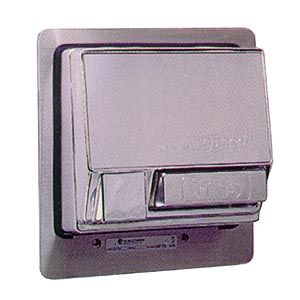

AIRSPEED SERIES – RECESSED MOUNT

AIRSPEED SPECIFICATION GUIDE

Airspeed dryers shall include cover of diecast zinc alloy .08" thick. Cover to be finished with chrome plating or white epoxy paint. Motor shall be of shaded pole (brushless) type operating at maximum 3200 RPM at rated load, delivering 5300 linear feet of air per minute (LFM). Manual dryers will be operated by means of a push button control device and cam-operated timer. Recessed units will include a 16-gauge steel wall-mounting box. Hand dryers shall be listed under examination service of Underwriters Laboratories, Inc. and certified by the Canadian Standards Association.

NO TOUCH SERIES – SURFACE AND RECESSED MOUNT

Features and Benefits

• When hands are present, dryer automatically activates, delivering average air velocity of 5300 linear feet per minute
• With no buttons to push, the No Touch Series offers improved sanitation
• Dryer automatically shuts off when hands are removed, providing electrical cost savings
• Contemporary, sleek style complements modern washroom decor
• Available in 6 units: Standard No Touch; Foodservice No Touch; and Clinic No Touch, all in surface or recessed mount

Materials

• Cover construction of .08" thick diecast zinc for durability and vandal resistance
• Exposed areas are chrome plated or covered with a white chip-proof epoxy finish for durability
• Tamper resistant screws lock cover securely to base
• All internal parts are plated with corrosion-resistant material

Mechanisms

• No Touch dryers use reflective infrared sensors to detect hands, initiate and terminate drying
• Shaded pole (brushless) motor with factory lubricated, self-aligning bearings operating at 1/10 HP and 3200 RPM, delivering 5300 LFM average air velocity

Warranty

• 5 year limited parts warranty

NO TOUCH SERIES – SURFACE MOUNT

No Touch dryers should not be placed less than 18" above projections which may interfere with the application of the automatic sensor.

NO TOUCH SERIES – RECESSED MOUNT

No Touch dryers should not be placed less than 18" above projections which may interfere with the application of the automatic sensor.

NO TOUCH SPECIFICATION GUIDE

No Touch hand dryer shall be manufactured by World Dryer to include cover of diecast zinc alloy .08" thick. Cover to be finished with chrome plating or white epoxy paint. Motor shall be shaded pole (brushless) type operating at 3200 RPM at 60Hz at rated load. Dryer shall deliver 5300 linear feet of air per minute (LFM). Dryer shall be activated by means of an infrared emitting/receiving electronic control device. Recessed units shall include a 16-gauge steel wall-mounting box. Hand dryer shall be listed under re-examination service of Underwriters Laboratories, Inc. and certified by the Canadian Standards Association.

ELECTRIC AIRE MODEL SN – SURFACE MOUNT, R – SEMI-RECESSED, F – FULLY RECESSED

Features and Benefits

• Maintenance-free satin-finish stainless steel housing is ideal for modern washroom facilities
• All-metal construction provides vandal-resistance and durability
• All models available with 30 or 40 sec. timers for hand drying and 80 sec. timers for hair drying

Materials

• Cover construction of 18-8 stainless steel
• Chrome-plated diecast push button and fully rotational, angled air baffle

Mechanisms

• Units feature push button activation and a timer
• Motors operate at 1/10 HP and 5500 RPM, delivering 5200 LFM average air velocity

Warranty

• 5 year limited parts warranty

ELECTRIC-AIRE SPECIFICATION GUIDE FOR MODELS SN, R & F
Shall be manufactured by World Dryer to include a cover of brushed 303 stainless steel. The motor shall be 1/10 HP universal type operating at 5500 RPM at 60 Hz at rated load. Dryer shall deliver 5200 linear feet of air per minute (LFM). Dryer shall be activated by means of a push button control. Timer shall be electromechanical cam-operated. Recessed units will include a 16-gauge steel wall-mounting box. Hand dryers shall be listed under re-examination service of Underwriters Laboratories, Inc.

MODEL LE – SURFACE MOUNT

Materials

• Cover construction of cast aluminum .125" (3.17mm) thick
• Powder coated baked enamel in an appliance white finish
• Two tamper-resistant screws lock cover securely in place
• Corrosion resistant materials
• Rubber noise isolation mounting

Mechanism

• Motor is induction (brushless) 1/8 HP, 2850 rpm (50Hz), 3360 (60 Hz), thermal protected
• 3900 LFM
• NiCr wire coil element with fiber glass core and auto re-set thermostat
• Active infrared sensor with vandal circuit shut off function

Warranty

• Two year limited parts warranty

LE SPECIFICATION GUIDE
Hand dryers should be placed at least 2 feet apart, near but not over the washbasin. Automatic dryers should not be placed less than 18" above projections which may interfere with the operation of the automatic sensor. In congested areas dryer should be placed to create a traffic flow from washbasin to dryer to exit. Hand dryers require a dedicated circuit and must be properly grounded. GFI Circuit protection is recommended. One side of dryer should be mounted to wall stud.
