Tapered Low-Profile Composition Vent Series
Looks Great. Performs Great.

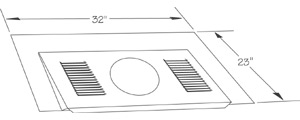

The O'Hagin's tapered low-profile composition vent provides 72 square inches of Net Free Ventilation Area (NFVA). Designed to seamlessly blend form and function, the tapered vent provides superior airflow without detracting from the aesthetics of the roofline. The vent is 32 inches wide, 23 inches long and 2 inches high in the front, tapering to blend in with the roof decking at the top.

This model is well constructed with 24, 3-1/2 inch louvers on each side, water diverters and splashguards. Each side has a 4-inch flange with a top flange of 6-1/2 inches. The vent opening is an 11-inch circle with a 1/4-inch screen and 1/2-inch lip.

Pre-Painted Vents Save Time and Money
O’Hagin’s, Inc. is proud to provide it’s popular line of low profile vents for slate, shake and composition roofs with a standard galvanized steel finish, copper, aluminum, or in a selection of colors — black, brown, charcoal, gray and white.

Manufactured using the most technologically advanced application process available, O’Hagin’s pre’painted vents provide contractors with the color stability, durability and chalk resistance properties necessary to complete the job correctly — the first time.

TAPERED LOW PROFILE
NFVA* - 72.0 sq. in. (464.5 sq. cm.)
WEIGHT PER VENT
GALVANIZED 26 ga
      • 7.50 Lbs, (2.80) Kg
ALUMINUM .032
      • 4.50 Lbs, (1.68) Kg
COPPER 16 oz
      • 10.50 Lbs, (3.92) Kg

Slate and Shake Applications

The slate series is designed to work with slate from around the world. Call for additional information.

VENT SPECIFICATIONS

• 32" Wide, 23" long
• The two sides have a 4" flange, the top flange is 6-1/2"
• (24) 3-1/2" louvers which allow airflow across the top of the vent.
• A louvered baffled panel underneath to keep water out.
• 1" eyebrow storm panels across the front of the vent to resist high wind and rain. (Optional)
• Vents can be painted to match the roof shingle.

Breathe Easier With O’Hagin’s Vents

Attic ventilation promotes the circulation of healthy, fresh air.  By incorporating vents both high and low on a roof --- not just at the ridge or the eave --- O’Hagin’s whole roof ventilation system encourages superior air movement.  O’Hagin’s vents placed near the eave draw in fresh air and cause a natural vacuum effect that forces out warmer air through the upper vents.  The net result is better circulation, fresher air, and lower attic temperatures.

With O’Hagin’s vents, families breathe easier!
