Gold Edition - 1 3/8" Insulated Steel Sectional Garage Doors

Models RMT 610, 660, 670, 680, 690

Crafted With Excellence
The Gold Edition Models are crafted and engineered for energy efficiency without sacrificing beauty or practicality. The premium quality and superb craftsmanship of these doors are exemplified throughout the Award Series. The Gold Edition RMT Models add value and elegance to any home.

The embossed steel is factory pre-finished, painted on both the exterior and interior with epoxy primer and then covered with a durable polyester finish coat. Additionally, the doors can be field painted to match the color scheme of your home. The Award Series is manufactured to be virtually maintenance free and designed for a lifetime of use.

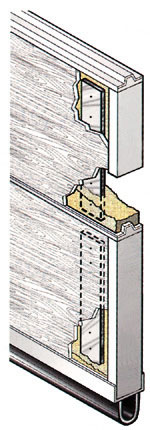

• Vinyl top cap provides thermal barrier and foam protector.
• Full thermal break on ALL sections insulates from extreme temperatures.
• Embossed galvanized steel skins assure protection from warping, rotting, and rusting.
• Attractive deep wood grain embossed steel, factory pre-finished, painted both exterior and interior with an epoxy primer and polyester finish coat.
• Rigid vinyl end caps protect and seal the foam core and provide a smooth surface for door stops.
• Weather seals between each section joint keep out wind and rain.
• 1 3/8" polyurethane insulation is pressure injected and leaves no voids when bonding to both exterior and interior steel skins.
• Heavy 20 gauge galvanized backer plates extending the full height of each section give superior hardware support.
• Flexible vinyl bottom astragal fits contour of floor providing a weather seal and is easily replaced if damaged.

Protective Paint System

This three tier, corrosion-resistant protection is designed to repel even the most hostile weather conditions. The protective layers found on both the interior and exterior are:

Colors Available: Almond, Bronze, Brown, Gray, Hunter Green, Sandstone, White, Kynar beige, Kynar Brown, and Kynar White.

• Foam Injected Polyurethane
• 26 gauge steel
• Galvanizing
• Epoxy Primer
• Polyester Top Coat

Standard Dimensions

• Standard Heights: 6' 6", 7' 0", 7' 6", 8' 0"
• Standard Widths: 8', 9' 10', 16', 18'
• Standard panel (widths):
• 8', 9, @ 4 Panels
• 10' @ 5 Panels
• 16', 18' @ 8 Panels

Four Models to Choose From
The Gold Edition RMT Models are available in four panel designs that are sure to please even the most discriminating tastes.

All four models are available in white, almond, brown, sandstone, hunter green, grey, and bronze. For added beauty, window options are also available on all four RMT Models.

All Gold Edition RMT Models are covered by Our (Limited Lifetime) Warranty. Just one more feature that assures you are purchasing the most trouble-free door available.

RMT-610
Provides an attractive true flush appearance that will emphasize the styling of any home with the deep embossed wood grain appearance.

RHT-660
Popular recessed carriage house panel design with an embossed wood grain. This elegant model perfectly matches the "new rustic" style in many of today's upscale homes.

RMT-670
This raised panel door is accented with an embossed, ranch panel design on each deep, wood grain steel section. This handsomely detailed door is a great addition to any home.

RMT-680
This raised panel door is accented with an embossed, raised panel design on each deep, wood grain steel section. This handsomely detailed door is a great addition to any home.
