Platinum Edition - 1-3/4" Insulated Steel Sectional Garage Doors

Models RHT 710, 760, 770, 780, 790

Invest in Beauty & Style
An individual's single most important investment is a home. A garage door can do more than just add beauty to your home; it can insulate, save you money, and increase value.

In visually appealing, wood grained embossed steel, the quality of the Platinum Edition RHT Models is far greater than meets the eye.

Each door is carefully finished on both the interior and exterior with a tough epoxy primer and a durable polyester protective coating. This ensures years of lasting distinction, despite the harsh effects of weather and frequent use. The RHT Models have an R-Value of 16.18 and use CFC FREE, 1 3/4" thick polyurethane foam that is environmentally safe. The Platinum Edition boasts one of the highest energy ratings of any garage door in the industry, giving it six times the insulating value of wood or non-insulated doors.

Haas Door offers the broadest selection of quality-built insulated and non-insulated doors in the widest variety of styles, including three top-of-the-line models with polyurethane foam insulation.

Practical, Efficient, Economical

The investment of an RHT Model steel garage door is a value with a return. Virtually maintenance free, it won't rust, rot, or warp and is highly energy efficient, insulating your home from extreme temperatures, wind, and rain.

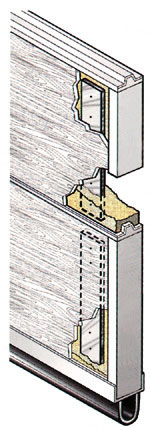

  • Vinyl top cap provides thermal barrier and foam protector.
  • Full thermal break on ALL sections insulates from extreme temperature.
  • Embossed galvanized steel skins assure protection from warping, rotting, and rusting.
  • Attractive deep wood grain embossed steel factory pre-finished painted both exterior and interior with epoxy primer and polyester finish coat.
  • Rigid vinyl end caps protect and seal the foam core and provide a smooth surface for door stops.
  • Weather seals between each section joint keep out wind and rain.
  • 1 3/4" polyurethane insulation is pressure injected and leaves no voids when bonding to both exterior and interior skins.
  • Heavy 20 gauge galvanized hardware back-up plates extending the full height of each section give superior hardware support.
  • Flexible vinyl bottom astragal fits contour of floor providing a weather seal and is easily replaced if damaged.

Protective Paint System

This three-tier, corrosion-resistant protection is designed to repel even the most hostile weather conditions.

Colors Available: Almond, Bronze, Brown, Gray, Hunter Green, Sandstone, White, Kynar beige, Kynar Brown, and Kynar White.

The protective layers found on both the interior and exterior are:

Foam Injected Polyurethane

  • 26 gauge steel
  • Galvanizing
  • Epoxy Primer
  • Polyester Top Coat

Standard Dimensions

  • Standard Heights: 6' 6", 7' 0", 7' 6", 8' 0"
  • Standard Widths: 8', 9' 10', 12' 14', 15', 16', 18'
  • Standard panel (widths):
    • 8', 9, @ 4 Panels
    • 10' @ 5 Panels
    • 12' @ 6 Panels
    • 14', 15' @ 7 Panels
    • 16', 18' @ 8 Panels

Available in a variety of colors, the Platinum Edition requires no painting unless field painting is desired to match the color scheme of your home. For added beauty, window options are available on all three RHT Models.

All four models are available in white, almond, brown, sandstone, hunter green, grey, and bronze. The Platinum Edition features four panel designs: flush wood grain, ranch panel wood grain, raised panel wood grain, and a sculpted panel wood grain.

All RHT Models are covered by Our (Limited Lifetime) Warranty. Just one more feature that gives you peace of mind for the lifetime of your Platinum Edition RHT Models.

RHT-710
Provides an attractive true flush embossed wood grain appearance that will emphasize the styling of your home.

RHT-760
Popular recessed carriage house panel design with an embossed wood grain. This elegant model perfectly matches the "new rustic" style in many of today's upscale homes.

RHT-770
This raised panel door is accented with an embossed wood grain, ranch panel design. This handsomely detailed door is a great addition to any home.

RHT-780
This raised panel door is accented with an embossed wood grain, raised panel design. This handsomely detailed door is a great addition to any home.

RHT-790
This sculptured, raised panel wood grain door is crafted with embossed panels that accentuate its stylish design.
