MEZZARAIL®

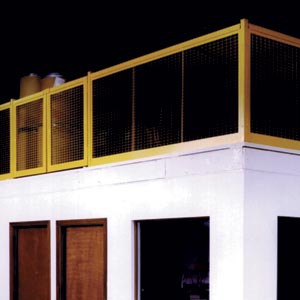

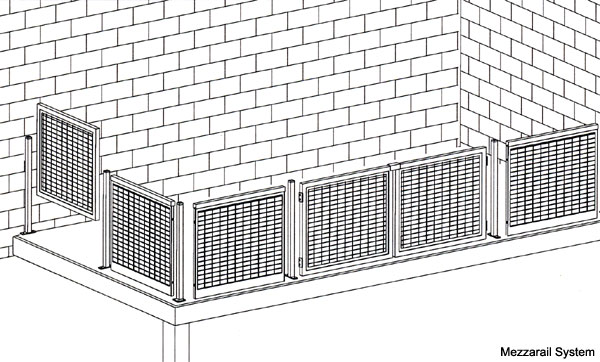

Wire Crafters combined the strength of square handrail with the versatility of woven wire partition to create a unique handrail for mezzanines. MezzaRail, designed to replace multiple rail systems, out performs them as well. With its woven wire barrier, built-in kick plate, and top rail, MezzaRail sets up quicker – just two bolts per section – and acts as a barrier. Objects that pass through a multi-rail system are restrained by MezzaRail. System meets BOCA and OSHA codes for handrails “of withstanding a load of 200 pounds applied in any direction at any point on the rail.” This innovative, factory made, high quality, railing system out performs on site fabricated rails in many ways.

Features

  • Panel sections integrate 2” x 2” x 14 gauge steel tube rail, woven wire panel and kick in one unit.
  • Panel section under rail is framed with 1-1/4” x 1-1/4” x 1/8” steel angle on three sides and 4” x 1-1/4” x 14 gauge steel kick plate.
  • Standard mesh is 10 gauge wire woven into 2” x 1” opening mesh. Panels may be ordered with any mesh, 16 gauge sheet metal, or clear Lexan®.

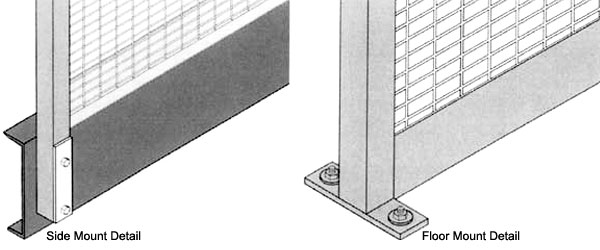

  • Posts are made of 2” square 14 gauge steel tubing, with foot plates welded on for deck mounting, or configured with holes for side mounting.
  • Panels bolt to posts with standard 3/8” hardware.
  • Detailed erection drawings supplied with each layout.
  • Attractive inter-crimped woven wire mesh is strong, and aesthetically pleasing.

Gates

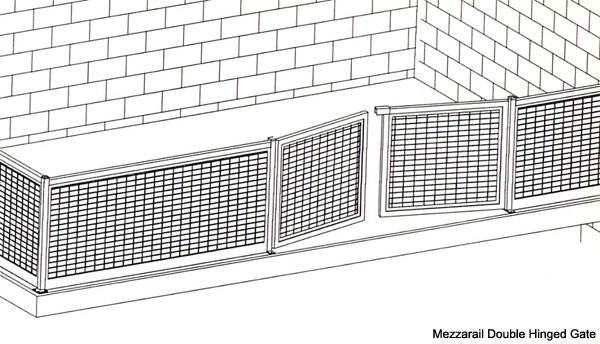

  • Available in either single-hinged or double-hinged styles and can span 3’, 4’, 6’, or 8’ openings (6’ and 8’ openings require double-hinged gates).
  • Lift-out Gates are also available in 3’, 4’, and 5’ openings.

Panels

  • Top rail made of 2” x 2” x 14 gauge steel tubing.
  • Woven wire panel securely welded to top rail.
  • Stock height 42”
  • Stock lengths 7’ 10”, 5’ 10”, 3’ 10”, and 0’ 10”
  • Custom sizes available.

Posts



  • Newel type posts project 1” above rail.
  • Decorative cap welded to each.
  • Stock height 43” (customs available).
  • Deck mount or side mount available.

Materials



Panels and gates shall be constructed of 10gauge steel wire woven into 2” x 1” opening rectangular mesh, welded into a 1-1/4” x 1-1/4” x 1/8” steel angle frame on three sides and 4” x 1-1/4” x 14 gauge steel kick plate on the bottom. Panel assembly shall be securely welded to a 2” x 2” x 14 gauge steel tube top rail.

Posts shall be newel type, made of 2” x 2” x 14 gauge steel tubing with decorative steel cap welded to top. Posts configured for deck mounting shall have 3/8” x 2” x 7” base plates securely welded to each. Posts configured for side mounting utilize a ¼” x 2” x 8” plate; both post and plate bolt to mezzanine structural edge.

Assembly hardware for mount panel sections to posts shall be standard 3/8” grade 2 plated fasteners and supplied by factory. Floor and/or deck anchors by others.

Finish shall be two coats of yellow acrylic enamel, touch up paint provided.
