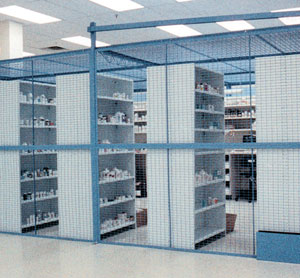

DEA Approved Enclosures

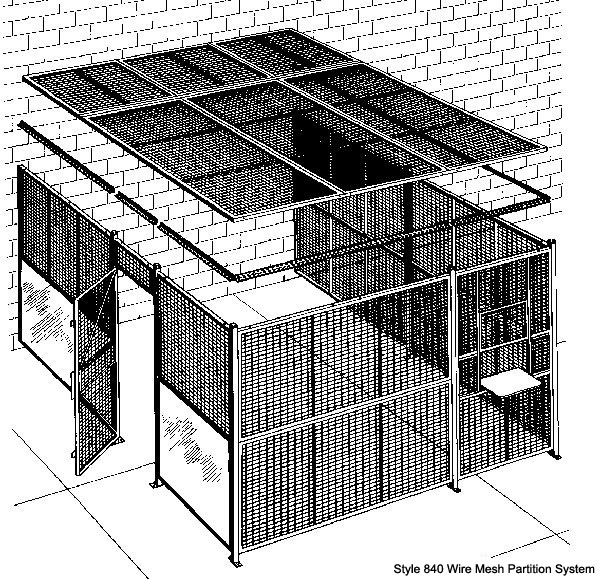

When properly installed, Wire Crafters Style 840 Partitions meet or exceed the requirements for storage of Class III, IV and V controlled substances as outlined in Section 1301:72 of the Code. For these applications the enclosure must be totally secure, gaps between the partition and building structure may not exist. Doors must be self-closing and self-locking; all hardware must be brazed, pinned or tack welded in place. When specifying WireCrafters Style 840 Partitions for DEA storage applications it must be noted that panels install flush to floor and ceiling, (if preferred a clear-span ceiling may be provided), all hardware is welded or pinned, and all gates are self-closing and self-locking. WireCrafters Style 840 Partitions easily meet these requirements, and we have years of experience supplying this type of application.

Features

  • Standard mesh is 10 gauge wire woven into 2” x 1” opening mesh.
  • Panels may be ordered with any mesh, 16 gauge sheet metal, or clear Lexan®.
  • Standard frames 1-1/4” x 1-1/4” x 1/8” steel angle, heavier frames available.
  • Posts are made of 2” square 14 gauge tubing, with foot plates welded on.
  • Standard 3/8” mounting hardware is the heaviest in the industry.
  • Angle frame design gives installer clear access to hardware, speeding installation.
  • Assembly hardware is inaccessible from the exterior of the partition.
  • Sliding doors have patented tamper resistant latch mechanism.
  • Standard size panels work in ceilings and walls.
  • Detailed erection drawings supplied with each layout.
  • Product’s inherent strength eliminates the need for channel stiffeners.
  • Attractive inter-crimped woven wire mesh is strong, and aesthetically pleasing.

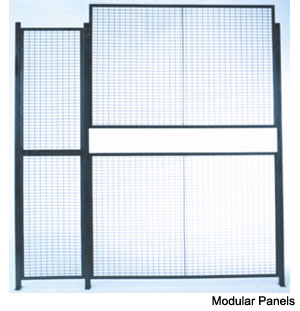

Modular Panels
  • Ten widths, 1’ to 10’ in one foot increments.
  • Two heights: 4’-0” and 5’-0”.
  • Full height partition walls are built by stacking two or more panels between posts.
  • Standard Mesh: 10 gauge wire woven into 2" x 1" rectangular openings (other meshes and sheet metal are available).
  • Frame 1-1/4" x 1-1/4" x 1/8" steel angle.
  • Custom size panels available.
  • Alternate meshes available

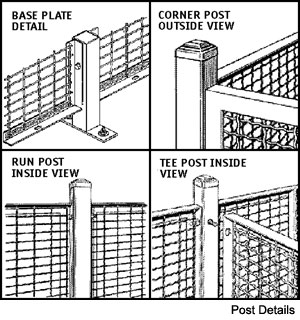

Posts
  • Stock sizes: 8’-5 1/4”, 10’-5 1/4”, 12’-5 1/4”.
  • Standard hole layout allows for 3-1/4” sweep-space - DEA approved enclosures must be specified as flush to floor.
  • Posts project 2” above top of panel.
  • Standard base plate: 2” x 7” with holes for anchors.
  • Special length posts are available to 40’.
  • Oversized base plates are available.
  • Floor anchors (3/8”) are included with your order.

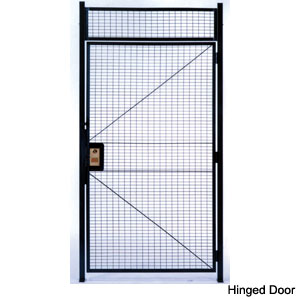

Hinged Doors
  • 3’ or 4’ wide by 7’ 3-1/4” high opening.
  • Transom panel sized to match partition height.
  • Three 4” x 4” 10 gauge steel tight pin hinges.
  • Padlock lugs standard, cylinder locks available.
  • Complete with two door posts and hardware.
  • Universal construction, works for left or right hand, inside or outside swing.

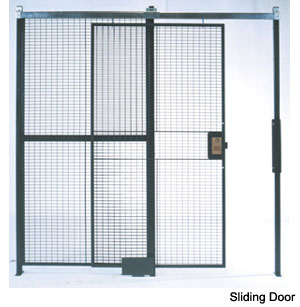

Sliding Doors
  • 3’, 4’, 5’, 6’ or 10’ widths.
  • Full height partition opening of 8’ or 10’.
  • Universal construction, works for left/right hand, inside/outside.
  • Features patented tamper-resistant sliding gate receiver.
  • Padlock lug standard, cylinder lock optional.
  • Custom sizes available.
  • DEA approved enclosures must specify self closing and self locking.
Ceilings
  • Ceiling panels interchangeable with wall panels.
  • Attach to partition walls with slotted angle.
  • May be clear spanned up to 35’.
  • Large ceilings supported with horizontal ceiling tubes.
  • May be added to existing partition without changing layout.
  • All ceilings are non-load bearing.
  • Ceiling cutouts or drop down doors available.


MATERIALS

PANELS - Shall be 10 gauge steel wire crimped and woven in to 2” x 1” opening rectangular mesh, securely welded into a frame of 1-1/4” x 1-1/4” x 1/8” steel angle factory punched with 7/8” x 7/16” slotted holes to accept 3/8” mounting hardware. Panels four to six feet wide shall have one 1/4” x 3/4” flat stiffener, wider panels receive two 1/4” x 3/4” stiffeners. All panels shall be fastened to posts with 3/8” x 3” plated bolts and nuts.

DOORS - Hinged shall be constructed of the same materials as the panels with two 1/4” x 3/4” horizontal stiffeners across the width, and two diagonal 1/4” x 3/4” stiffeners from center to the corner. Hinged doors shall be equipped with padlock lugs (cylinder lock optional), three 4” x 4” spun pin hinges, and pick plate/slam bar assembly.

DOORS - Sliding shall be constructed of the same materials as the panels with two 1/4” x 3/4” horizontal stiffeners across the width, and two vertical 1/4” x 3/4” stiffeners from center to top or bottom. Sliding doors shall be equipped with two 4 wheel trolley trucks, 1-7/8” x 2-3/8” door track, pad lock lugs (cylinder lock optional), and door keeper assembly.

POSTS - Shall be made of 2” x 2” x 14 gauge steel tubing. Base plates of 2” x 7” x 1/4” steel flat with two 7/16” round holes for anchoring, shall be welded to each tube. Posts are factory drilled with 1/2” holes to accept hardware for mounting panels.

HARDWARE - Shall be 3/8” standard thread grade two plated nuts and bolts. Floor anchors are 3/8” wedge type-provided.

FINISH - Non-plated parts receive one coat of gray acrylic enamel. Touch up paint included with each shipment.
