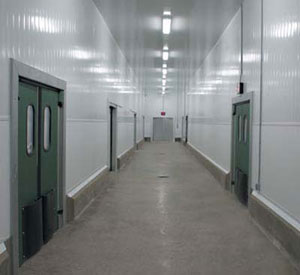

Zero-Loc Insulated Panel and Door Systems 28 Plant Farm Blvd. Zero-Loc Incorporated Walk-On Suspended Ceiling Systems Manufacturer Since 1969, Zero-Loc has manufactured high quality insulated Metal Wall and
Ceiling Panels for use primarily in the construction of cold storage rooms and
buildings and federally inspected temperature controlled process areas. Zero-Loc’s excellent reputation is based on our commitment to providing top quality products and superior customer service. The manufacture of insulated panels is just the beginning. The experienced Zero-Loc team actively participates in each order from start to finish, including panel detail design, AutoCAD drawings, scheduling and manufacturing, and project management. Zero-Loc takes great pride in each completed project, and our warranty and after-sales service is second to none. Product Presentation Panels consist of a Zelsius EPS™ (expanded polystyrene) insulation core,

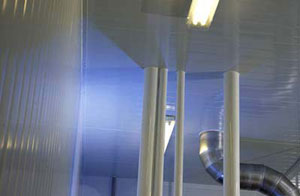

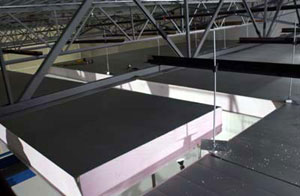

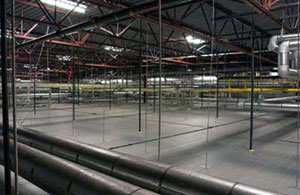

clad on exposed areas with 26 Gauge G90 Galvanized Steel. Walk-On Suspended Ceilings The Zero-Loc Walk-On Suspended Ceiling System is designed to allow utility installation and maintenance above the hygienically sensitive food processing area. The exposed side of the suspended ceiling is attractive and easy to clean. Excellent adhesion to the metal skins and flexibility of Zero-Loc EPS™ insulation eliminate worries of panel fracture and delamination from workers walking on Zero-Loc Panels. Expanded Polystyrene EPS is the ideal insulation for low temperature applications. R-value is provided
by what the insulation contains, not by the insulation material itself. EPS
insulation gets its R-value from air-filled cells, which will not deteriorate
or age over time. Furthermore, EPS R-values improve at lower temperatures. (See
the Technical Data table by clicking on the Table button above.) Panel Skins Zero-Loc metal skins are coated with a polyester-based, high-gloss prepainted white finish which is more resilient in high wash-down areas than other standard prepainted white baked enamel finishes available. Zero-Loc can also factory laminate a Fiberglass Reinforced Plastic (FRP) skin to existing metal skins, for those areas where there is a high wash-down requirement, and/or high traffic. FRP provides increased scratch, dent and wash-down resistance. |
