Special end fittings make these assemblies quicker and easier than ever.

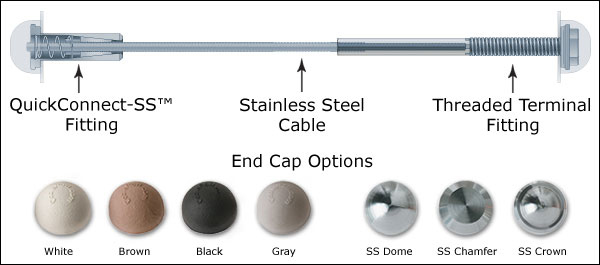

• The all-stainless QuickConnect-SS ™ fitting is attached to the cable in the field without special tools. One-way jaws allow the cable to easily slide through the fitting in one direction but automatically grab and lock on when the cable is released. Just slip it on, pull the cable tight and cut the excess. Snap on decorative end caps for a finishing touch.
• The stainless Threaded Terminal fitting is fastened (swaged) to one end of the cable at our factory. Attach it to an end post using a special Snug-Grip ™ washer nut and spin the nut to adjust final tension in the line. The Snug-Grip ™ threads help prevent the nut from loosening. Select 4-1/4" long terminals when attaching to metal posts and 7-1/2" long when attaching to wood posts. Washer-nut, flat washers and colored end caps are all included with each assembly. Stainless end caps are also available as an accessory option.
• The Cable is a 1x19 construction, type 316 stainless steel for strength, durability and weather protection. Available in 1/8", 3/16" and 1/4" diameters.

• Available in 1/8", 3/16" & 1/4" cable sizes for residential as well as larger commercial projects.
• Attractive, invisible appearance will not impair views.
• Made from strong & weather-tough type 316 stainless.
• Can be used on new or existing wood or metal railing frames.
• Standardized, pre-fab assemblies save time and money when ordering and installing.
• No special crimping tools needed.
• Sender and compact fittings require smaller drill holes.
• Affordable & very low maintenance.
• Special, easy-to-use end fittings are hidden in the end posts.
• Versatile uses: railings, fences, trellises, exteriors, interiors, commercial, residential.
• CAD drawings & 3-part specs available.
• Easy to order with assemblies in stock and ready for fast UPS delivery.
• Toll free information & assistance phone, 1(800) 888-2418.

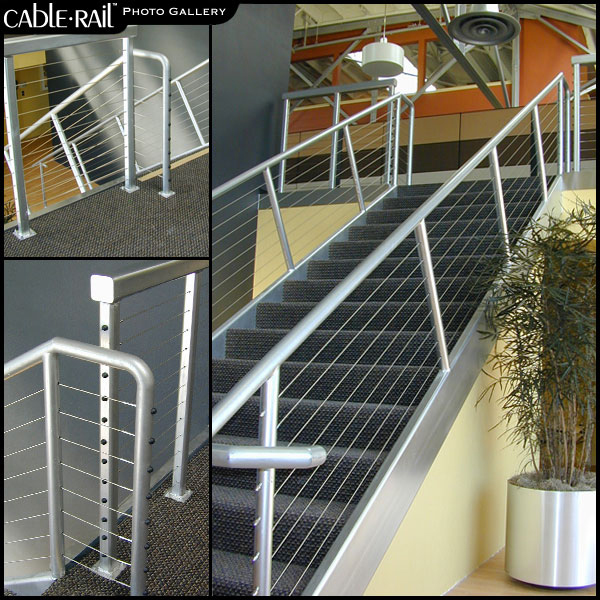

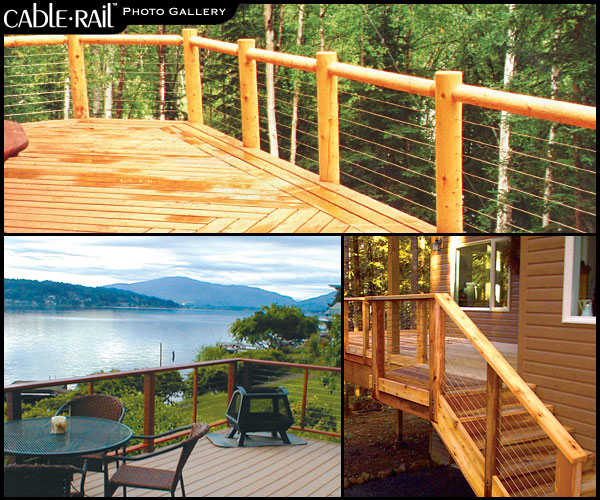

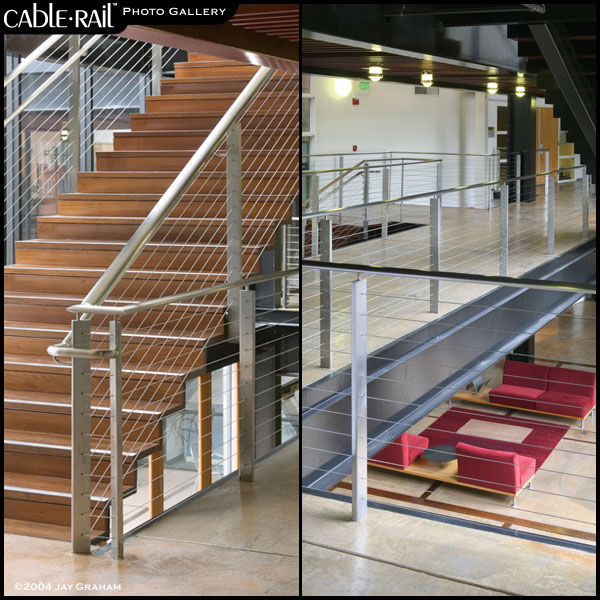

Uses and Applications:
CableRail^™ Standard Cable Assemblies can be used as infill on railings, fences or even trellises in interior, exterior, residential, commercial or industrial settings. Plus, their slender profile, compact fittings and attractive stainless steel materials blend well your new or existing wood, steel or aluminum railing frames. The weather-tough, durability of type 316 stainless steel is also perfect for installations in harsher, coastal environments. Please note that the CableRail cable assemblies should never be used for lifting, hanging or other high load applications.

• 1/8" Standard Assemblies: Our most popular size. Their slender profile, easy installation and affordability make them the ideal selection for all residential and light commercial installations. Available with either a 4-1/4" or 7-1/2" Threaded Terminal for use on metal or wood railing frames.
• 3/16" Standard Assemblies: Extra durable option for all commercial projects. They may also be used for certain residential projects where high traffic or design aesthetics require a larger diameter cable. Available with either a 4-1/4" or 7-1/2" Threaded Terminal for use on metal or wood railing frames.
• 1/4" Standard Assemblies: These extra heavy-duty assemblies are used almost exclusively for higher traffic commercial or industrial settings. Only available with a 4-1/4" Threaded Terminal for use on metal frames; generally not recommended for wood frames.

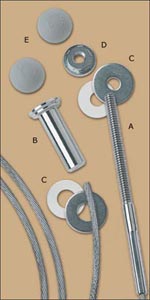

1. A selected length of cable with a Threaded Terminal pre-attached on one end.
2. 1 QuickConnect-SS™ fitting.
3. 2 stainless flat washers (or 2 nylon flat washers if using assemblies for metal posts).
4. 1 stainless Snug-Grip ™ washer-nut.
5. 2 colored end caps (black, white, gray or brown color options).

Note: stainless end caps are available as an accessory option.

The table below shows the available assembly lengths and corresponding part numbers. We also offer custom lengths, so please ask if you don't see what you need.

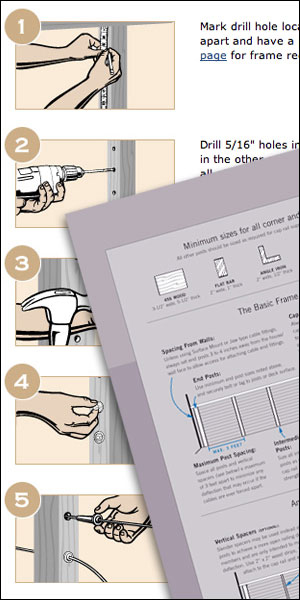

Assembly and Installation:
One of the key benefits to using CableRail™ Standard Cable Assemblies is the ease and speed of installation. Pre-fabricated standardized assembly lengths, QuickConnect-SS™ fittings, smaller drill holes and the ability to rough measure and field trim make ordering and installing a snap. Plus, you won't need anything more sophisticated than an electric drill, wrench and some cable cutters.

CableRail^™ Standard Cable Assemblies are designed to be laced horizontally through holes drilled in the end and intermediate posts of your railing frame and then tensioned on opposite end posts with the Threaded Terminal and QuickConnect-SS^™ fittings. Straight runs of cable should not exceed 70 feet, and runs with corner bends (maximum 2 corners) should not exceed 40 feet. Standard assemblies must not be strung back and forth like a shoe lace; instead each horizontal cable must be a separate assembly. Also, they are not recommended for vertical infill; if you require vertical cable infill systems, please give our sales team a call at 1-800-888-2418 for cable and hardware recommendations.

Since cables are under tension, special care must be taken to adequately design and construct your railing frame to ensure proper frame strength. Click on the Sweets CAD Library in the left column to see frame construction recommendations and installation details or visit our CableRail^™ website www.cablerail.com for more complete information on installation steps, frame recommendations, part lists, job photos as well as 3-part specs and detail drawings.

Also, proper spacing of the cables and posts is critical to minimizing cable deflection. We recommend a 3-inch maximum spacing between cables and a 3-ft maximum spacing between posts or vertical members. Be sure to consult local building departments to see if there are any special requirements for using and installing cable railings.

Several accessory items are available that can improve performance, ease installation or add a finished detail. Protector Sleeves can be used on wood posts to prevent abrasion at all cable transition points (i.e. stairs/landing transitions or outside faces of double corner posts). Beveled Washers provide a flat bearing surface for end fittings at angled holes on stair end posts. Stainless End Caps offer an attractive, decorative option for covering and finishing the end fittings.

Materials & Finishes:
CableRail™ Standard Cable Assembly cables are a 1x19 construction made from type 316 stainless steel with a commercial dry polished finish. Threaded Terminal swage fittings and QuickConnect-SS™ housings are also type 316 stainless with a smooth machine finish for weather-tough durability and lasting beauty. Colored End Caps are polyethylene and come in 4 color options: black, white, gray and brown. Stainless End Caps are manufactured from type 316 stainless and come if 3 styles: dome, crown and chamfer.

Technical Support:
Specs and CAD detail drawings are always available through Sweets CAD Library or at our CableRail™ website www.cablerail.com. Plus our sales/support staff is available M-F, 5am-5pm (Pacific) to answer product, design and technical questions and supply available testing and engineering data.

Codes & Certification:
Codes: CableRail™ Standard Cable Assemblies comply with IBC & IRC 2006 code requirements for guardrail infill. Since building codes can vary significantly by state, city and county, we always recommend consulting with your local building department before starting your project.

Warranty: Feeney warrants that all CableRail™ stainless steel cable and connectors shall be free from defects in material and workmanship under normal use, conditions, installation and maintenance in accordance with product specifications for ten years from date of purchase. The complete text of this warranty is available on our CableRail™ website www.cablerail.com.

Environmental Data:
CableRail™assemblies are environmentally friendly:

• Stainless steel cables and fittings are completely recyclable(LEED points).
• Products are lightweight for easier handling and lower shipping costs (less fuel).
• Long lasting, weather-tough materials and finishes require very little maintenance: no need for stains, paints, varnishes or preservative that may use toxic chemicals.
• Cables can be used to design custom energy saving trellis and landscape shading systems (LEED points).

Availability & Cost:
Availability: CableRail™ Standard Cable Assemblies are typically in stock in our Oakland, CA facility and may be ordered directly through our Oakland, CA, San Diego, CA, or Eugene, OR sales offices. Orders are usually processed, packaged and ready to ship within 3-5 working days after receipt of order. Most orders ship via UPS with overnight, 2^nd day and 3^rd day delivery options available at an additional cost. Large orders are boxed, palletized and shipped by truck, freight collect.

Cost: Assemblies are individually priced based on cable size and length. Current retail prices are available on our CableRail™ website www.cablerail.com or by calling our sales department at 1-800-888-2418. We do offer discounts to licensed architects, contractors and fabricators, so please be sure to ask when submitting for quotes or ordering.

1. Carefully Review: read all of the installation instructions, frame recommendations and details pages on our website www.cablerail.com.
2. Section Frames: divide your railing frame into sections by determining which corner and end posts will be the cable termination posts. Remember that straight runs should not exceed 70 feet and runs with bends (2 bends at most) should not exceed 40 feet.
3. Determine Lengths: measure the outside lengths of each of your sections from step 2 and select the cable assembly lengths that will fit each section. Be sure that the assemblies are at least 1 foot longer than the measured length of the section.
4. Calculate Quantities: the number of assemblies depends on your railing design. Remembering that each horizontal cable is a separate assembly and that the cables should not be spaced further than 3 inches apart, calculate the quantities needed for each of your assembly lengths.
5. Check Accessories & Tools: count up all the protector sleeves, rubber grommets, beveled washers, stainless end caps, cutters, drills, saws, lacing needles and cleaner you may need.
6. Place Your Order: go to the parts: assemblies and parts: accessories & tools pages on our website www.cablerail.com and place your order on-line or place a phone order at 1-800-888-2418. You should receive your order within 7-10 working days via UPS. Expedited processing and shipping options are available.

• Clean stainless frequently with soap and water. Any cleaner safe for glass is usually safe for stainless. Never use mineral acids or bleaches.
• Never leave stainless in contact with iron, steel or other metals. This can cause rust spots or corrosion.
• Always remove stains or rust spots as soon as possible with a brass, silver, stainless or chrome cleaner. Irreversible pitting will develop under rust spots that remain on stainless for an extended period of time.
• Never use coarse abrasives like sandpaper or steel wool on stainless. Use synthetic Scotch type pads instead.
• Frequently inspect the cable assemblies for proper tension, and re-tension as necessary. This is important.
