Durable, versatile, and affordable, Reynobond® Aluminum Composite Material (ACM) is used around the world in a wide range of architectural and specialty applications.

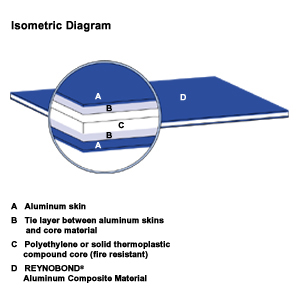

As shown in our isometric diagram, Reynobond® ACM consists of two sheets of corrosion resistant aluminum permanently bonded to an extruded thermoplastic core material.

This simple composite concept results in an extraordinarily flat, strong, and highly formable material suitable for a multitude of exterior and interior applications.
Architectural applications include:

Exterior cladding
Column covers
In-fill panels
Fascias and canopies
Clean rooms
Interior wall and partition panels
Equipment enclosures and beam wraps
Trim and accents
Soffits
Parapets
Louvers and sun shades
Cornices

Specialty applications include corporate identity signage, canopies, displays, exhibits, kiosks, ATM machines, and unique product designs.

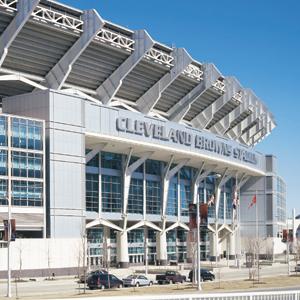

Cleveland Browns Football Stadium,
Cleveland, Ohio

Panel Types: Reynobond® ACM RB240 PE
Quantity: 100,000 square feet

Architects: HOK Sport, Kansas City, Missouri
Robert P. Madison, Cleveland, Ohio

The design of Cleveland Browns Stadium began with a single directive: create an extraordinary facility that captures the spirit of the city and its people while reacting and interacting with its context.

Taking cues from the functional simplicity of huge cranes used to empty ships at nearby ports, HOK Sport created a steel perimeter with whole pieces cut away to create a feeling of openness. More than 100,000 square feet of 6mm Reynobond® Aluminum Composite Material panels were used to clad the structure, providing incredible strength and durability. When combined with the structural steel, concrete, glass, precast concrete and granite accents also used in the stadium, the bright silver panels created a stunning visual effect.


Alcoa Architectural Products
50 Industrial Blvd
Eastman, GA 31023
Toll Free: (800) 841-7774
Tel: (478) 374-4746
Fax: (478) 374-7041
Web Site: http://www.alcoaarchitecturalproducts.com
