Pit Mounted Dock Lifts

Series T2000, 3000, and 4000 pit mounted dock lifts are installed in a concrete pit in the ground or a pit on top of a raised concrete dock. They can also be installed on top of the ground, but they require a long approach ramp. Platform sizes range from 6’ x 8’ to 8’ x 12’. Capacities range from 5,000 to 20,000 lbs. T-50608 is the number one dock lift in the country. Model 2400 is a specialized dock lift designed to fit into most dock leveler pits and accommodate a wider range of vehicles than a dock leveler.



LIFT
  • Bridge safety lifting chain
  • Minimum 8" solid steel bevel toe guards
  • Baked-on primer and enamel paint finish with a choice of 8 colors
  • Safety tread steel deck
  • Removable steel handrails with mid-rail, 4" kick plate, and personnel safety restraint chains (aluminum rails optional)
  • Hinged bridge
  • 10-year structural warranty
  • Hydraulic cylinders with internal safety stops, 100,000 psi chrome plated rods and safety flow control valves in each cylinder
  • Scissors legs
  • Wide stance baseframe
  • Hydraulic final filter on the lift itself to protect the cylinders
  • Neoprene covered wire braid hoses
  • SAE/JIC hydraulic fittings
    Removable 100,000 psi chrome plated axles and shafts with lifetime lubricated bearings

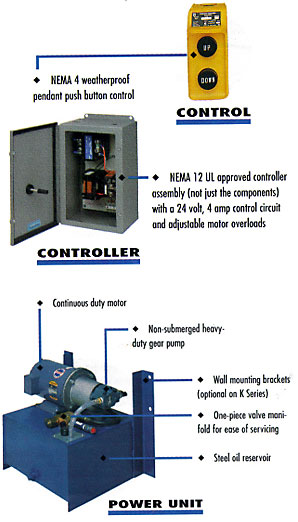

CONTROL
  • NEMA 4 weatherproof pendant push button control
CONTROLLER
  • NEMA 12 UL approved controller assembly (not just the components) with a 24 volt, 4 amp control circuit and adjustable motor overloads
POWER UNIT
  • Continuous duty motor
  • Non-submerged heavy-duty gear pump
  • Wall mounting brackets (optional on K Series)
  • One-piece valve manifold for ease of servicing
  • Steel oil reservoir

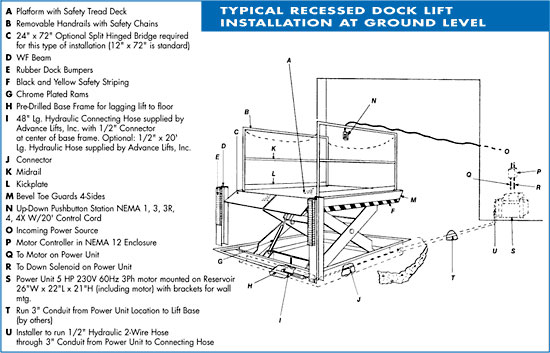

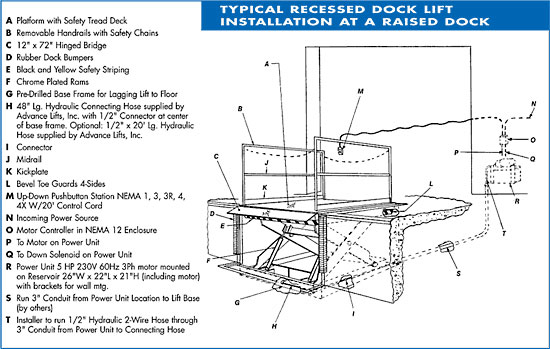

INSTALLATION NOTES
  1. Downloadable electronic drawing files are available in the CAD Library.
  2. Consult factory for pit diagram for optional wheel chock.
  3. Reinforce concrete to suit local soil conditions.
  4. All pit work and materials shown are the responsibility of owner or his agent (by pit contractor).
  5. Installer to run 1/2" diameter hose(s) through 3" conduit from power unit to lift base.
  6. Dimension tolerances are plus 1/4" minus 0" (+1/4"-0").

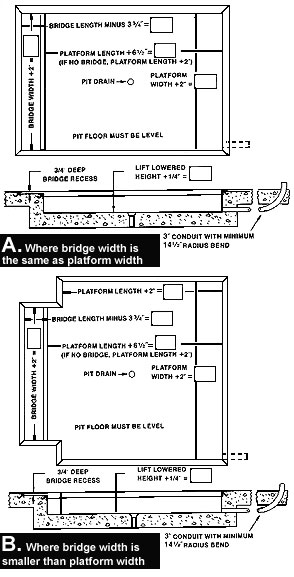

  7. 180 degree steel hinge bridges require a bridge recess length equal to bridge length minus 2-3/4".
  8. 180 degree aluminum hinge bridges require a bridge recess length equal to bridge length minus 3-3/4" and a pit length equal to platform length plus 7-1/2".
  9. Consult factory for bridges longer than 30". (18" on 4000 Series).
INSTALLATION BILL OF MATERIALS
  1. 3" x 3" x 1/4" curb angle as required.
  2. One (1) 3" conduit from power unit location to pit.
  3. One (1) Advance Model _______________.
  4. One (1) electric disconnect switch for 5HP or 7-1/2 HP motor.
  5. Ten (10) gallons Dextron III ATF hydraulic fluid.
  6. One (1) 1/2" SAE 100R2 hydraulic pressure hose from power unit location to lift base -- 1/2" male #8JIC pipe threads both ends (two hoses required for 4000 Series).
  7. Concrete anchor bolts and material for shimming and/or grouting.

*Seller furnishes Advance Lift only unless otherwise agreed to in writing.

TECHNICAL

Pit mounted dock lifts have a travel of 58" unless shown otherwise.

OPTIONAL ACCESSORIES
  1. Hinged Steel Bridges: (one standard bridge included in lift price)
    1. 12"x72" (Series T, 2000, 3000, 4000, 11-600)
    2. 24"x66" aluminum bridge (USPS bridge for Series T, 2000) in lieu of std. bridge
  2. Handrails and Safety Chains: (included in lift price)
  3. Automatic Mechanical Wheel Chock:
    1. (Series T, 2000, 3000)
    2. (Series 4000)
  4. Night Locks in lieu of handrails (Series T, 2000, 3000, 4,000)
  5. Electric:
    1. NEMA 1 wall mount push button
    2. Weatherproof pendant push button - included in lift
    3. UP-DOWN selector switch, key operated
    4. UP-DOWN push button with key lockout
    5. Electric limit switch mounted
    6. Warning light
    7. Two second warning bell - USPS
    8. 5 HP-230v/60Hz/single phase power unit add-on (Series T, 2000, 3000)
    9. Single phase operation - (230/60/1)
    10. Oil reservoir immersion heater
    11. Electric toe guards for 6' x 8' platform (Series T, 2000, 3000, 4000)
    12. Additional electric toe guard over base 28 linear feet
  6. Hydraulic:
    1. Hydraulic velocity fuses
