CULLIGAN INTERNATIONAL COMPANY
9399 West Higgins Rd.
Suite 1100
Rosemont, IL 60018
Toll Free: (800) CULLIGAN
Web site: http://www.culliganmatrixsolutions.com
- 24 Volt MVP™ Controller — Field programmable with a back-lit
LCD display and UL listed 120v/24v transformer.
- Single, Duplex, Triplex, or Quad Softener Configurations — Hardness
removal capacities up to 210,000 grains per tank, and continuous flow rates
up to 33 gpm per tank.
- Regeneration Cycle — Standard flow meter starts cycle after preset
volume of water has been softened. Flow meter is accurate down to 0.5 gpm.

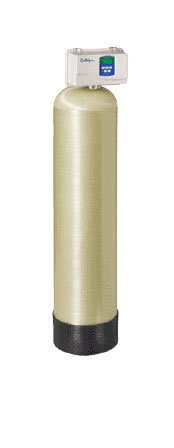

- Corrosion Resistant Tanks — Made from fiberglass reinforced polyester.
Additional reinforcement from continuous fiberglass overwrap. Underdrain design
maximizes softener’s capacity, reduces pressure loss.
- Corrosion Resistant Positive Motor-Driven Regeneration
Valve — Motor
driven piston is reliable under severe water conditions, resists dirt, iron,
turbidity.
- Choice of Granular Activated Carbon or mixed media depth filters.
- NSF 61 Rating
- RO/DI Pretreatment
- Apartment buildings, assisted living facilities and
hotels — Quality
water for laundry, dishwashers, boilers.
- Office buildings — For heating plant pretreatment, tenant convenience,
general housekeeping.
- Restaurants — For dishwashing, cleaning material savings, scale
reduction, superior taste and increased cost savings.
- Car washes — Quality results, detergent and water heating savings,
scale reduction, turbidity reduction.
- Light industry — For process and make-up water, boiler and cooling
system pretreatment, general housekeeping.
- Drinking Water — Reduces turbidity and chlorine; improves taste
and clarity.
- Battery Backup — The optional battery backup will maintain the
time of day for a minimum of 4 weeks using a 3.6V 1/2AA-lithium type battery
as supplied by Culligan.
- Regeneration Start Delay — A user determined number of hours (up to
9) can be input for the purpose of increasing time between multiple regeneration
initiations.
- Progressive Flow Trip Point — Use of this patented feature allows
multiple tank systems operating with water meters to be brought online or offline as facility flow
demands increase or decrease.
- Flow Meter/Sensor Input — Built-in flow sensor can be used to measure
the amount of treated water provided and initiate a regeneration sequence.
- Segmented Brine Draw/Rinse Cycle — Brine Reclaim Capability
- allows the user to configure the system for brine reclaim with a minimum
of additional valves and/or other types of hardware.
- Auxiliary Input — capable of accepting a remote signal from a dry
contact device such as an operator push-button for the purpose of initiating
the regeneration sequence.
- Auxiliary Outputs —Two auxiliary outputs can be programmed to be
active or deactive at any point of the regeneration process.
- Dubl-Safe™ Brine System for softeners—Positive overfill
protection. Automatic refill control is backed up by shutoff float valve to
minimize chance of overflow.
- Patented Progressive Flow – Culligan’s MVP™ Control
can monitor flow demands bringing additional softening tanks on-line or offline
as flows increase or decrease.
- Patented Aqua-Sensor® Control – Initiates regeneration only
when needed based upon water hardness. Automatically adjusts to changes in
raw water hardness and water consumption - softener only.
- Pressure Differential Switch for filters.
- Bypass valve.
Culligan’s Hi-Flo® 22 water softeners and filters are
backed by a limited 1-year warranty against defects in materials, workmanship,
and corrosion. The plastic conditioner tank has a 5-year warranty. See printed
warranty for details.*
Some localities have corrosive water. A softener cannot correct this condition,
so its printed warranty disclaims liability for corrosion of plumbing
lines, fixtures, or water-using equipment. If you suspect corrosion, your independently
operated Culligan® dealer has equipment to control the problem.
*See printed warranty for details. Culligan will provide a copy of the warranty
upon request.
|
