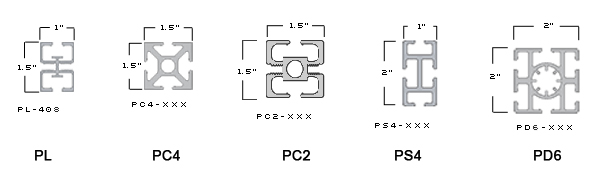

Rakks Support Poles are made of extruded aluminum with channels that accept Rakks Shelf Support Brackets. Poles are available in 4 profiles to meet a wide range of storage and shelving applications. The infinite adjustability of shelf brackets eliminates the need to level or shim poles. Anodized aluminum finishes provide a clean and chemically resistant finish.
PL WALL STORAGE POLE Used for creating wall units with shelves and/or cabinets in conjunction with a supporting wall. Poles with spring loaded hardware install under compression between the floor and ceiling, or they can be tied back to the wall. Front channels accept shelf brackets; side channels accept 1/4-20 screws to mount cabinets. PC4 COMPRESSION SUPPORT POLE Used for creating shelving units with or without a supporting wall. Adjustable non-skid/non-marking mounts allow pole to be installed under compression between floor and ceiling. When used as a room divider side channels can accept 1/4" decorative panels. PC2 SUPPORT POLE Used for creating shelving units with or without a supporting wall. Adjustable threaded mounts allow pole to be installed under compression between floor and ceiling. Threaded side channels accept 1/4-20 screws to mount L-Brackets or cabinets. C channels accept all other Rakks brackets and pole accessories. PS4 SINGLE SUPPORT POLE Used for floor to ceiling or through counter applications in laboratories and retail stores. Pole can also be used to create framing and panel systems incorporating 1/4" decorative panels. PD6 DOUBLE SUPPORT POLE This pole provides additional strength and versatility in shelving applications. Double channels allow for independent support and adjustability for shelves. Extra strength provides maximum rigidity in through-counter applications.

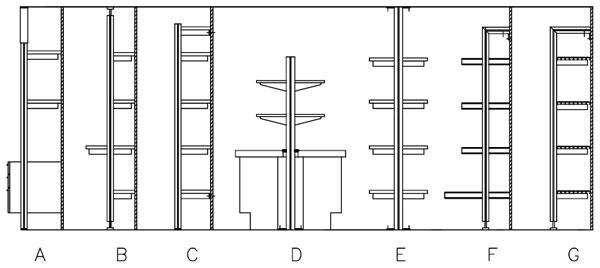

POLE MOUNTING CONFIGURATIONS A. Spring compression with supporting wall (floor
to ceiling). B. Threaded compression with or without supporting
wall (floor to ceiling). C. Tied back to a supporting wall. D. Integrated into counter or laboratory casework. E. Secured by anchor brackets and screws (floor to ceiling). F. L-Bracket tied to a supporting wall with mitered tie-pole and anchor brackets. G. Rakks brackets tied back to a supporting wall with mitered tie-pole and anchor brackets. POLE COMPONENTS Rakks Pole Components expand and enhance the configuration options of our pole-supported system. Using anchor brackets, spline connectors, and channel nuts, poles can be joined or supported in an infinite variety of combinations. Custom structures and displays can be easily created using ready available components. additional information available at rakks.com |
