Rangine Corporation/Rakks 330 Reservoir Street Needham, MA 02494 Toll-Free: (800) 826-6006 Fax: (781) 455-8702 E-mail: sales@rakks.com Web site: http://www.rakks.com
Rakks Wall Standards are made of extruded aluminum with precision channels that accept Rakks Shelf Support Brackets. Standards are available in five profiles to meet a variety of surface and recess mounted applications. Standards can be specified in any length up to twelve feet. Standards come with drilled and countersunk holes to accept color matched mounting screws (No. 6 x 1 1/4" Philips flat-head), which are included. When properly installed, screw heads are flush with the back of the channel allowing shelf brackets to be positioned at any point. Standards must be screwed into studs, blocking, or into wall anchors sized for No. 6 screws. Toggler® Brand AF-6 wall anchors are recommended. Brackets should be mounted at least 6" from the top of the standard to better distribute the load. Shelf brackets can be mounted at the very bottom of a standard.

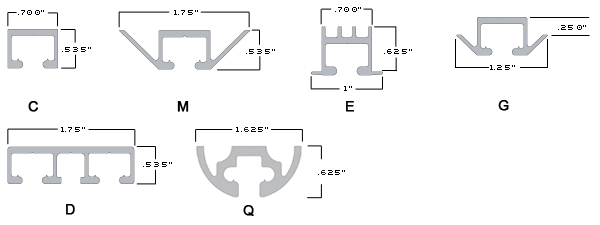

C-STANDARD Our most basic extruded aluminum wall standard used for either surface or recess mounted applications. M-STANDARD A decorative profile used for surface mounted applications. The 1 3/4" wide profile and flared sides make a dramatic vertical statement. E-STANDARD An extruded aluminum wall standard designed to be recess mounted between 5/8" drywall panels. The front flanges cover the rough-cut edge of the drywall. G-STANDARD Designed to be mounted between 1/4" glass mirror or wood panels. The front flanges cover the panel edge. D-STANDARD Two channels allow for independent adjustment of shelves in both continuous and staggered configurations. Q-STANDARD A decorative profile designed for heavy-duty application. With Rakks Style Support Brackets (BR & TB) load capacities are increased by 25%. Supplied with 2" screws and twin mounting holes at each end. additional information available at rakks.com |
