CityScapes International Envisor®-NO ROOFTOP PENETRATION EQUIPMENT SCREEN Customer Service 4200 Lyman Court Hilliard, OH 43026 Tel: 877-727-3367 Fax: 800-726-4817 E-mail: roofscreens@cityscapesinc.com Web site: www.cityscapesinc.com PRODUCT PRESENTATION Envisor is an equipment screening system. The components are modular by design to allow for user-friendly installation. Each screen ships as a knockdown assembly. The impact resistant ABS plastic is durable and weather resistant. Combined with the sturdy aluminum frame construction, the finished assembly is maintenance free and lightweight. Each Envisor application is engineered to withstand windloads in excess of standard BOCA requirements. The most notable of Envisor's design features is the patented install technique that requires no rooftop penetration. Installation is accomplished by attaching support elements directly to the HVAC and related equipment. This feature also properly considers each unit's airflow requirements, as well as any custom performance accessories. Envisor's ABS plastic panels can vary in height, width, finish and color depending on their application, and the desired architectural aesthetics. The metal framing components are extruded or fabricated aluminum, and exposed parts are painted with a complimentary color. A three part architectural specification is available in this site, or in our company website. Our engineered drawings are generated in AutoCAD, with electronic conversions available for download. Since each Envisor equipment screen is reviewed and evaluated specific to each application, allowances can be made for the customizing of an RTU with performance accessories like exhaust flues, economizers, power exhausts, smoke detectors, etc. Envisor equipment screens are available in three styles: Canted - sloped side panels and 45-degree corners Vertical 45 - vertical side panels with 45-degree corners Vertical 90 - vertical side panels with 90-degree corners See below for an illustration of all three styles. USES and APPLICATIONS To select the appropriate screen for your RTU, contact CityScapes, Inc. Customer Service at 877-727-3367. CityScapes receives numerous inquiries about other types of rooftop accessories (i.e. exhaust hoods, fans, communications equipment etc.) and often can accommodate. Please call for more information.

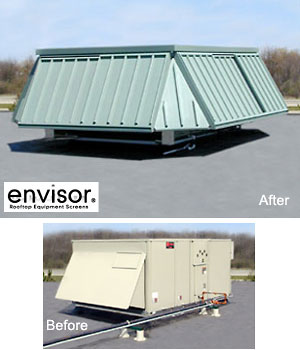

PRODUCT in PLACE
CityScapes has engineered the Envisor product to have minimal impact on all rooftop equipment. CityScapes has worked with all the major equipment manufacturers in evaluating and adapting the product to meet their requirements. Most applications involve attaching only to the unit’s corners, utilizing similar fasteners to those that the unit cabinets incorporate. A rubber grommet is provided at point of penetration to ensure a proper seal.
The most obvious benefit Envisor presents is the lack of rooftop
penetration. Membrane roof repairs can prove to be costly, but not where
Envisor product is installed.

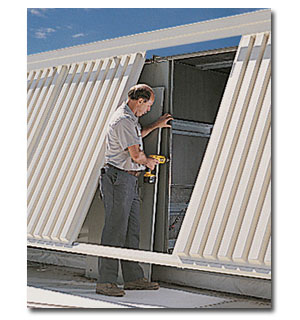

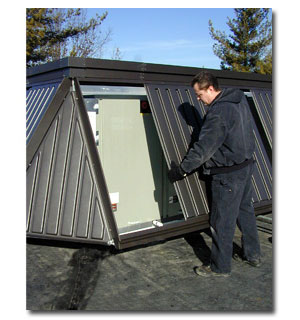

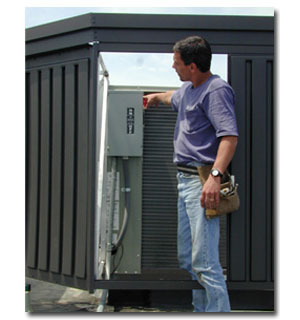

Service to the unit is simple. The panels utilize a double tracked
bypass system for instant access. All of the panels can be removed in a
matter of minutes by simply removing end cap retainers.
ASSEMBLY and INSTALLATION
Each Envisor screen arrives as "knock down" kits that will require some field assembly of the structural components, i.e. Corner Assemblies, Midspans and Extensions. "Typical" Installation of a Canted Style Envisor Screen on a 25-ton
RTU
Because RTU (Rooftop Units) very greatly in size, construction, and performance features, our engineers will evaluate the RTU's specific to a jobsite, to determine if we need to provide any additional components to accommodate these features. We have designed the Envisor products to be versatile enough that they can be field modified for adapting to most minor unforeseen field conditions. Some additional variables that need to be considered once an Envisor
shipment has arrived:

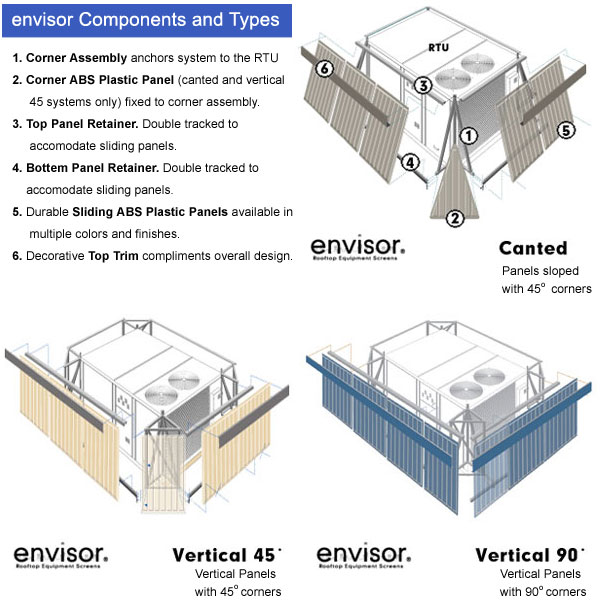

If you have additional questions about installing Envisor equipment screens, or wish to have us quote or arrange an installation, please call 1-877-SCREENS. COMPONENTS and PARTS

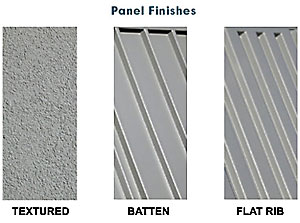

Panel Finishes
|

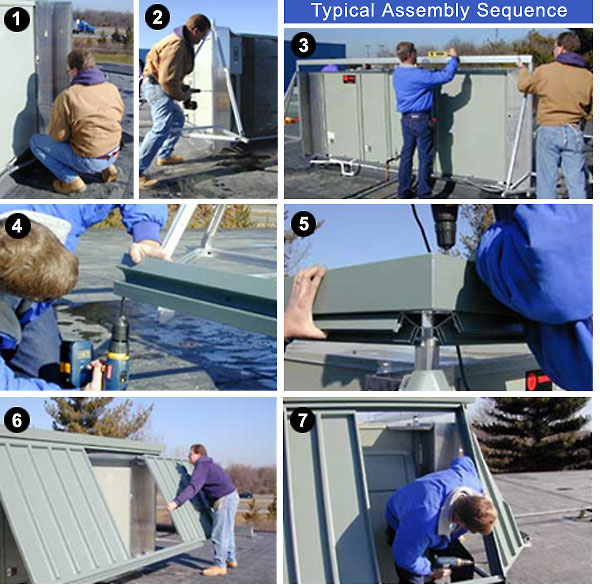

Photo Captions for Installation Sequence:
MATERIALS and FINISHES

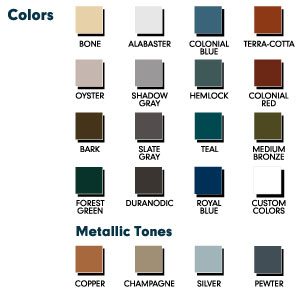

Colors
