Arcadia ARC-8250
(a.k.a. NC 82 STH) Hinged Terrace - Garden Door

Arcadia's ARC-8250 Hinge Terrace - Garden Door is designed to meet the most demanding specifications both aesthetically and technically.

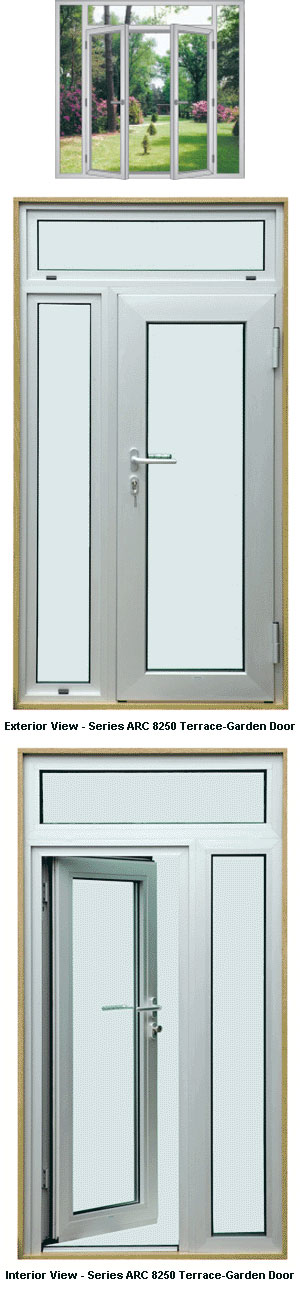

Fully tested, according to AAMA-WDMA-CSA specifications and Large Missile Impact TAS 201/202/203-94 setting new standards in performance. Design features include a rain screen principal, EPDM gaskets, adjustable heavy duty hinges, multipoint locking hardware, polyamide thermal barrier, mitered corners reinforced with heavy duty corner keys for sturdy construction, and much more. Available as single and double French type doors, inswing or outswing, with or without sidelights and/or overhead transoms offering flexibility in design.

The following stock finishes are available:

• Clear Anodized Finish - Class I (215-R1)
• Dark Bronze Anodized Finish - Class 1 (215-R1)
• Duracron or Polycron Standard White - Baked on enamel paint
• Duracron or Polycron Standard Quaker Bronze - Baked on enamel Duracon paint

Other custom anodized and Duranar-Kynar 70% finishes are available upon request and will be quoted according to quantities ordered and are subject to minimum square footage requirements.

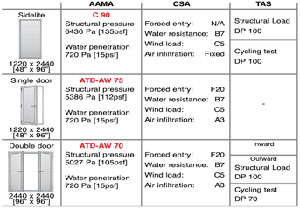

Tested according to AAMA/WDMA/CSA/101/I.S.2/A440-05 and Large Missile Impact TAS 201/202/203-94 standards, Arcadia's garden doors achieved unrivaled performance levels.

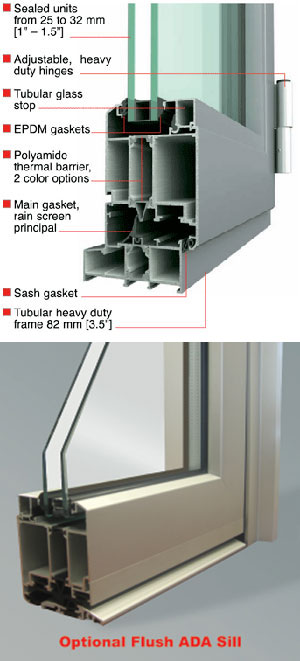

Arcadia's ARC-8250 system designed by Metra S.p.A of Italy offers the most advanced technology in thermal isolation. Tubular design aluminum profiles in combination with two continuous glass reinforced polyamide thermal struts significantly reduce thermal conductivity value and improves acoustical performances. In addition to thermal-acoustic properties, it allows 2-tone colors on its door for greater flexibility in design.

• Easy maintenance
• Acoustic and thermal insulation
• Various opening solutions
• High quality design
• Strong and durable
• Custom finishes available
• AW grade
• Tested

The ARC-8250 door is also available as an impact resistant product fully tested under Large Missile Impact TAS 201/202/203-94 test standards. For specific details, glazing methods and configuration availability, please contact our office directly.

Arcadia & Metra stands for quality and optimal performance. Take no substitute, demand original Arcadia & Metra profiles, aprts and accessories, only they an certify the highest performance. Original products are identified with a "M" mark present on the internal part of profiles. Metra S.p.A. is one of the first companies in its field to introduce a recognizable trademark to protect their consumers. Metra S.p.A. is proud to partner with Arcadia Architectural Products in their efforts to market and produce this fantastic product.
