 Drainable blade louvers achieve optimum air performance and water penetration
ratings with vertical and horizontal gutter systems that capture droplets before
they cascade from blade to blade and are entrained in the airstream. Dual drain louvers incorporate two gutters to accelerate the removal of water
from the louver. Specify Louver Types K6846 and K6856 with standard mullions or
Louver Types CB6846 and DRM6856 with continuous blade or recessed mullion
arrangements. Airolite Architectural Louvers are assembled entirely by welding to ensure
optimum strength and durability required to resist vibration damage and
eliminate the potential for galvanic corrosion. Fluoropolymer and anodized
finish coatings are applied to Airolite Architectural Louvers only after each
product is weld-assembled to ensure that all exposed edges and surfaces received
maximum protection.

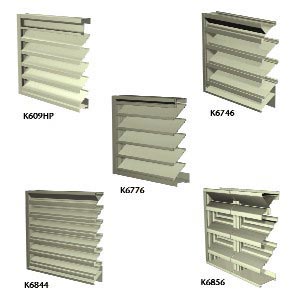

| Extruded Aluminum Drainable & High Performance
Louvers | Drainable Blade | Louver Depth | Blade Thickness | Frame Thickness | Free Area | Water Penetration
Rating cfm (m3/s) | K6774/CB6774 | 4" (101.6 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 53% | 9,324 (4.40) | K6776/CB6776 | 6" (152.4 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 57% | 11,375 (5.37) | K6846/CB6846 | 6" (152.4 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 51% | 10,200 (4.81) | K6856 | 6" (152.4 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 49% | 7,927 (3.74) | K609HP/CB609HP | 4" (101.6 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 55% | 6,520 (3.08) | K638HP/CB638HP | 4" (101.6 mm) | 0.081" (2.06 mm) | 0.081" (2.06 mm) | 47% | 7,457 (3.52) | K6386HP | 6" (152.4 mm) | 0.125" (3.18 mm) | 0.125" (3.18 mm) | 50% | 8,656 (4.09) | | See attached data sheets for physical characteristics and
performance data |
Airolite urges specifications that address each of the
following points to minimize conflicts in bidding and assure an installation in
accordance with the designer’s intent. Please refer to the attached 3-part
specification for further information.
1. Louver Type Selection
a. Extruded Aluminum Drainable Blade Louvers -
visible mullion
b. Extruded Aluminum Drainable Blade Louvers - continuous
blade
c. Extruded Aluminum Dual Drain Louvers - visible mullion
d.
Extruded Aluminum Dual Drain Louvers - continuous blade 2. Material Selection
a. Extruded Aluminum (Alloy 6063-T5) 3. Method of Assembly
a. All-Welded Assembly 4. Screen, Blank-Off & Insulated Panels
a. Screen Selection
1.
Insect Screen
2. Bird Screen
b. Screen Frames - Removable extruded
aluminum
c. Blank-Off & Insulated Panels
d. Air Filters & Filter
Frames 5. Louver Accessories
a. Special Shapes - Not Recommended.
b.
Hinged/Removable Louvers and Subframes
c. Frame Closure
d. Security Bars 6. Method of Installation
a. Explosion Relief Fasteners
b. Blind
Mounting
c. Jamb Fasteners
d. Strap Anchors - Not Recommended
e.
Flat Flange
f. Clip Angle/Continuous Angle
For more than 85 years, Airolite
has served as the innovative leader in the design and manufacture of
architectural louvers, grilles, screens and sun controls. Contact us at
www.airolite.com or 740-373-7676.
|
