Ferrobond

Steel-filled, structural adhesive putty.

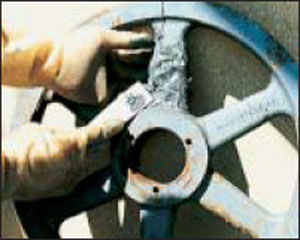

Restoring metal, bonding broken sections, and building up missing sections has never been easier. The Mastershop series of metal-filled epoxy compounds offers the latest technological improvements and convenient packaging.

Uses: The Mastershop Series epoxies are recommended for permanent bonding, patching, resurfacing, and filling of metallic, ceramic, glass, and other rigid surfaces; maintenance of tanks, pipelines, off-shore rigs, and manufacturing plants; repairing land, air, and marine vehicles, housing, metal furniture, engines, pumps, and transformers; rebuilding frames, sinks, and structures; patching and resurfacing castings, patterns, pipes, pumps, work surfaces, and heavy traffic metal floors and decks; building patterns, fixtures, machinable tools, molds, pipes, benches, ship decks, bulkheads, hulls, stacks, railings, and masts.

Features & Benefits: The Mastershop compounds are versatile, high-impact and wear resistant, and permanent. Unmatched adhesion to metals, ceramics, glass, wood, fiberglass, masonry, and most rigid materials. Dimensionally stable and shrink-free. Almost unlimited shelf-life. Unaffected by atmospheric conditions, salt and fresh water, alkalis, diluted acids, many solvents, oils, and greases. Withstand temperatures up to 100° C (212° F) or 160° C for the "H" versions. Cured material is easy to machine with standard tools. Can be applied in any thickness. Ample working time.

Coding Chart

P = Paste
PH = High Temperature Paste
L = Liquid
LH = High Temperature Liquid
PBW = Parts By Weight
PBV = Parts by Volume

Ferrobond-P: Steel-filled, structural adhesive putty. Repair or fill metal components, castings, tanks, and magnetic fixtures. Preferred to Metalfix-P where heavier weight, magnetism, or highest heat transfer are the main criteria.

Technical Characteristics: A: 26 lbs/gal; B: 8lbs/gal; mixing ratios: A/B: 9/1 pbw (10/3.6 pbv); pot life: 1 hour; dark gray; latest "steel plastics" alloy.

Ferrobond-PH: Ferrobond-PH for up to 320° F (160° C) under stress. Superior resistance to strong solvents and other chemicals. For resistance up to 160° C in operation.

Technical Characteristics: A: 26 lbs/gal; B: 9.8 lbs/gal; mixing ratios: A/B: 100/5.5 pbw (100/14.5 pbv); pot life: 5-8 hours; dark gray. Requires heat cure: 1-12 hours at 176-302° F (80-150° C).

Ferrobond-L: Fluid pourable Ferrobond-P. Casting version of Ferrobond-P. Choose when flowing consistency is needed for pouring. Excellent for tooling.

Technical Characteristics: A: 23 lbs/gal; B: 8lbs/gal; mixing ratios: A/B: 9/1 pbw (100/32 pbv); pot life: 1 hour.

Ferrobond-LH: Ferrobond-L for up to 320° F (160° C) under stress; Superior resistance to strong solvents and other chemicals.

Technical Characteristics: A: 23 lbs/gal; B: 9.8 lbs/gal; mixing ratios: A/B: 100/6.9 pbw (100/16.1 pbv); pot life: 5-8 hours; dark gray. Requires heat cure: 1-12 hours at 176-302° F (80-150° C).
