Flashings

Sheet Metal Flashings 1000 Series: Heckmann custom fabricates flashings from Stainless Steel and Mill Galvanized in 11 gage to 26 gage, 16 oz. Copper, and .032" (.8128 mm) Aluminum.

Flashing rolls, which can be cut at the jobsite, are available in .010 and .015 Stainless Steel.

Shapes: Shapes are made to customer's specifications as to dimensions, degree of angle at bends, gages, type of material and length. Special shapes are available - just fax your drawing to our estimating department. Shapes can be made with 1/2" (12.7 mm) hems, turned inside or outside, on long edges.

Lengths: Flashings are usually furnished in 10 ft. (3.048 m) lengths.

(NOTE: Aluminum should not be used as a flashing material in brick masonry construction.)
No. 80 Fiberweb® Thru-Wall Flashing

FIBERWEB® 200

  • Black laminate of polyester film, 20 x 10 fiberglass scrim and a layer of vinyl film.
  • Approved by Army Corps of Engineers Guide Specification CEGS-07600
  • Average 8 mils thick.


FIBERWEB® 300

  • 1/3 mil metal foil laminated between layers of polyester film bonded to a 20 x 10 fiberglass scrim reinforcement.
  • FiberwebÒ 300 has a total average mil thickness of 7 mils.

No. 81 EPDM Thru-Wall Flashing
  • 40-mil EPDM membrane available in a variety of widths by 100 ft lengths.
  • UV and Ozone resistant; products can be left exposed during normal construction delays and can be an exposed building component.
  • No installation temperature restrictions.
  • Easy to detail around corners and angle changes.

Termination Bar: For securing flashing to wall. 1/8" (3.175 mm) thick stainless steel x 1-1/4" (32 mm) wide x 3 ft (915 mm) long with holes 12" (305 mm) o.c.

CONSTRUCTION JOINTS

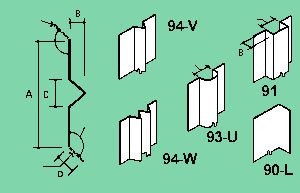

Metal Construction Joints are versatile problem solvers. Use for expansion joints, waterstops, weakness or control joints in concrete or masonry. Also, use in formwork to create reveals and drip edges on formed surfaces of concrete. Furnished in 10 ft (3.048 m) lengths.


Gages and Finishes: Available in 26, 24, 22, 20, 18, and 16 gage Stainless Steel, Mill Galvanized, and 16 oz Copper.


To Order: Made to Order. Specify catalog number, width "A", width of Opening "C", depth of center section "B", width of flanges "D", bend angle, gage, and finish. Optional flanges Type A and B are available for all construction joints.
