SEISMIC VENEER ANCHORS Heckmann Building Products provides a variety of Veneer Anchors, which
conform to the requirements of the Uniform Building Codes for seismic zones.
The code requires the veneer wall to have a continuous wire imbedded in
the mortar joint. This wire is then connected to the veneer anchor, which
is attached to the backup structure. This system also provides greater
stability and safeguards against problems caused by thermal expansion and
contraction. Also, the lateral force distribution is more uniform.
No. 360 L-Type Seismic Anchor: Made to order. Tab holds masonry reinforcement or pencil rod for seismic zone applications. [gage] x [width] x [length] x [bend length] x [steel type] No. 361 Dovetail Seismic Anchor Made to order. Tab holds masonry
reinforcement or pencil rod for seismic zone applications. [gage] x 1 inch
(25 mm) wide x [length from face of concrete] x [steel type]
Heckmann Building Products Inc. |

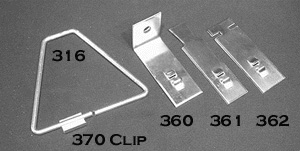

A Seismic Tab Notch is provided for flat anchors up to 1/8" (3.17
mm) thick. Below are examples of the No. 361 Dovetail, No. 362 Channel
Slot, and No. 360 Veneer Seismic Anchors. The Seismic Tab Notch can be
added to any of the flat anchors in this catalog.
No. 370 Seismic Hook Tab: 16 gage clip welded to No. 316 Triangle
Ties, No. 282 Double Pintel Wire Ties, Pos-I-Tie® Wire Ties, No. 314
Tie Clips, or any 3/16" dia. or 1/4" dia. wire tie. Holds masonry reinforcement
or pencil rod for seismic zone applications. Available in Plain, Hotdip
Galvanized, or Stainless Steel.
No. 362 Channel Slot Seismic Anchor Made to order. Tab holds
masonry reinforcement or pencil rod for seismic zone applications. [gage]
x 1-1/4 inches (32 mm) wide x [length from face of channel] x [steel type]
