Brick
Veneer Anchoring Systems
Adjustable Type
Non-Adjustable Type
Heckmann Building Products provides a variety of different brick veneer systems for your anchoring requirements. Steel Specifications STAINLESS STEEL: Stainless Steel provides the greatest level of corrosion resistance in most building environments, and is especially recommended for use with light colored stone subject to staining.
No. 213 Double Pintle Brick Veneer Anchor System: 14 gage backplate made for no insulation, 1" (25 mm), 1-1/2" (38 mm) and 2" (51 mm) insulation in Mill Galvanized, Hot Dip Galvanized, and Stainless Steel. No. 282 Double Pintle Wire Tie:
3/16" dia. (4.76 mm) wire in 3-1/4" (83 mm), 4-1/4" (108 mm), and 5-1/4"
(133 mm) lengths. Pintles are 2-1/2" (63.5 mm) long. Mill Galvanized, Hot
Dip Galvanized, and Stainless Steel.
No. 315-B Weld-On Anchor Straps: 12 gage x 3/4" (19.05 mm) wide x 9" (229 mm) long or 7/8" (22.2 mm) wide x 6-1/2" (165 mm) long. No. 315-C Screw-On Anchor Straps: 12 gage x 3/4" (19.05 mm) wide x 9" (229 mm) long or 7/8" (22.2 mm) wide x 6-1/2" (165 mm) long with two 1/4" dia. holes for attachment to backup. No. 315-D Screw-On Anchor Plate: 12, 14, and 16 gage x 1-1/4" (32 mm) wide x 6" (152 mm) long. No. 186 Corrugated Brick Veneer Anchor No. 187 Corrugated Brick Veneer
Anchor with Hole

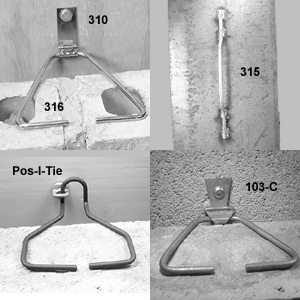

No. 316 Triangle Wire Ties: 3/16" dia. (4.76 mm) wire. Also available in 1/4" dia. (6.35 mm). Closed end is 1" (25.4 mm) wide. Standard Lengths are 3" (76 mm), 4" (102 mm), 5" (127 mm), 7" (178 mm), 9" (229 mm), and 11" (279 mm). No. 310 Hit Clip Anchor: Anchor is 2" (51 mm) long x 3/4" (19 mm) wide x 19 gage spring steel with corrosion resistant finish. Screw hole is 1/4" (6.35 mm) dia. No. 316 Triangle Ties snap into place. Order tie separately, specify size and type of steel required. No. 75 POS-I-TIE®: See individual Sweet's CD Snapshot of the Pos-I-Tie® System. No. 103-C Triangular Wire Veneer
Anchor: 12 gage anchor factory assembled to No. 316 Triangle Wire Ties
(See above for tie sizes). Screw hole is 5/16" (7.94 mm). Available in
Stainless Steel, Hot Dip Galvanized after Fabrication, or Mill Galvanized.
No. 262 Double Eye Rod Anchor: 2-3/4" (70 mm) and 4-3/4" (121 mm) long x 2-1/2" (64 mm) wide x 3/16" (4.76 mm) diameter wire. Available Mill Galvanized, Hot Dip Galvanized, and Stainless Steel. No. 263 Double Pintle Tie:
3-1/4" (83 mm), 4-3/4" (121 mm), and 5-1/2" (140 mm) long with 2-1/2" (64
mm) vertical adjustment. 3/16" (4.76 mm) diameter wire.

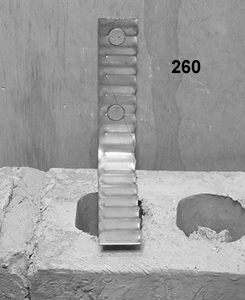

No. 260 Corrugated Wall Tie: 7" (178 mm) long x 7/8" (22 mm) wide x 26, 24, 22, 20, 18, or 16 gage Mill Galvanized Steel. Also available in Hot Dip Galvanized and Stainless Steel, 16 ounce copper, and special sizes. Heckmann Building
Products Inc.
|
No. 315 Weld-On Anchor Rods:
1/4" dia. (6.35 mm) x 9" (229 mm) long or 5" (127 mm) long.
No. 188 Corrugated Brick Veneer
Anchor with Keyhole

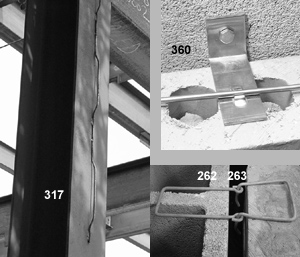

No. 317 Continuous Weld-On
Anchor Rods: 1/4" dia. (6.35
mm) x 8 ft (2.44 m) with six 3/8" (9.53 mm) offsets provide 7-3/4" (197
mm) vertical adjustment and are spaced 16-1/4" (413 mm) o.c.
No. 360 L-Type Seismic Anchor:
Made to order. Tab holds masonry reinforcement or pencil rod for seismic
zone applications. Specify steel type, length, width, bend length, and
hole size with location of tab.
