Trench Gratings for Pre-cast Parking Garages
Standard in Iron finished in Aluminum when specified.

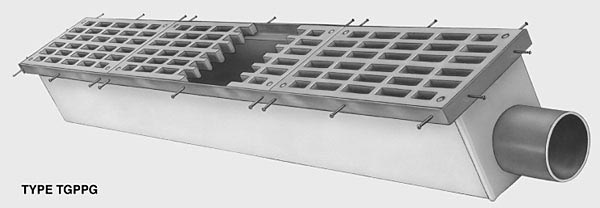

TYPE TGPPG
Iron Grating for pre-cast concrete parking garages. Grating is with a complete water-tight, galvanized steel box connected to drainage system

Type "A" is an illustration on a flat area.

Type "B" is an illustration at the start of the ramp. However, the entire C" area is blocked out in the flat pre-cast tee.

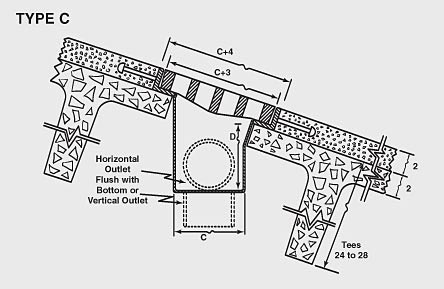

Type "C" is the same grate as type "A" but it is shown in the ramp area. The pan is different from Type "A".

Open area of grate is 50% - 60%. Designed for 32,000 pounds per grate; a factor of safety of 2 for a H20 load.

Specify the camber of the concrete tees when ordering. The camber will be fabricated in the trench assembly.

TGPPG Grating is easy to design and specify for simple and inexpensive installation. Specify blackouts in your pre-cast tees equivalent to "C" plus 1/2". Length of grating plus 1".

All types A - B - C are furnished in lengths from 2 -6" up to 20-0' for a frame section. Assemblies longer than 20-0" require that sections be welded together at the job site.

We see no advantage to sloping the bottoms of the pans. Line wise, the flat bottom pans will fit within the tees more harmoniously and they are less expensive.

WATER FLOW TABLE

Flow Tables are for one inch (1”) if water head.  For two inch (2”) head multiply table figure by 1.25, for three inch (3”) head multiply table figure by 1.5625

Water flow through grates by actual test and by empirical computation.

Where the architect or engineer has a special situation – tell us about it we may be able to work it out for you.
