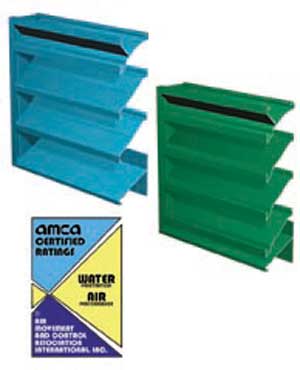

Stationary louvers are available in non-drainable, drainable head, drainable, and dual drainable blade models. Blade types of J and K with blade angles of 30 and 45 degrees. Frame depths in 2, 4, and 6 in.

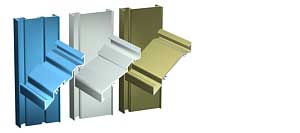

The K Blade louver incorporates an additional offset or "rain hook" in each blade which is intended to provide extra protection against water penetration. Performance of the K Blade Louver is quite similar to J Blade Louvers. Frame depths: ESJ - 2, 4, 6; ESK - 4, 6 in.
The K Blade Louver incorporates an additional offset or "rain hook" in each blade which is intended to provide extra protection against water penetration. Adding a drainable head to K Blade Louvers further improves water penetration protection.
Optional 30 degree blades are also available to maximize free area (EDJ/EDK-430 with 4" frame depth). Frame depths: EDJ - 2, 4, 6; EDK - 4, 6 in.
ESD Drainable Blade Louvers are Greenheck's top performers with outstanding resistance to water penetration. The drainable blade models are the most effective louvers in minimizing water penetration through wall openings. EDD Dual Drainable Louvers are designed with added features to improve water penetration performance over the Drainable Blade design. EHM louvers feature hidden vertical mullions at intermediate section joints providing a continuous blade appearance. Frame depths: ESD - 2, 4, 6; EDD - 4, 6; EHM - 6 in.
Make Greenheck your source for louvers.
When you need to specify louvers, you can be sure Greenheck will have the best solution for your application needs. For more information, about the industry's broadest selection of louvers including a wide range of built-to-order sizes for custom applications, contact your local Greenheck representative or visit us at www.greenheck.com
|
