UNDERHUNG CANOPIES

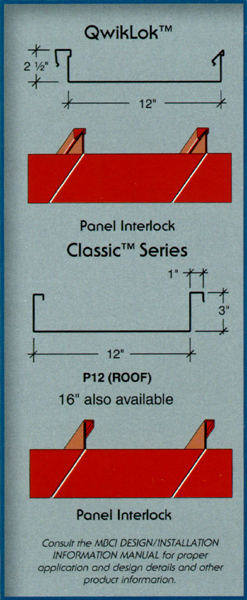

QwikLok™

QwikLok™ provides the basic design element for any type of canopy cover. Easy-to-trim flush surfaces make transitions to conventional material simple, without major concern for creating “special” conditions. Direct the flow of water to any desired drainage point by combining QwikLok™ with the MBCI fascia/gutter. Canopies, walkway covers, and soffits are all in the QwikLok™ design arena. High gloss finish, immense water carrying capacity, and long span characteristics make QwikLok™ today’s most popular choice for any under side application.

CONCEALED FASTENING SYSTEM
The panel is attached to the structure with the MBCI one-step fastening method. One-step fastening requires only one side of the panel to be attached to the structure. The adjoining panel is snap-locked to the first panel, concealing the fastener from view and providing a secure, flush appearance. This proven fastening method creates a positive interlock between panels.

APPLICATION
QwikLok™ is ideal for underhung applications. No more fighting with trying to install two panels at one time. Unlike conventional roofing cover, QwikLok™ can be assembled from the underside of the structure, one panel at a time, producing a flush appearance with no exposed fasteners. Install QwikLok™ over a variety of substructures such as light gauge framing, purlins and girts, structural steel and joists.

Classic™ Series

The Classic™ Series is a time-proven performer! Through the years these panels have been used for roofs, canopies, walkway covers, and soffits. Proven capabilities make this a versatile and valuable design tool.

ROOF-CANOPY
The Classic™ Series creates a clean, flush appearance when used as a canopy system.This series doubles as a superb standing seam roof system.

CONCEALED FASTENING SYSTEM
Panels may be secured to the structure by using clips or expansion fasteners. Both are positive fastening methods that create a secure interlock between panel and structure.

APPLICATION
This versatile panel can be attached to either the top or bottom of the roof structural system whether it is light gauge framing, purlins, girts, structural steel, or joists.

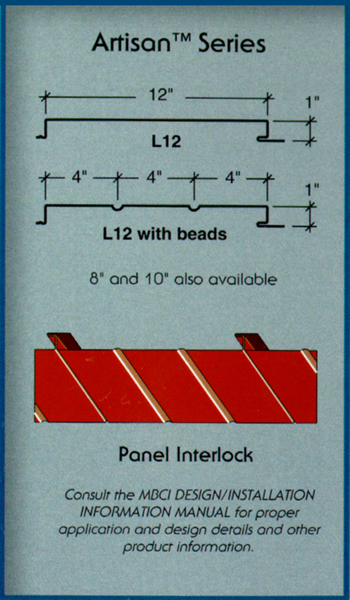

Artisan™ Series
The simplicity of the Artisan™ Series panel is its best design feature. Uniform dimensions and clean appearance allow the designer to plan modules, eliminate complicated pieces, and
follow wall curvatures.

The Artisan™ panel can be vertical, horizontal, perpendicular, or skewed to the building line, allowing the designer multi-dimensional freedom to create.

CONCEALED FASTENING SYSTEM
Artisan™ Series panels use the Positive fastening method and are attached directly to the substructure. The fastener is concealed behind the flush face.

APPLICATION
The Artisan™ panels are used for soffits and interior liners. These panels can be attached to the MBCI LiteFrame™ system or waterproofed, solid substructure.
