The Composite Wall System is pre-engineered to accommodate FW or 7.2 panels as exterior skins with IL or ILM panel interior liners.


FW, IL AND ILM Panels

ARCHITECTURAL/INDUSTRIAL WALL & LINER SYSTEMS
These concealed fastener wall and liner panels offer an attractive, flat appearance for architectural, commercial and industrial markets. The heavy gauge offering of each panel available in 18, 20, 22, and 24 gauge provides for large spanning capabilities particularly in composite wall applications.

AIR INFILTRATION AND WATER PENETRATION
The FW panel has been tested by a certified independent laboratory in accordance with ASTM test procedures for Air Infiltration and Water Penetration at the sidelap. Test results show no air leakage at 1.57PSF and no water penetration at 6.24PSF differential pressure.



APPLICATION

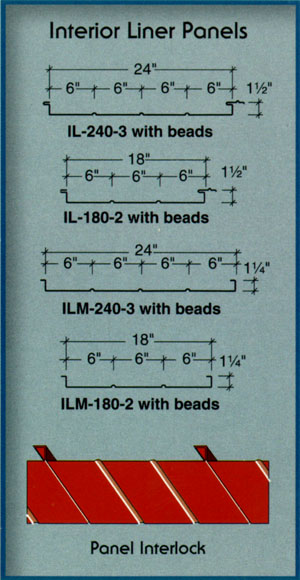

The FW Panel can be used in a single skin application or as a component of a composite wall system. The IL Panel profiles allow for installation as the liner of a composite wall system or, installed to the inside girts of a building, as a concealed fastener interior liner. The ILM liners do not have the interlocking side joint feature of the IL panel and are used as the interior liner in a field assembled system only. The products are offered with “face beads” and/or embossing to minimize the potential for oil canning.
